Instant Insight into
Building Energy Loss
Thermal Imaging Solution for the Building Industry
Overview
Buildings are the foundation of urban infrastructure and public living safety. With increasing service life and evolving functional requirements, concealed defects such as hollowing or detachment of external insulation layers, window sealing failures, wall moisture intrusion, and termite infestation have become “invisible threats” to building safety and living quality. Traditional inspection methods rely on visual assessment, tapping tests, and core drilling. These approaches are time-consuming, labor-intensive, and often cause damage to building structures, while still failing to detect deep or concealed defects.
Thermal imaging technology enables precise detection of subtle temperature differences in building envelopes. It visualizes hidden defects such as water leakage points, insulation voids, and termite activity inside structures. This allows true “inside-out” inspection, providing scientific support for building condition assessment, safety risk identification, and energy efficiency renovation.
Thermal imaging technology enables precise detection of subtle temperature differences in building envelopes. It visualizes hidden defects such as water leakage points, insulation voids, and termite activity inside structures. This allows true “inside-out” inspection, providing scientific support for building condition assessment, safety risk identification, and energy efficiency renovation.
External Wall Insulation Inspection
Background
External wall insulation is an effective building energy-saving technology. However, influenced by construction quality, environmental conditions, and service life, defects such as cracking, hollowing, and detachment may occur over time. These issues not only significantly reduce the building’s thermal insulation performance and energy efficiency, but also pose a direct safety risk to pedestrians due to potential detachment of facade materials.
Pain Points
- Traditional inspection relies on manual visual assessment and tapping tests, making it difficult to detect deep insulation defects.
- Inspection of high-rise building facades requires scaffolding or suspended platforms, resulting in high safety risks and significant costs.
- Internal insulation defects cannot be identified through visual inspection.
.jpeg)
.jpeg)
Solution

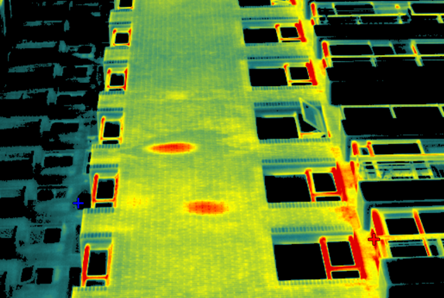

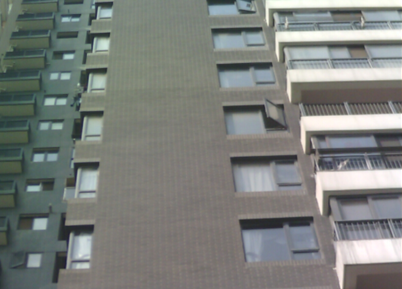

Handheld thermal cameras are used to perform long-distance infrared temperature inspection of building facades from ground level. They accurately capture subtle temperature differences across walls. When defects such as hollowing occur in external insulation systems, their thermal conductivity differs significantly from intact areas, resulting in distinct color patterns on thermal images that enable precise localization of hidden defects. Inspection should be performed during periods with sufficient solar radiation or significant indoor-outdoor temperature differences to achieve optimal imaging results.
Non-contact, non-destructive inspection: No scaffolding required, enabling ground-based inspection.
Efficient and convenient: A single operator with one device can rapidly scan the entire building facade.
Precise localization: Thermal images clearly reveal the location and extent of insulation defects, providing accurate guidance for remediation.
Window and Door Airtightness Inspection
Background
Windows and doors are one of the weakest points in the airtightness of the building envelope. Poor sealing performance can lead to significant energy loss, causing cold air infiltration in winter and cool air leakage in summer. This not only increases heating and cooling energy consumption but also reduces indoor thermal comfort. With continuously improving building energy efficiency standards, airtightness inspection has become an essential part of building quality acceptance and energy performance evaluation.
Pain Points
- Air leakage is invisible to the naked eye, and conventional inspection methods are inefficient.
- The large number of windows and doors makes individual inspection time-consuming and labor-intensive.
- Sealing defects are often hidden and difficult to accurately locate.
.jpeg)
.jpeg)

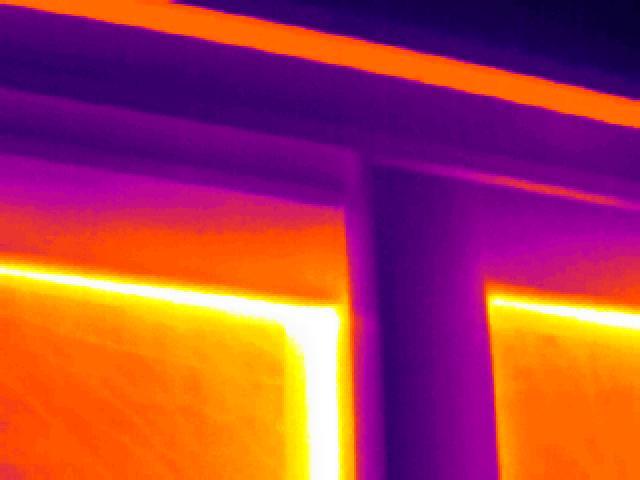

Solution

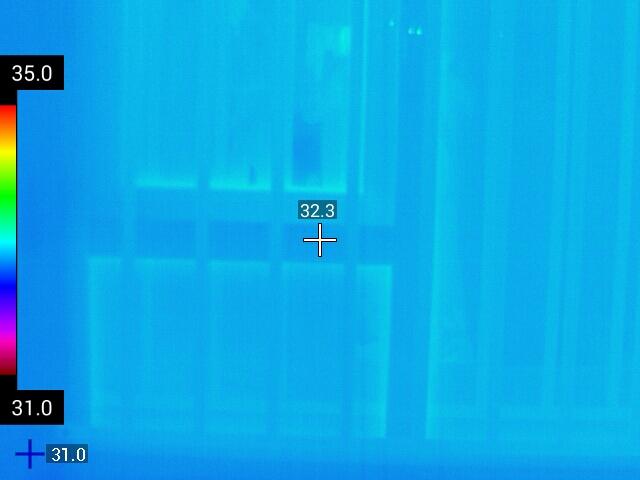

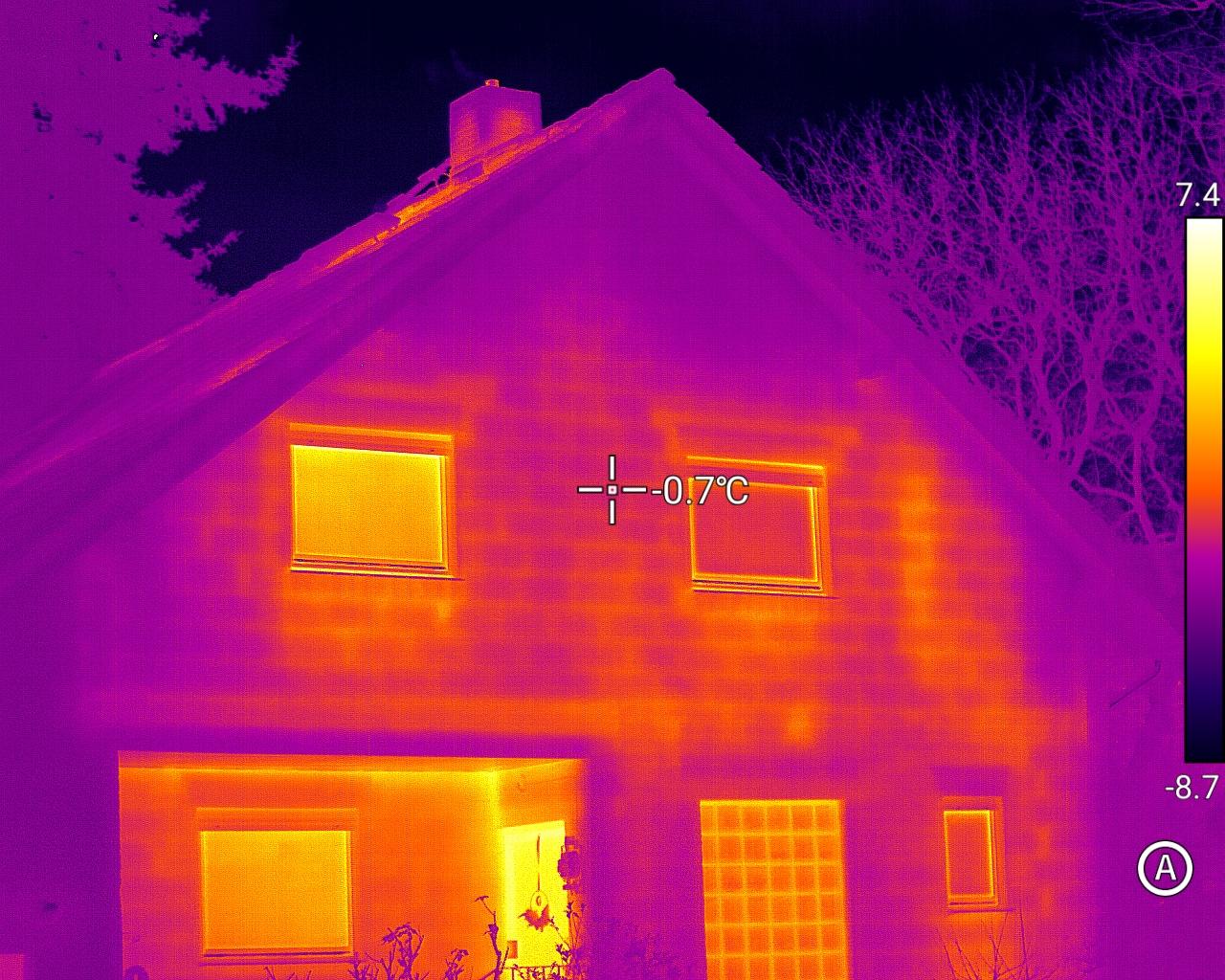

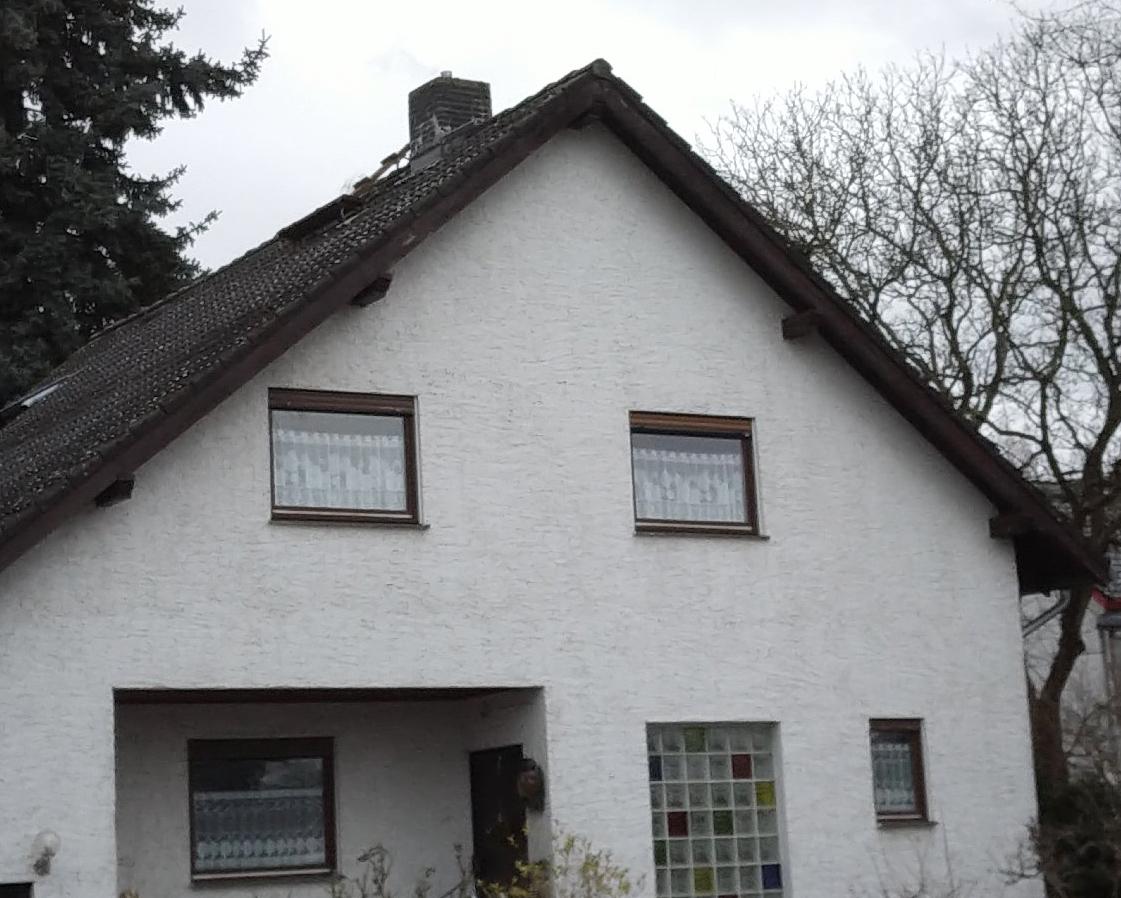

Under indoor-outdoor temperature differences (e.g., during winter heating or summer air-conditioning operation), areas with poor sealing exhibit distinct thermal variations due to air leakage. Thermal cameras can quickly capture these temperature differences and accurately locate leakage points. When combined with the pressure differential method, the overall airtightness performance of windows and doors can be further evaluated.
Rapid localization: Thermal images visually reveal air leakage areas, eliminating the need for point-by-point inspection.
Improved energy efficiency: Accurate sealing repairs reduce building energy consumption.
Enhanced indoor comfort: Eliminates cold air infiltration and improves indoor living quality.
Wall Leakage Inspection
Background
Wall leakage is one of the most common quality issues in residential construction. Water infiltration can lead to material deterioration and reinforcement corrosion, seriously compromising structural safety and reducing the service life of buildings.
Pain Points
- Leakage points are concealed within walls and cannot be identified through visual inspection.
- Traditional excavation inspection damages wall structures and comes with high costs.
- Large-area facade leakage inspection is highly inefficient.
.jpeg)
.jpeg)

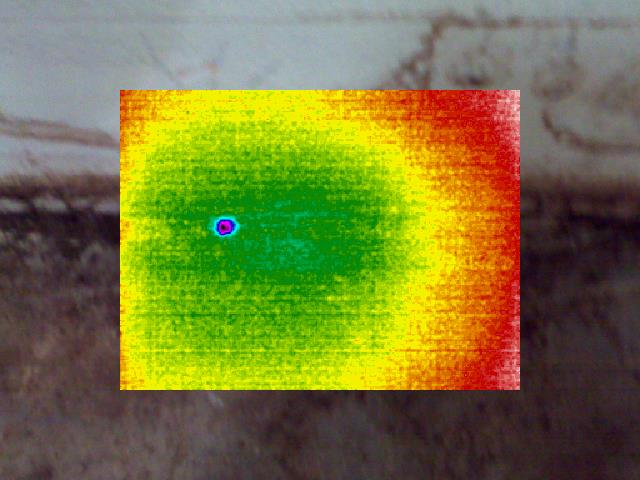

Solution

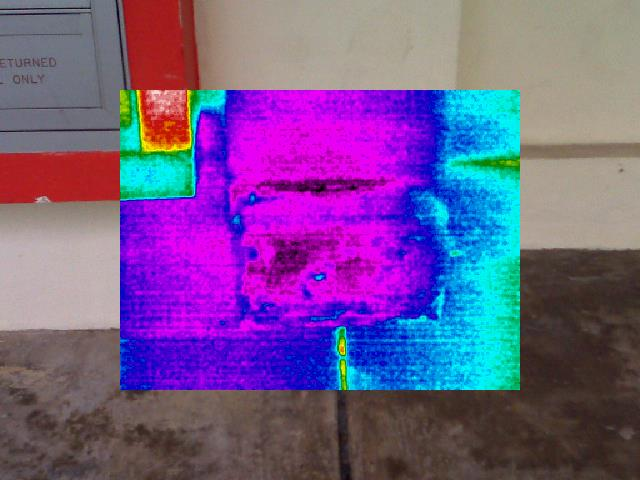

Handheld thermal cameras are used for inspection. Moist areas exhibit distinct thermal characteristics compared to dry wall surfaces due to evaporative cooling. Under sunny conditions, leakage areas show a different rate of temperature change compared to intact walls. In addition, a before-and-after water spray comparison method can be used to accurately identify leakage points.
Non-destructive inspection: Accurately locates leakage points without damaging wall structures.
High efficiency and precision: Enables rapid large-area scanning with clear identification of leakage boundaries.
Scientific assessment: Thermal images and data can be archived to support repair planning and decision-making.
Termite Infestation Inspection
Background
Termites are often referred to as “invisible destroyers” of building structures, posing a serious threat particularly to timber structures, historic buildings, libraries, and archives. Termites typically build nests inside walls and beneath floors, with highly concealed activity and strong destructive capability. By the time damage becomes visible to the naked eye, irreversible structural deterioration has often already occurred.
Pain Points
- Termite activity is completely concealed within walls and cannot be detected by visual inspection.
- Traditional inspection methods require damaging walls or flooring, resulting in high cost and disruption.
- Large-scale, building-by-building inspections are highly inefficient across large building complexes
Solution
Handheld thermal cameras are used to perform infrared temperature inspection of building walls, floors, and ceilings. During their activity, termites generate heat and alter the thermal conductivity of wood materials, resulting in localized temperature anomalies on thermal images. Thermal imaging clearly visualizes these abnormal areas, enabling maintenance personnel to quickly identify and locate termite activity zones.
Non-destructive inspection: Quickly identifies termite activity areas without damaging walls or floors.
Rapid large-area screening: More efficient and faster than traditional manual inspection methods.
Assisted assessment: The degree of temperature anomalies can indicate the extent of termite activity.
External Wall Hollowing Inspection
Background
External wall hollowing refers to localized detachment between the facade finishing material and the underlying wall due to poor bonding. This defect not only significantly increases the risk of facade material detachment, posing a safety hazard to pedestrians, but also reduces waterproofing performance and may lead to a series of secondary issues such as wall leakage.
Pain Points
- Early-stage hollowing defects are not visible to the naked eye.
- Traditional tapping inspection is inefficient and requires point-by-point checking.
- Hollowing defects are widely distributed and difficult to achieve full coverage.
Solution
Handheld thermal cameras are used to scan building facades from ground level. Hollowing areas contain air gaps that impede heat transfer. Under solar radiation, these regions exhibit temperature differences compared to intact wall surfaces. Thermal imaging can accurately capture these thermal variations, visually present the location and severity of hollowing defects, and precisely mark areas of damage or detachment.
Early detection: Identifies hollowing defects at an early stage, helping prevent facade detachment incidents.
Comprehensive coverage: Ground-based multi-angle scanning ensures no inspection blind spots.
Data-driven assessment: Thermal images and location data can be archived to support scientific maintenance decision-making.
