50Hz-Unprecedented Real-time
Temperature Data Update Speed

Intelligent Thermal Camera

Overview Specs Features Specification Downloads Media What's in the Box Optional Accessories

Overview

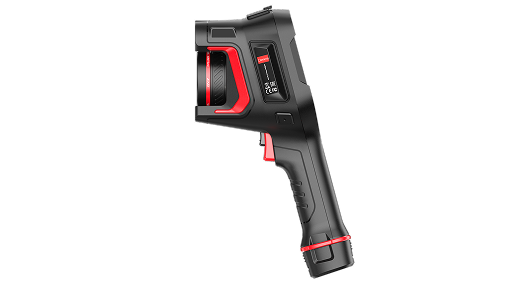

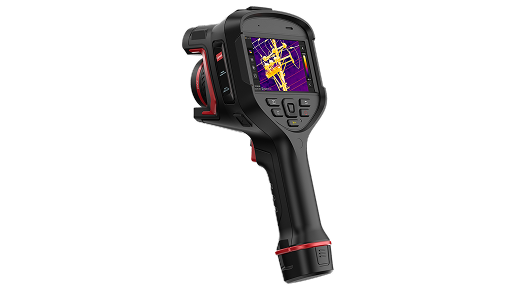

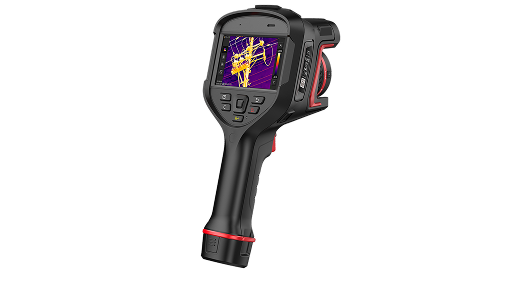

High-Precision Hammer-Style Infrared Camera is specifically designed for industrial inspections and electrical grid maintenance. Equipped with a proprietary self-developed high-sensitivity detector (NETD <15mK, 640×480 resolution), its 50Hz high frame rate and wide temperature measurement range ensure precise capture of abnormal heating points. Equipped with a single-lens dual-FOV design, it instantly switches between wide-angle and narrow-angle views without lens changes. This enables seamless adaptation to complex scenarios, efficiently handling both long-distance inspections and close-range temperature measurements.

H6S

640x480 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

H4S

480×360 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

H3+S

384×288 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

H3S

320×240 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

H2S

256×192 IR Resolution
25°+15°、25°+45°FOV
50Hz Frame Rate
15mK NETD

640x480 IR Resolution
25°+15°、25°+45° FOV
50Hz Frame Rate
-40℃~2000℃ Measurement Range

480x360 IR Resolution
25°+15°、25°+45° FOV
50Hz Frame Rate
-40℃~2000℃ Measurement Range

H3+

384x288 IR Resolution
25°+15°、25°+45° FOV
50Hz Frame Rate
-40℃~2000℃ Measurement Range

320x240 IR Resolution
25°+15°、25°+45° FOV
50Hz Frame Rate
-40℃~2000℃ Measurement Range

256x192 IR Resolution
25°+15°、25°+45° FOV
50Hz Frame Rate
-40℃~2000℃ Measurement Range

Complete ApexVision S1 System Architecture

Guide's next-generation thermal imaging solution is engineered to elevate the infrared imaging performance of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

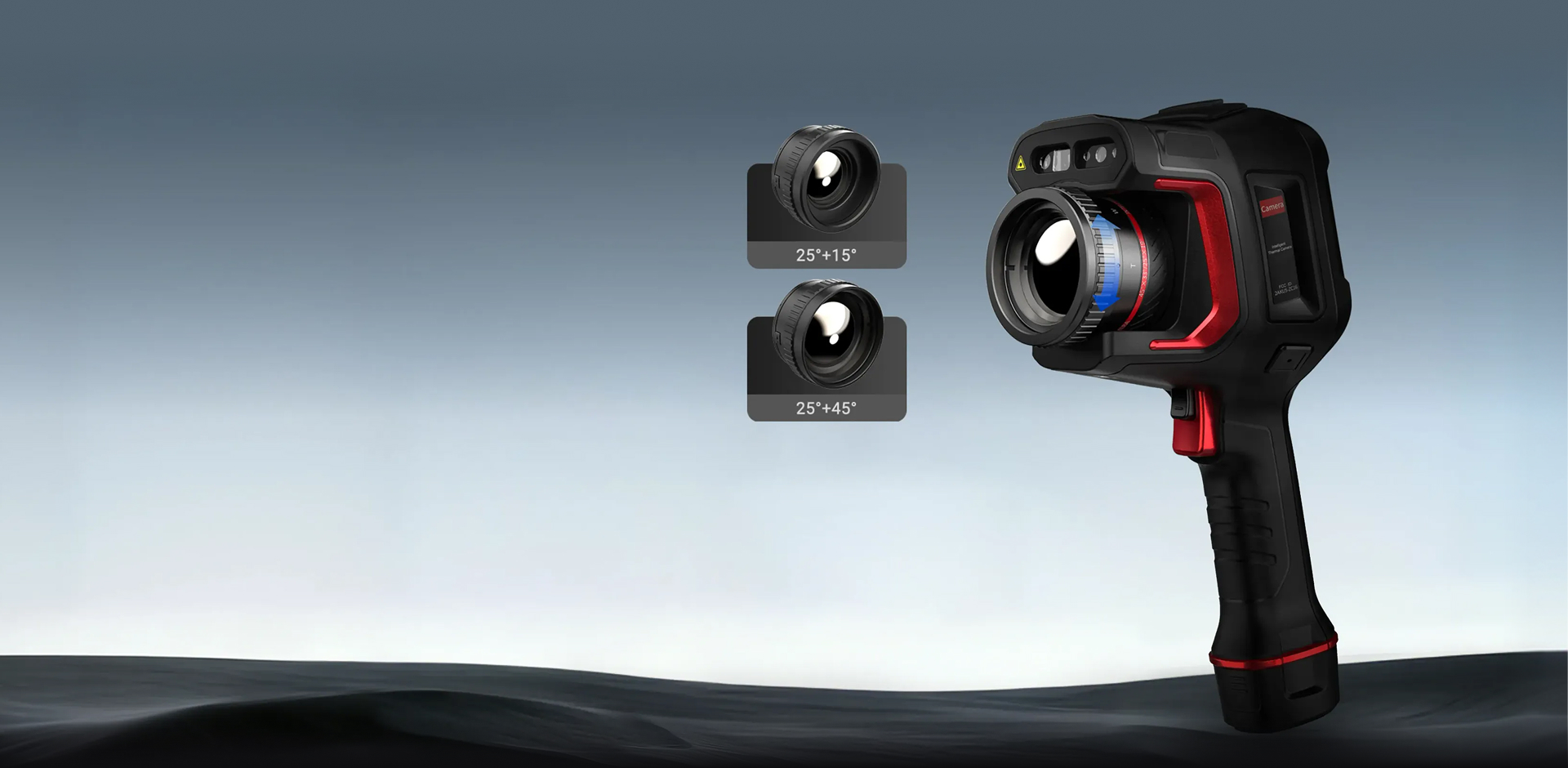

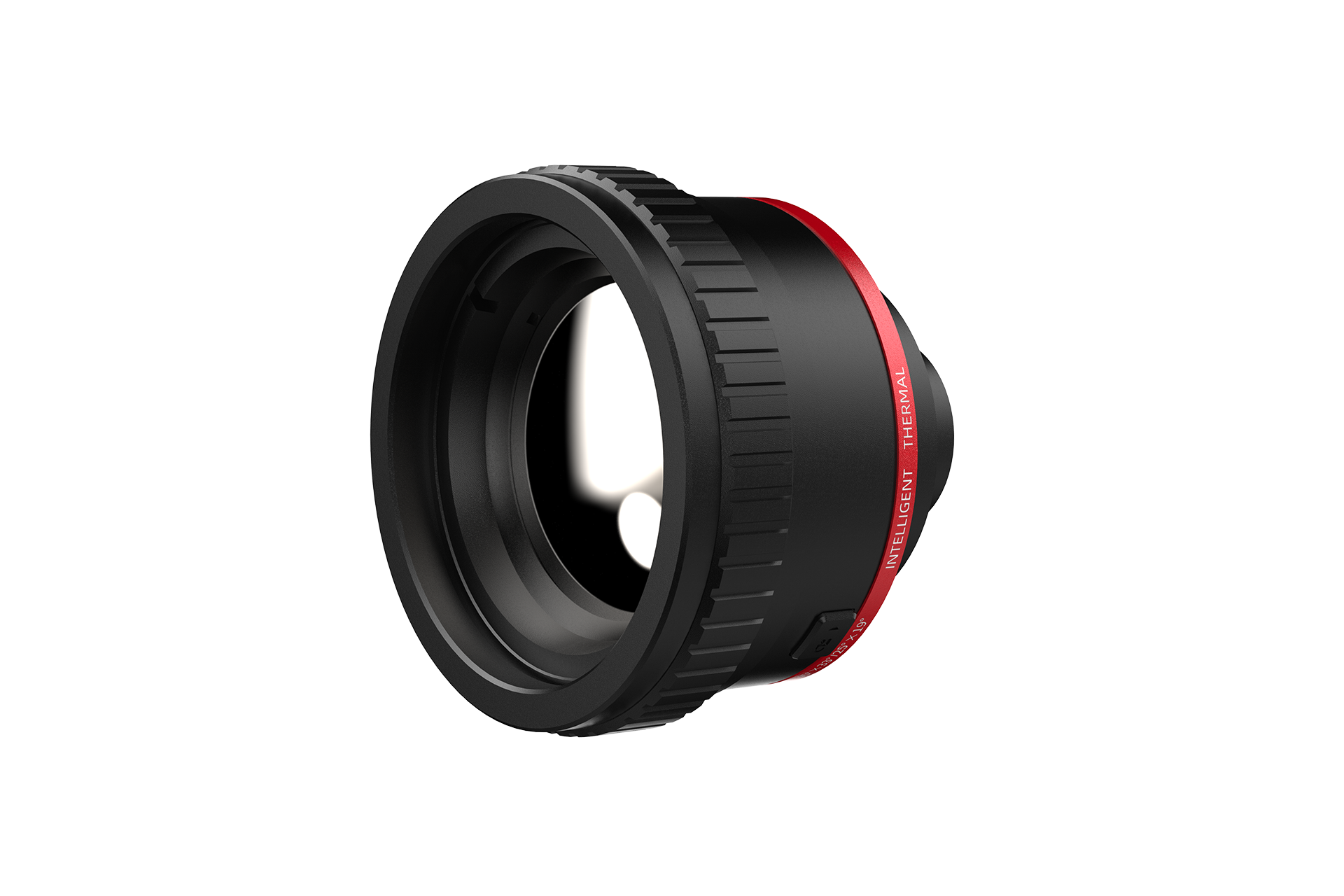

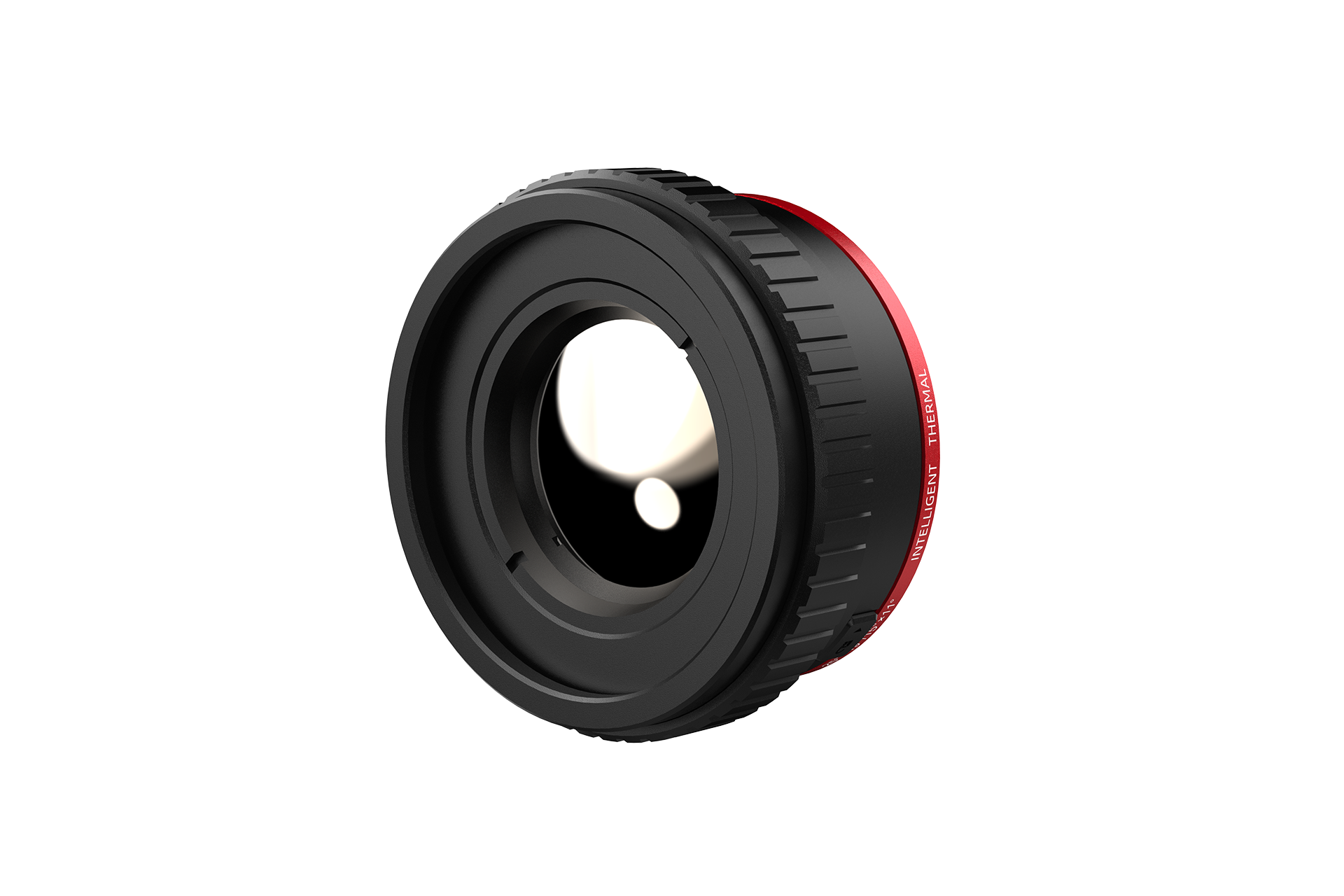

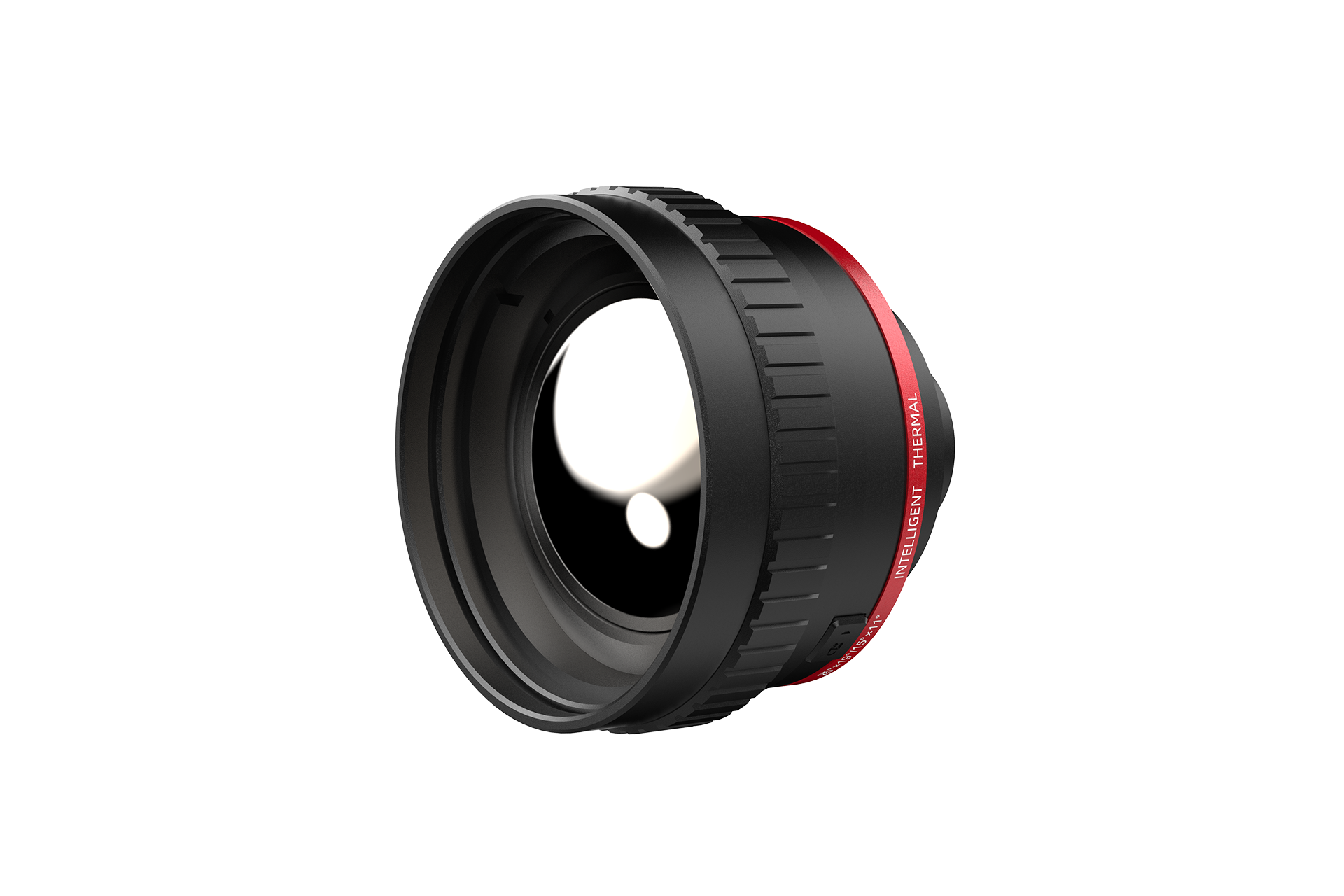

TwinView DFoV Lens

Switch seamlessly between long-range scanning and close-range temperature measurement without lens changes-efficiently tackling diverse scenarios with unmatched versatility.

50Hz High Frame Rate

50Hz frame rate captures thermal dynamics instantly, ensuring zero missed detections in industrial inspections.

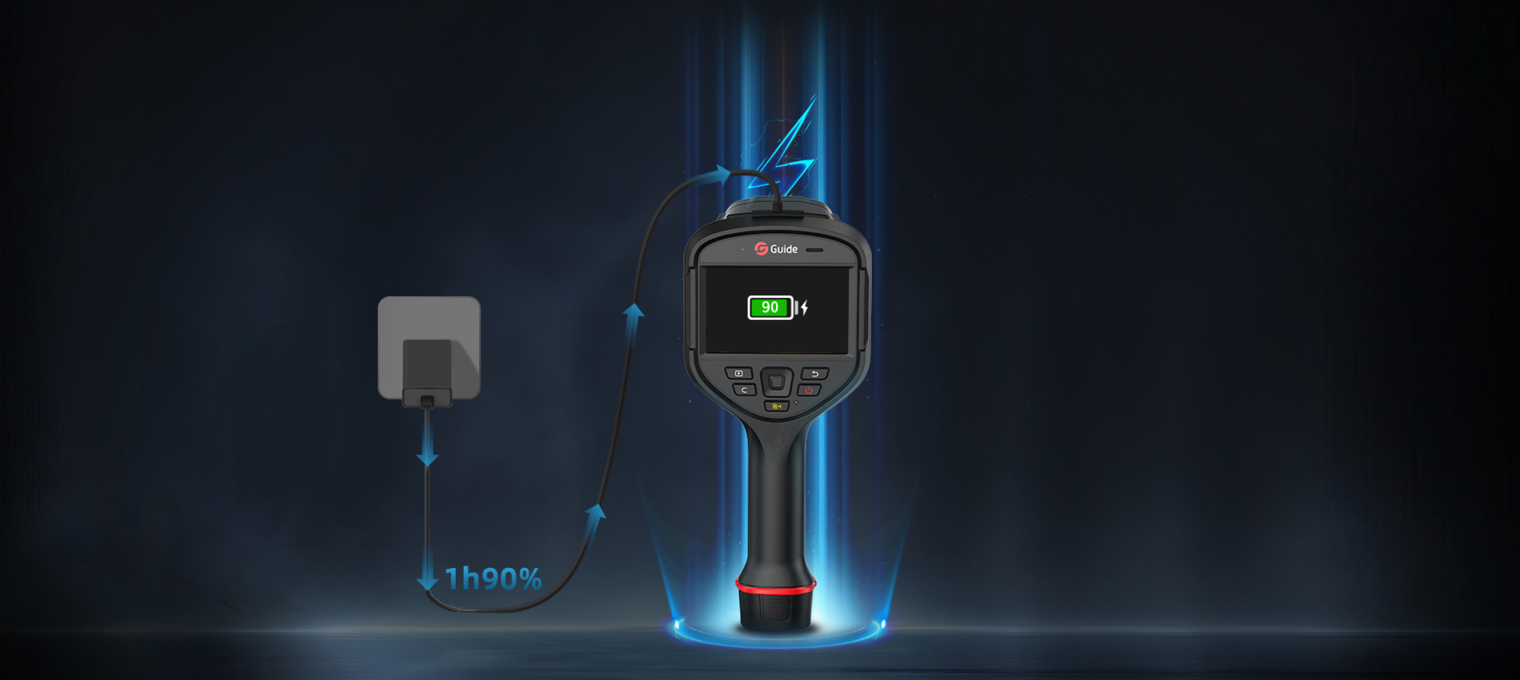

90% Charge in 1 Hour

Charge to 90% in 1 hour, minimizing downtime for critical missions.

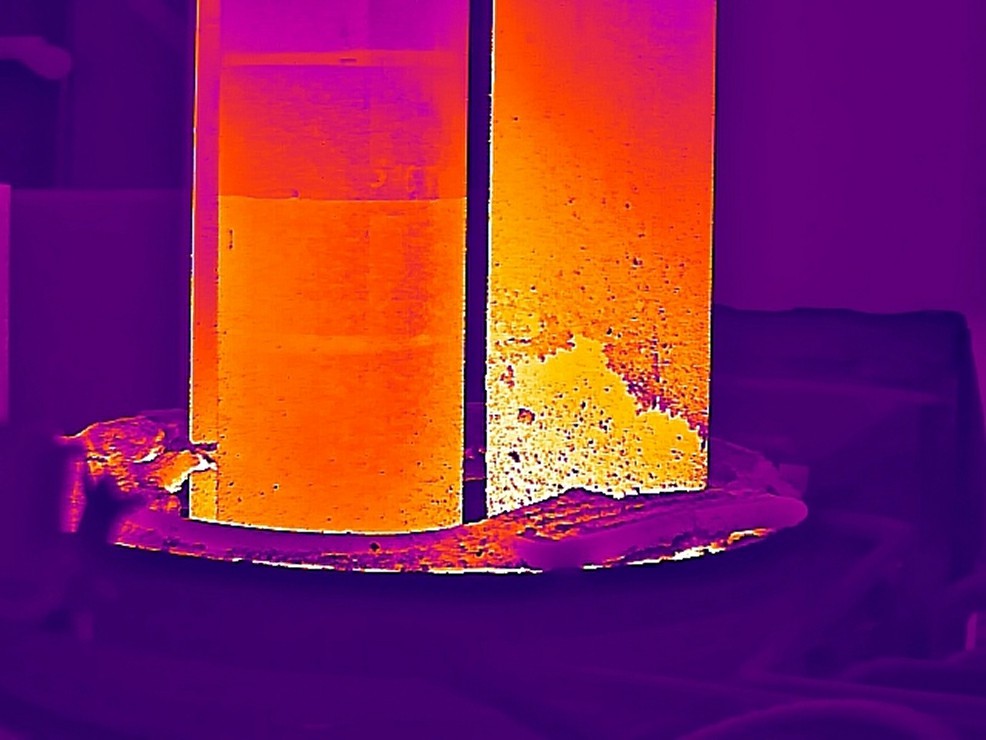

2000℃ Ultra-High Temp

Covers -40℃ to 2000℃, delivering accuracy from freezing cold to molten furnaces, ensuring error-free measurements in environments like kilns and reactors.

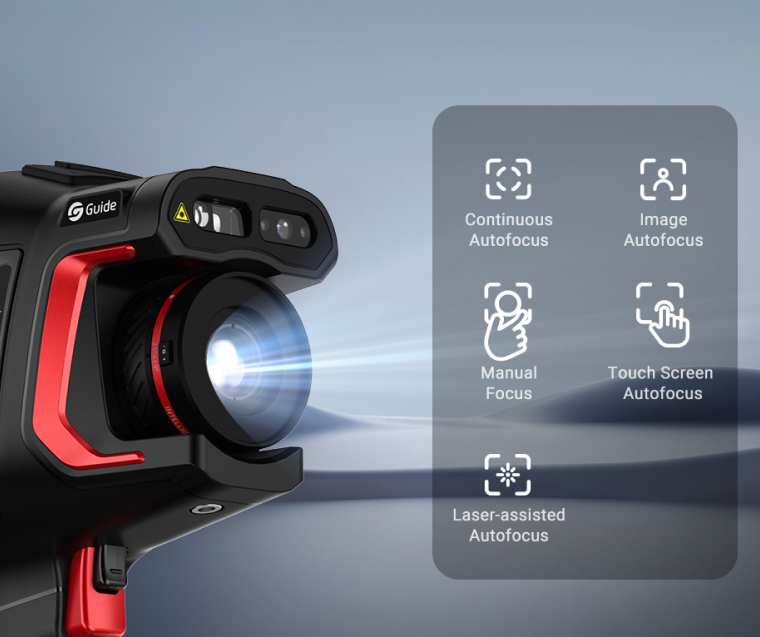

5 Focus Modes

5 focus modes and rapid focus system boost success rates by 90% in complex scenarios.

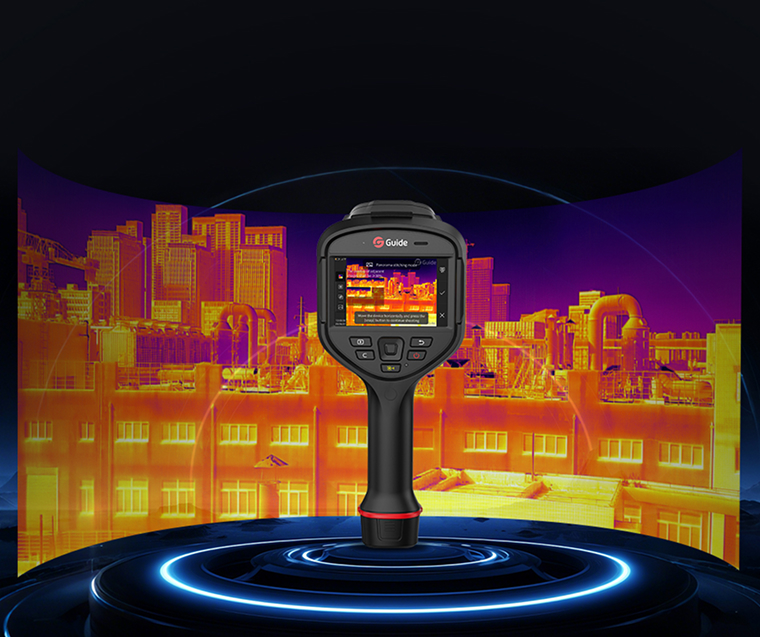

PerIRVision Panoramic Stitching

AI-powered stitching improves large-area thermal scanning efficiency by 80% for substations, buildings, and more.

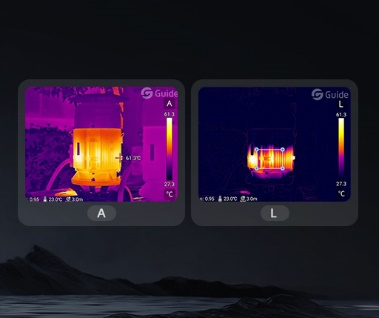

Local Dimming

Features 4 LevelSpan modes (A, M, S, L), where mode L enables real-time target framing. Touch to move the region, dynamically enhancing contrast in focused areas while highlighting potential anomalies.

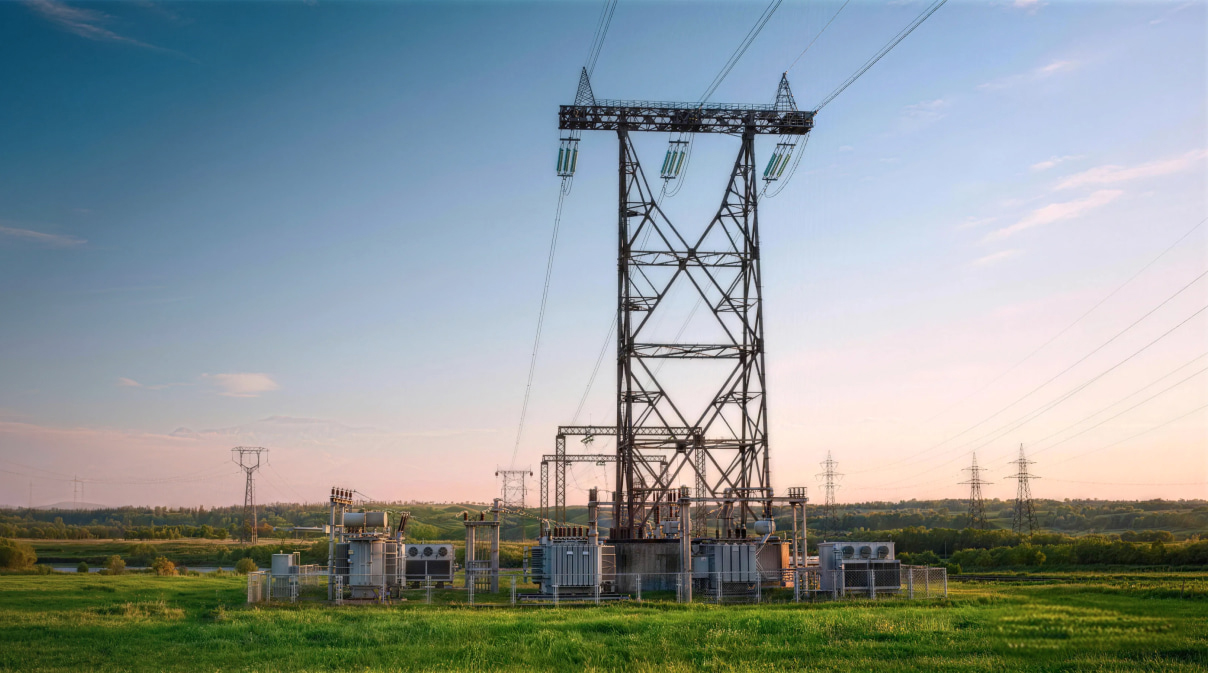

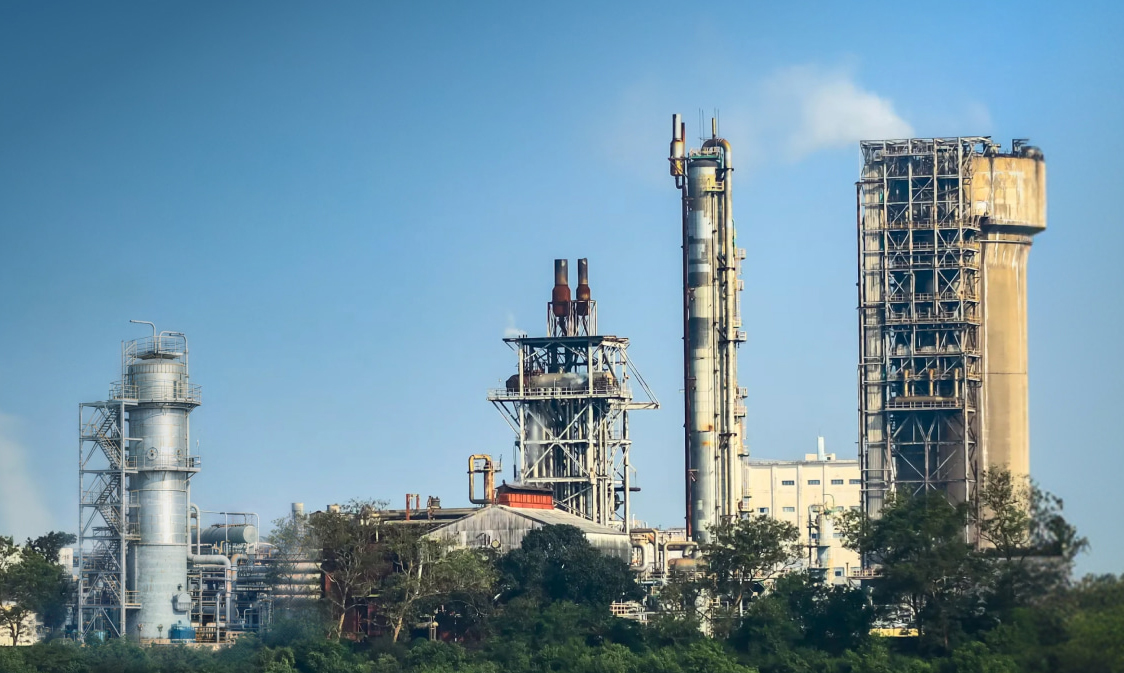

Applications
