Acoustic with Thermal,
All-in-One

Acoustic & Thermal Imaging Camera

Overview Specs Features Specification Downloads Media What's in the Box Accessories

Overview

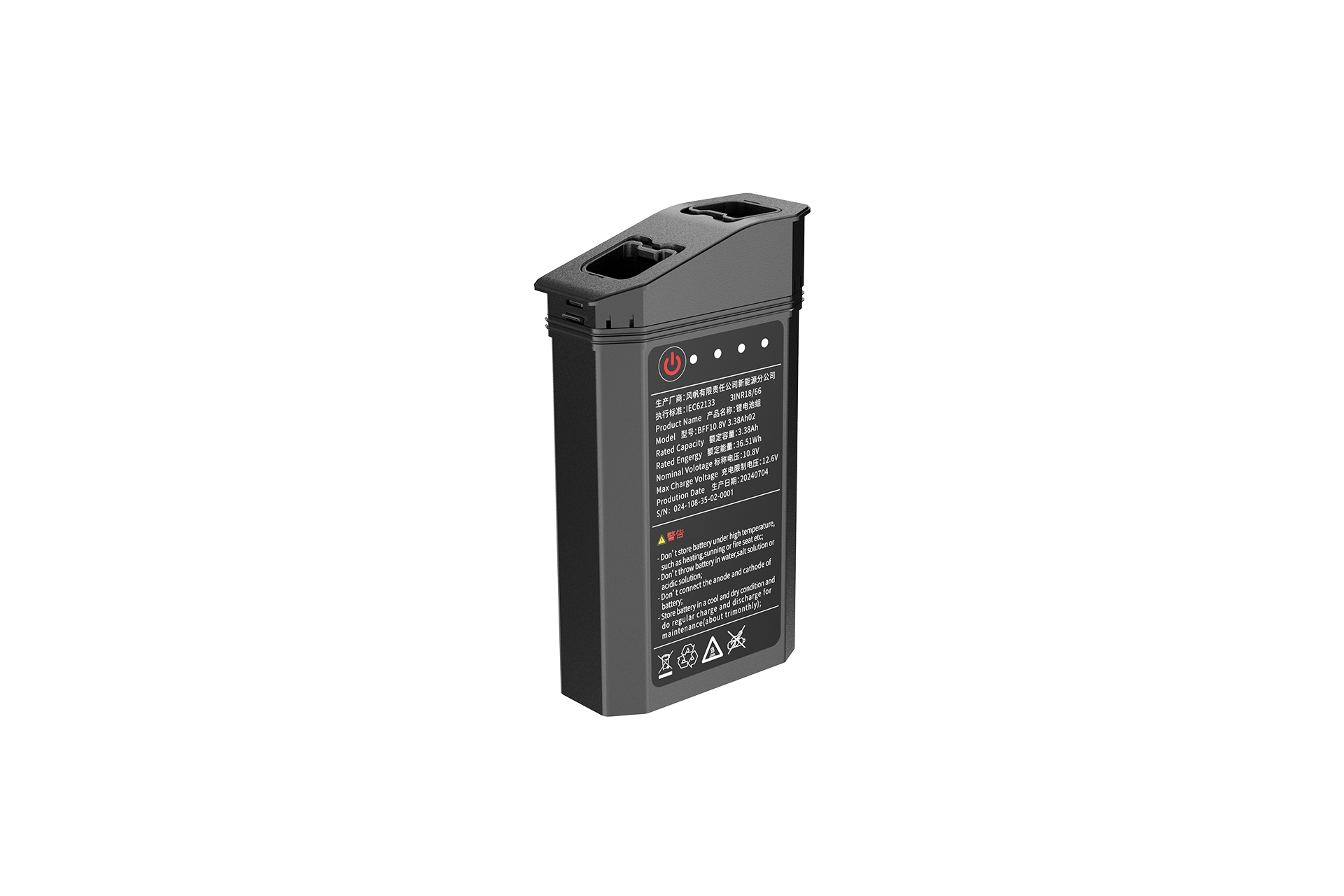

FA Series acoustic & thermal imaging camera deeply integrates acoustic imaging and thermal imaging technologies, offering efficient and detection solutions for industries. It is equipped with 128 high-precision microphones, 640×512 infrared detector, ultra-large 10.1-inch touchscreen, and the internal and external battery solution. FA Series is designed to quickly detect temperature anomalies, locate gas leaks and identify partial discharge, offering efficient detection solutions for industries such as power, manufacturing, and petrochemicals.

FA611S

128 Low-noise MEMS Microphones Microphone Array
0 kHz to 65 kHz, Adjustable Range Bandwidth
10.1'' LCD, Touch Screen, 1920×1200 Display Screen
640×512@12μm Infrared Resolution

Complete ApexVision S1 System Architecture

Guide next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

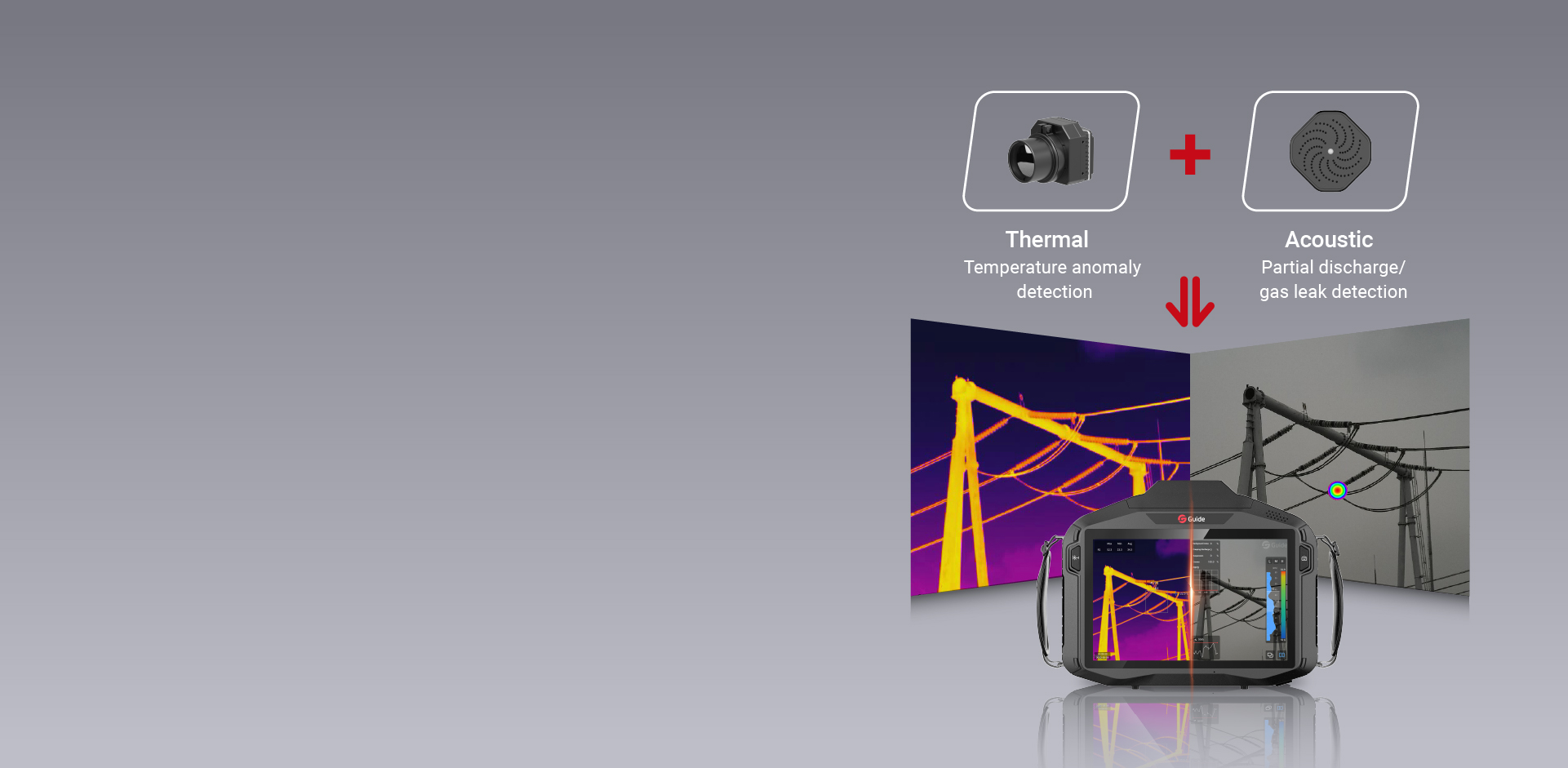

Acoustic & Thermal Imaging

Thermal（Temperature anomaly detection）+Acoustic（Partial discharge/ gas leak detection）

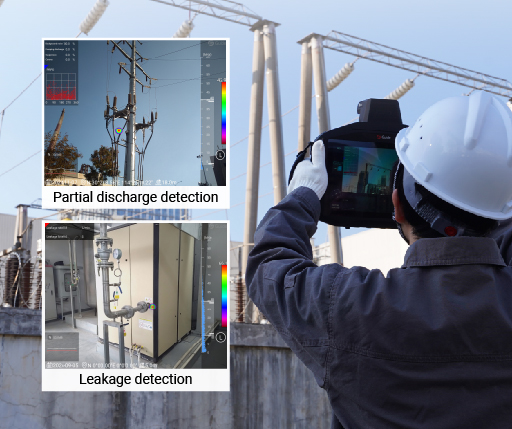

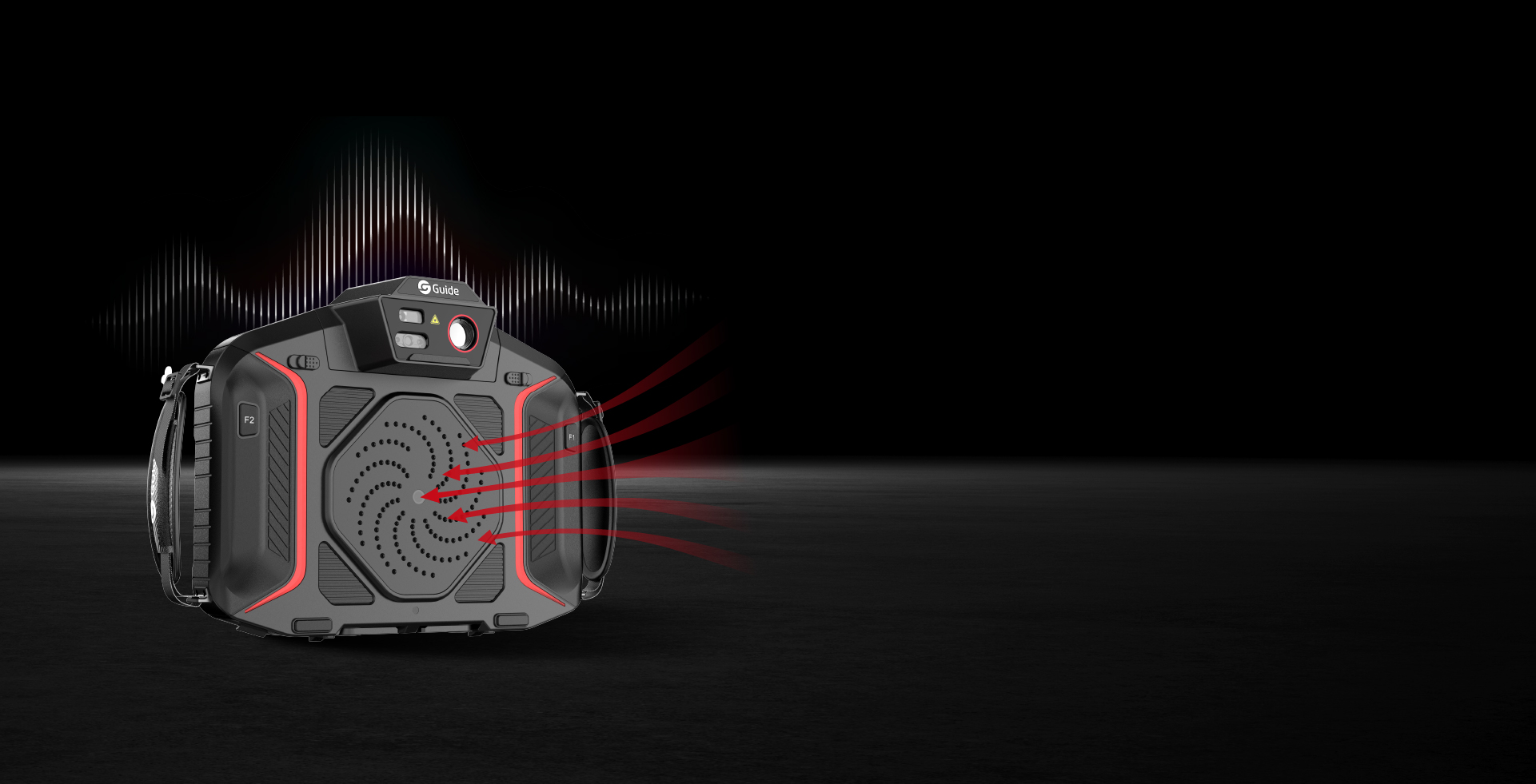

Acoustic Fault Localization

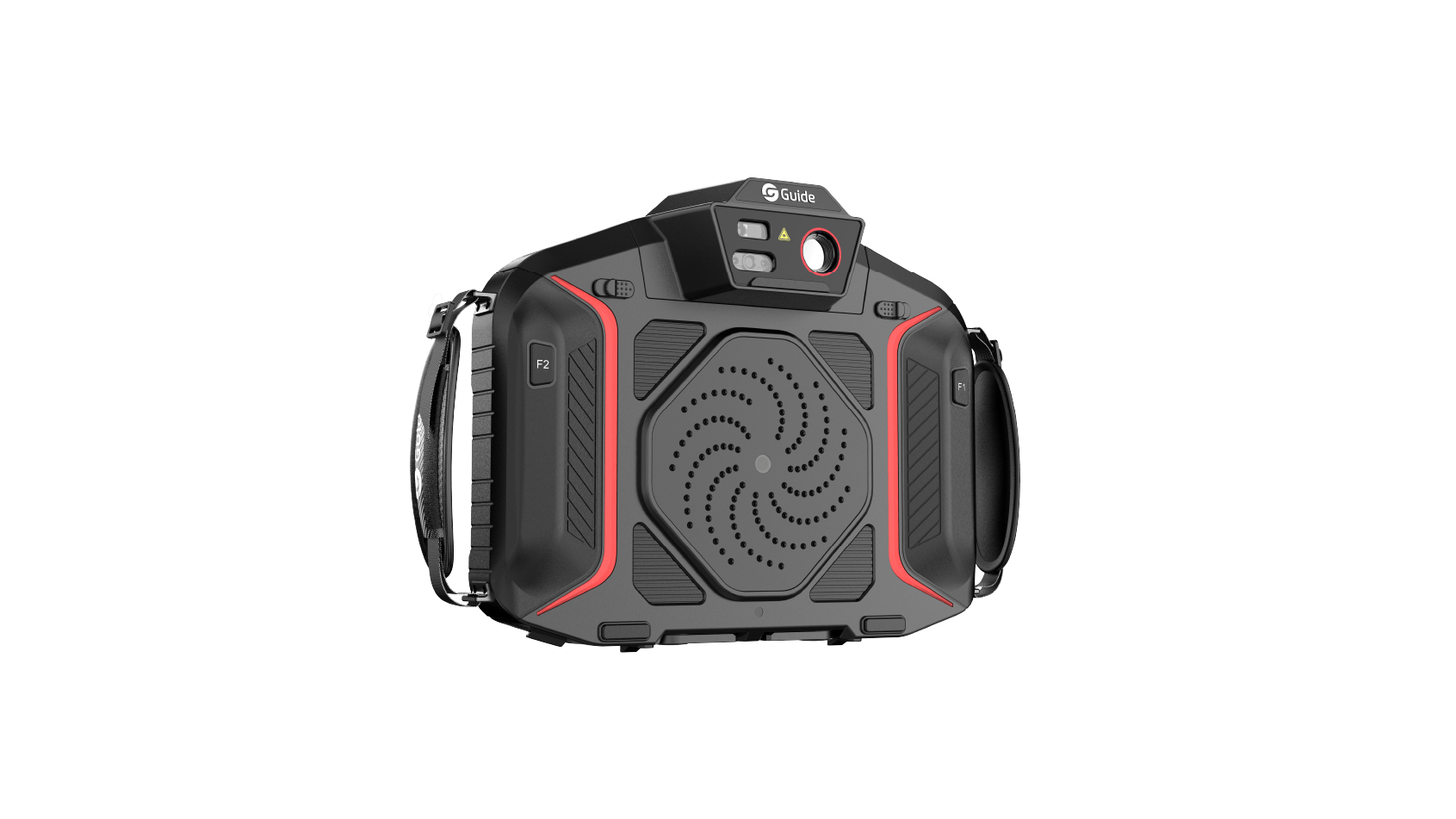

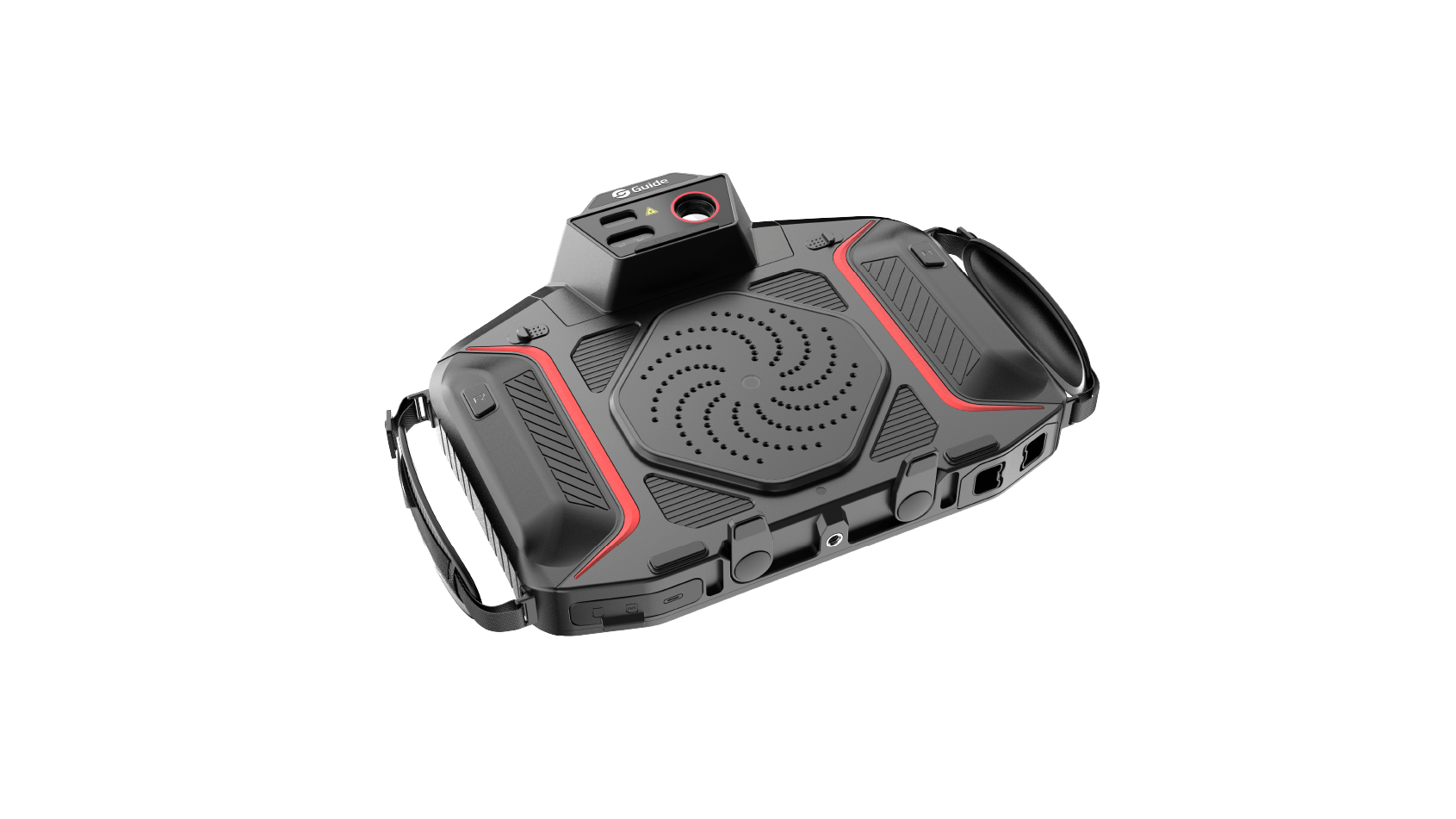

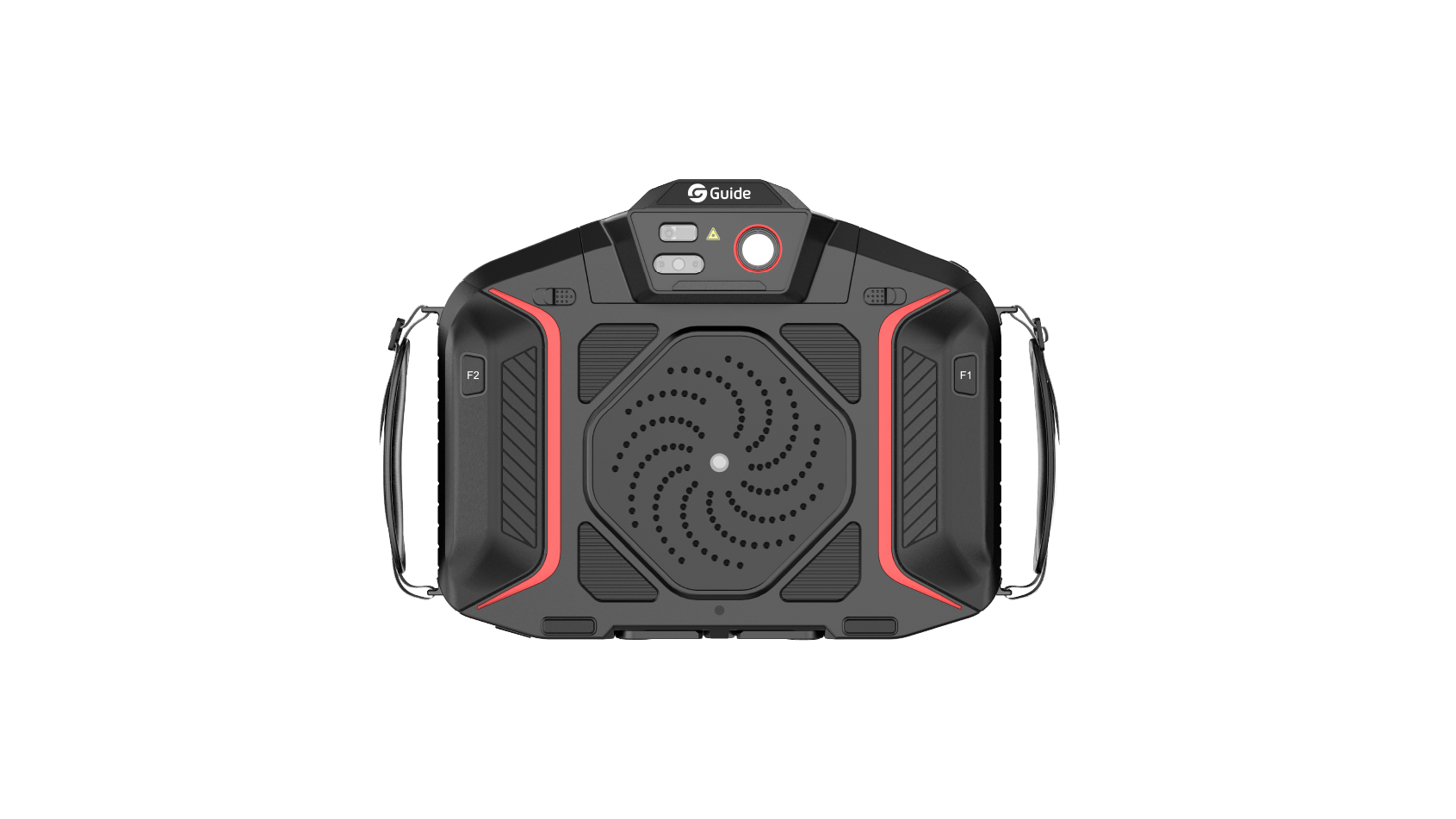

Equipped with 128 high-precision MEMS microphones in a spiral array, FA Series delivers highly sensitive acoustic detection, accurately capturing sound sources for precise detection of partial discharge and gas leak.

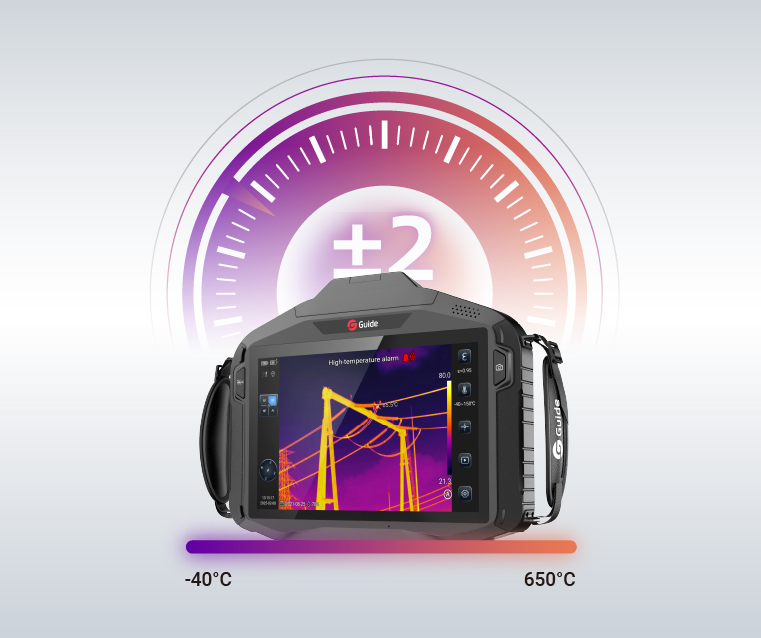

Abnormal Temperature Alarm

Equipped with a 640×512@12μm high-sensitivity infrared detector, FA Series responds quickly to temperature changes with high measurement accuracy. It can rapidly identify abnormal temperature areas and provide crystal-clear thermal imaging.

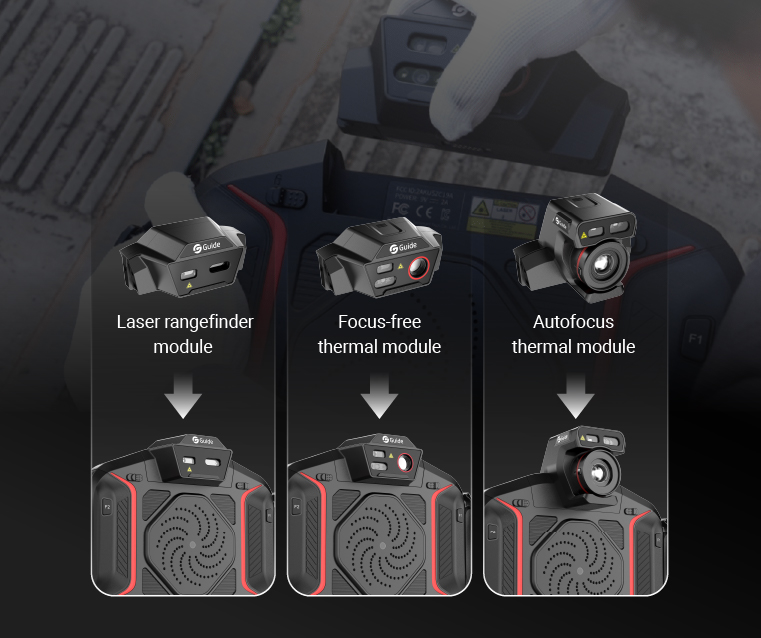

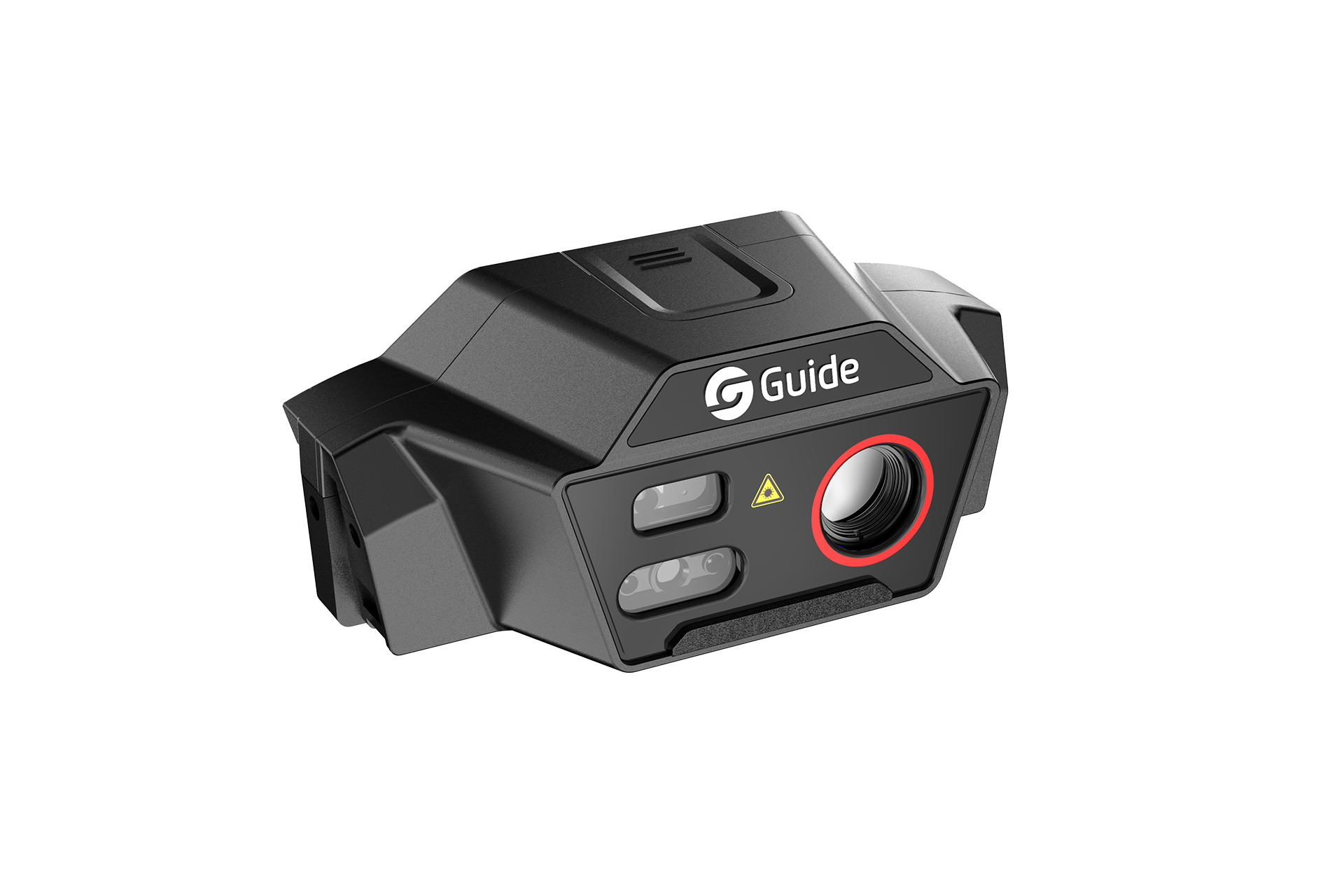

Modular Lens Design

FA Series utilizes an industry-first modular lens design that supports hot-swapping and multiple configurations. Users can easily replace application-specific modules, improving efficiency in inspection tasks.

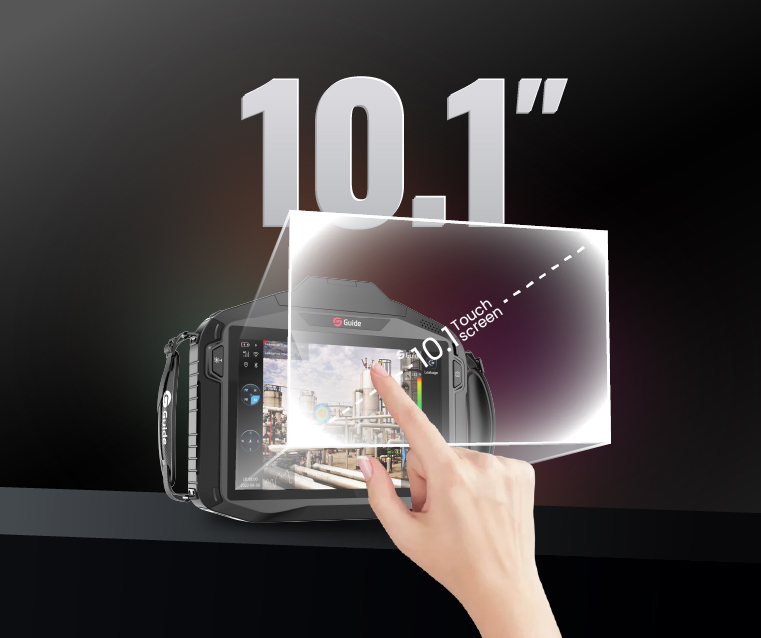

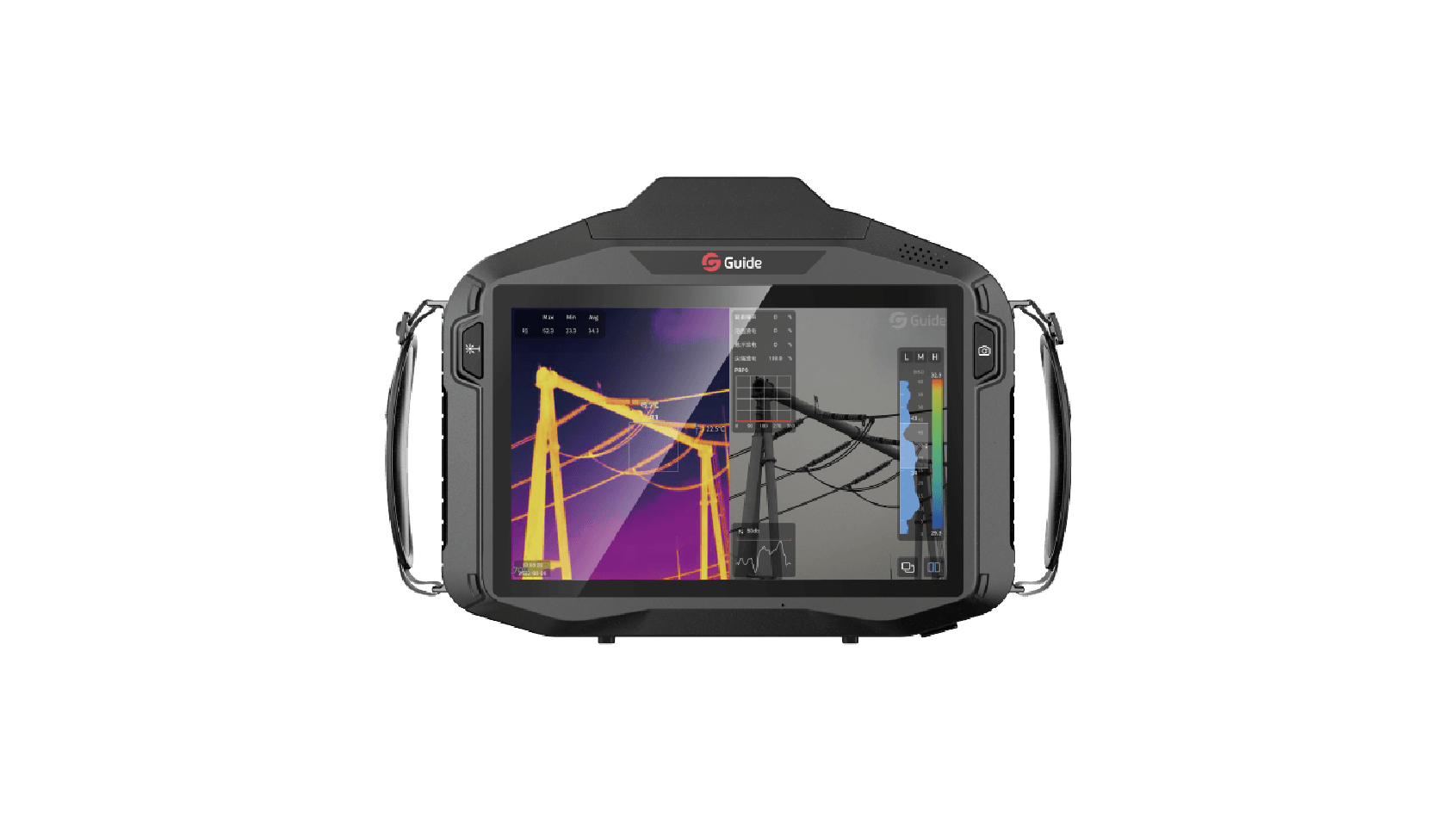

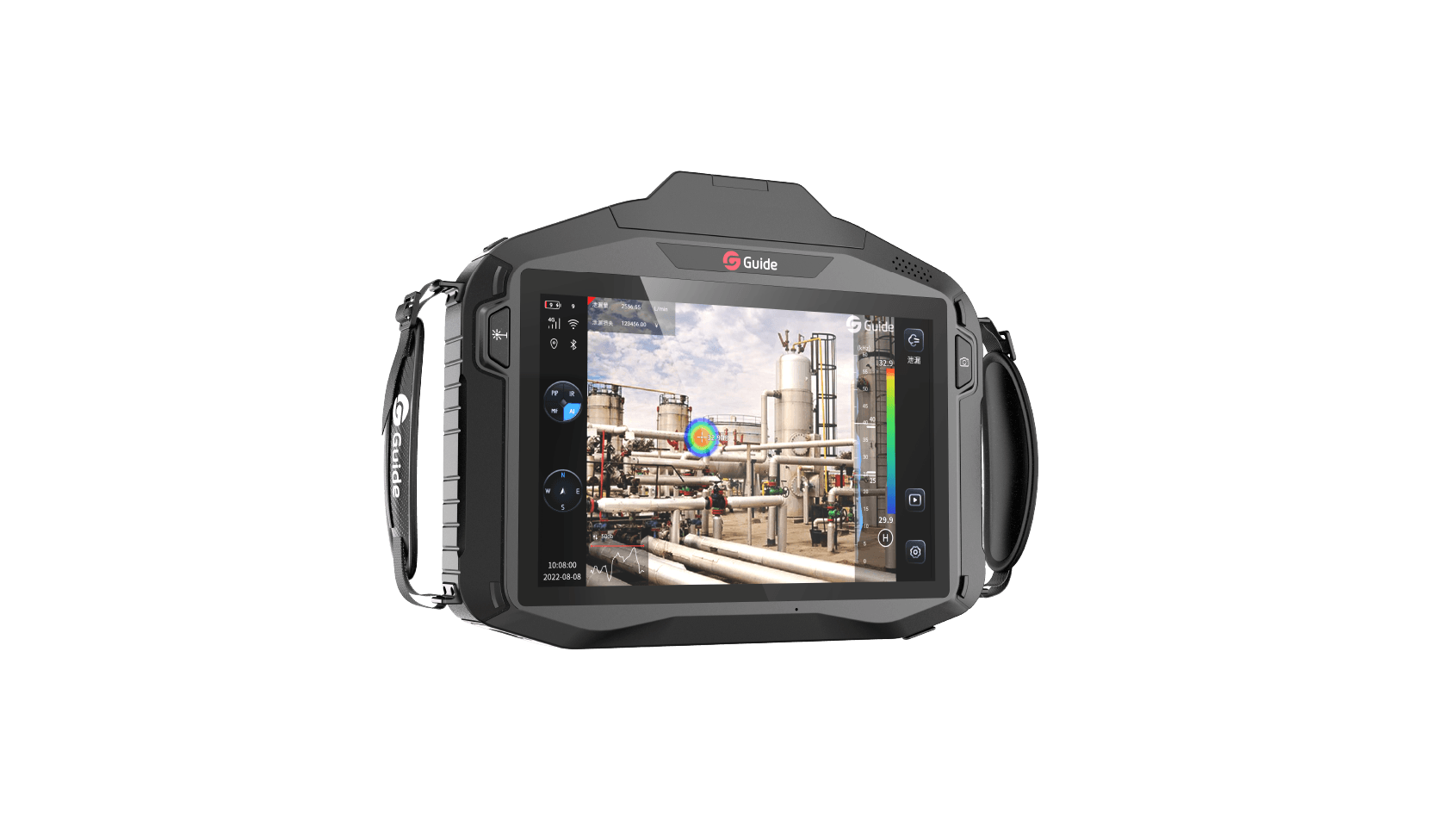

Ultra-Large Screen Visual Experience

Equipped with a 10.1-inch ultra-large touchscreen, it not only provides a broader visual experience but also makes touch-screen interaction more effortless and comfortable. It combines advantages such as low reflectivity, sensitive response, high durability, and resistance to accidental touches.

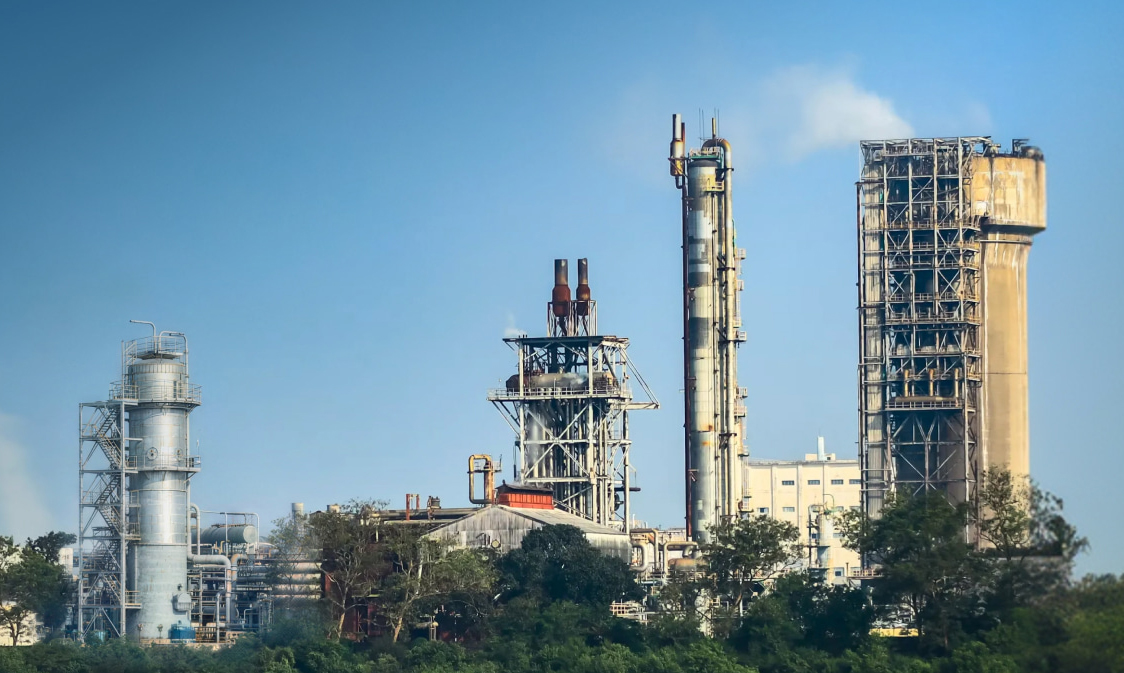

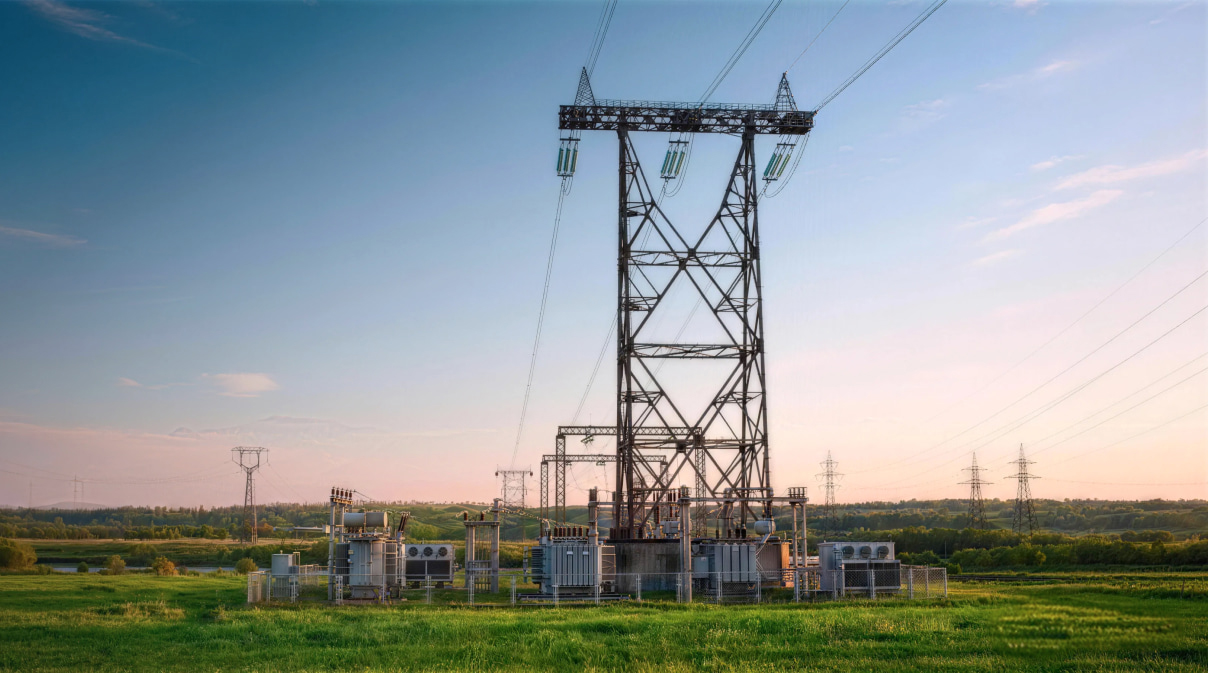

Applications
