Thermal Imaging Pioneer:
Engineered for Extreme Firegrounds

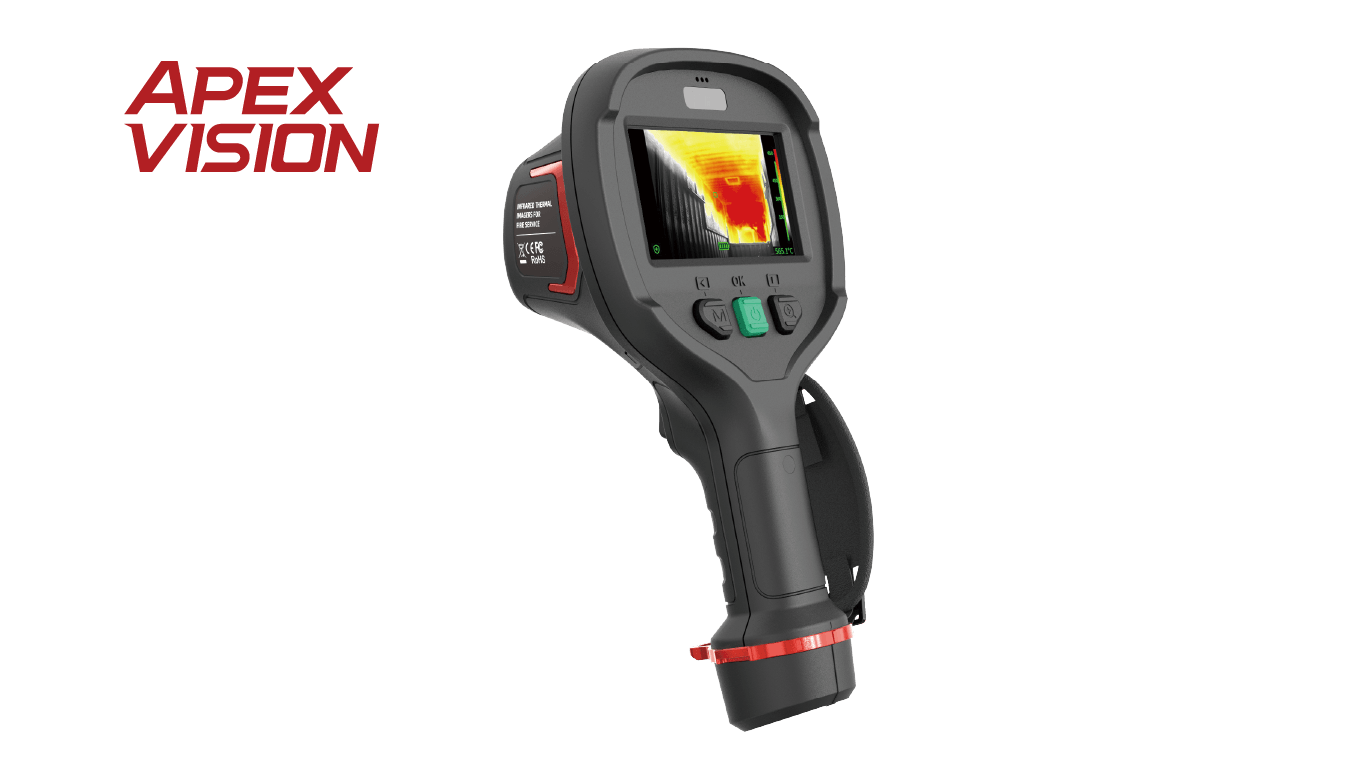

Firefighter Thermal Camera

Overview Specs Features Specification Downloads Media What's in the Box Accessories

Overview

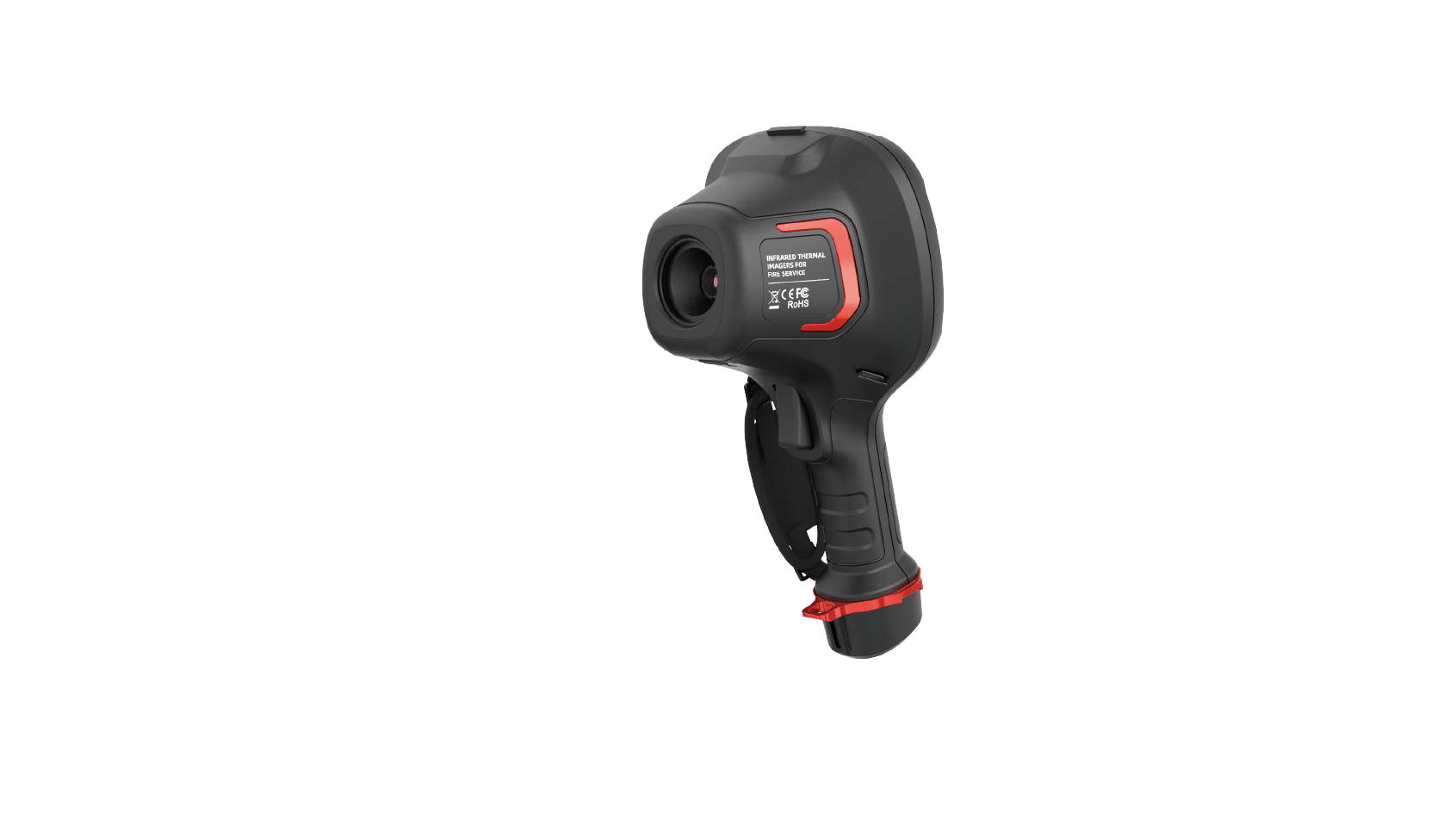

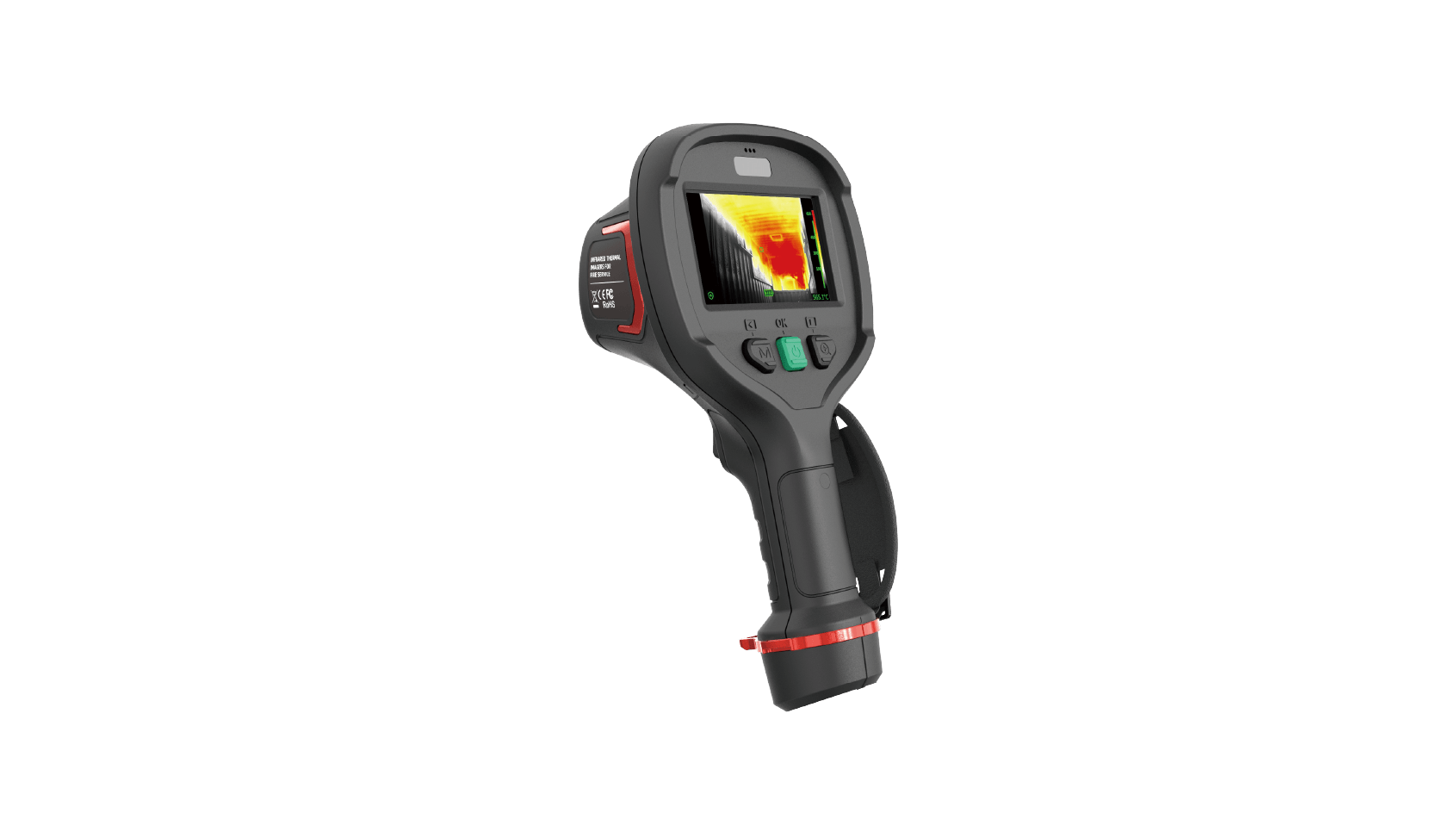

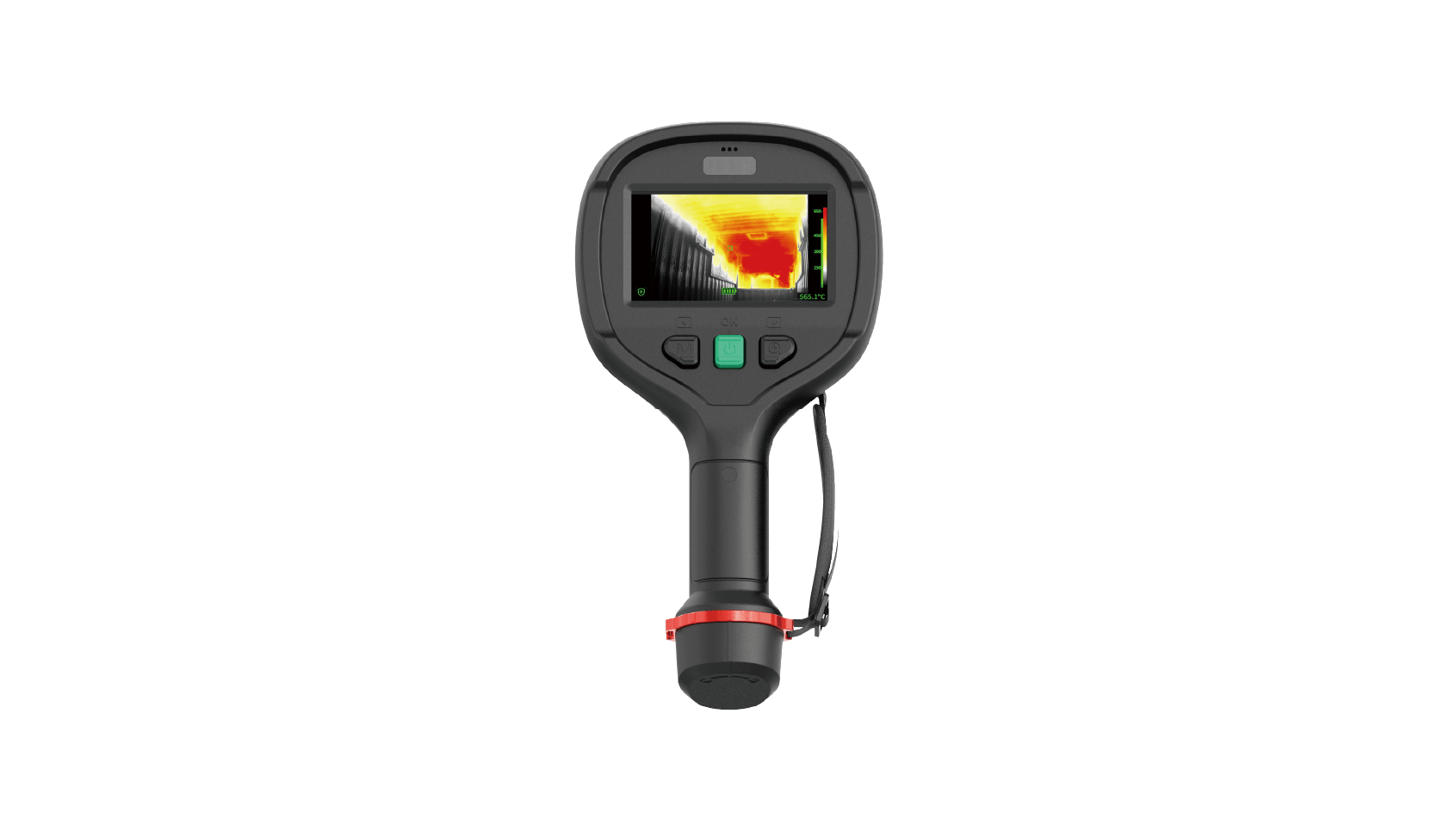

PR II Series dual-purpose thermal imaging camera for rescue and detection empowers a new perspective for firefighters, certified as Intrinsic Safety Explosion-Proof. It combines high resolution, large display screen, multiple scene modes, temperature analysis functions, and strong protection rating, which can break through the limitations of harsh environments such as high temperatures, high humidity, and dense smoke in fire scenes to help firefighters quickly and clearly see the surrounding environment, locate the fire and search for trapped individuals more accurately, providing more efficient and safer firefighting support.

PR610S

640x480@12μm Infrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60Hz IR Frame Rate
0.5m~∞ Detection Range

PR410S

384×288@12μm Infrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60Hz IR Frame Rate
0.5m~∞ Detection Range

PR610

640×480@12μm IR Resolution
-20°C to 2000°C Measurement Range
128 GBLocal Storage
IP67Encapsulation

PR410

384x288@12μm Infrared Resolution
-40°C~2000°C Ultra-Wide Temp.Range
60Hz IR Frame Rate
0.5m~∞ Detection Range

Complete ApexVision S1 System Architecture

Guide next-generation thermal imaging solution is engineered to elevate the infrared imaging performance
of temperature measurement devices at the system level. In any environment, it produces cleaner, finer images and delivers consistently accurate and reliable temperature data and analysis for critical decision-making.

Anti-Glare Display Delivers Clear Imaging

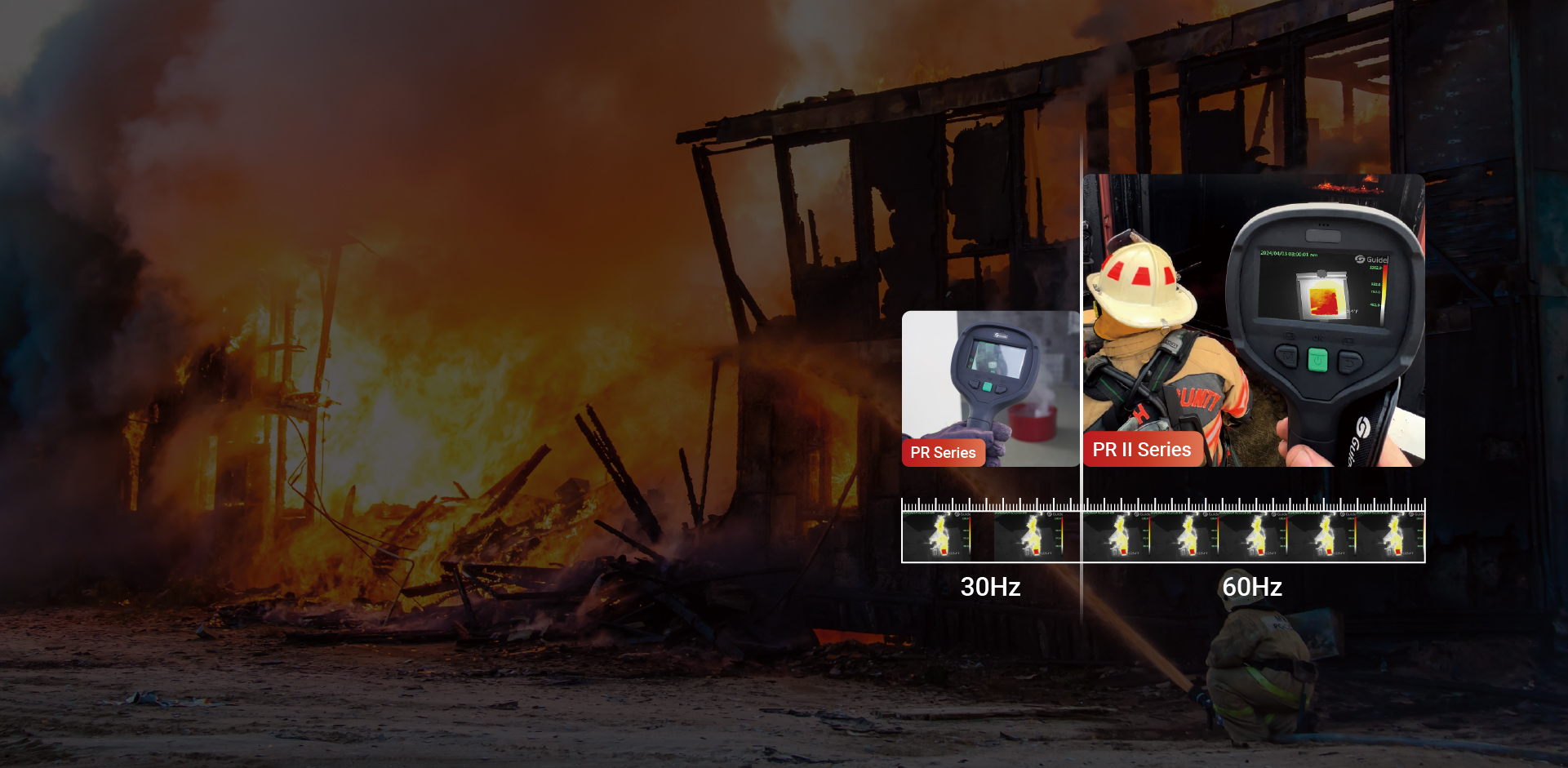

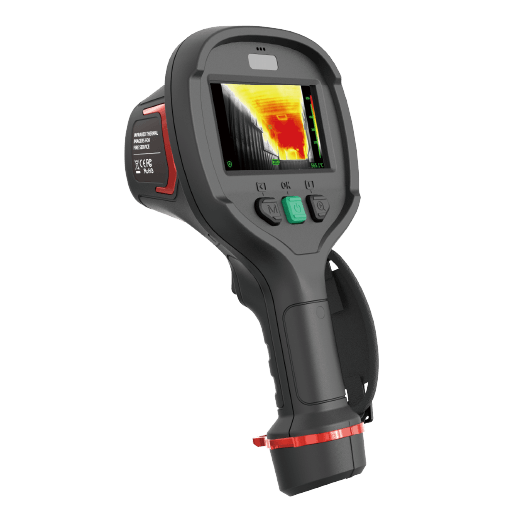

PR II Series features a focus-free design for quick, sharp thermal imaging without manual adjustment. Its 60Hz high frame rate ensures smooth, stable imaging for real-time fire scene analysis. The 4.3-inch anti-glare LCD screen allows users to detect targets even in harsh glare or smoke-filled environments, enhancing accuracy.

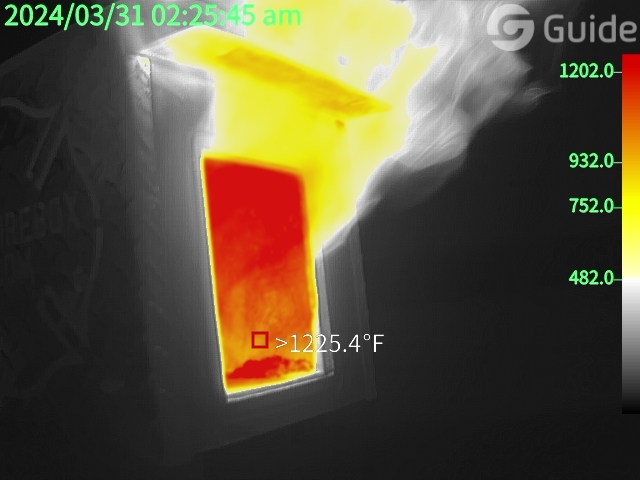

-40°C~2000°C Temperature Range

Accuracy: ±2°C or ±2%, whichever is greater

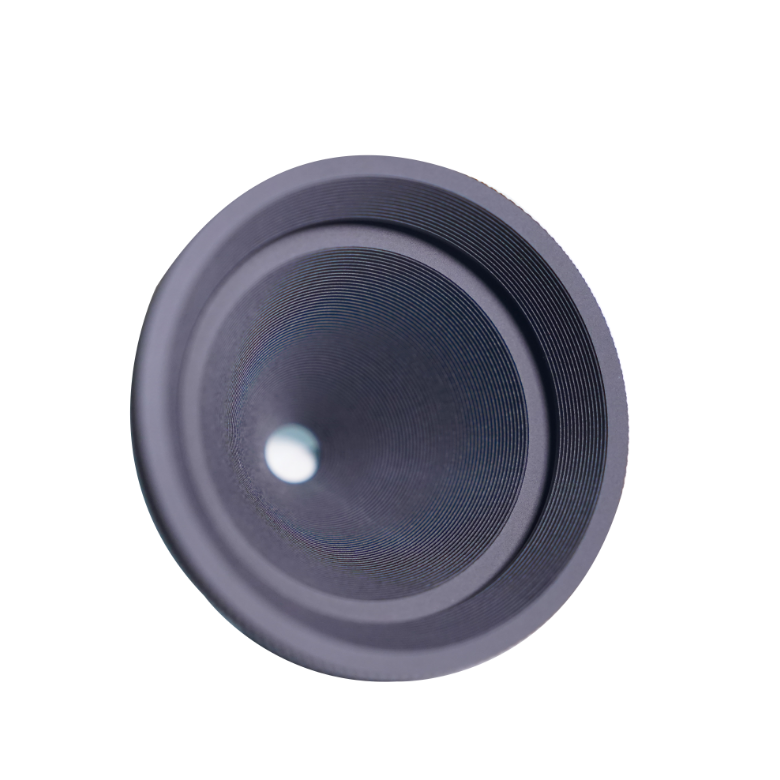

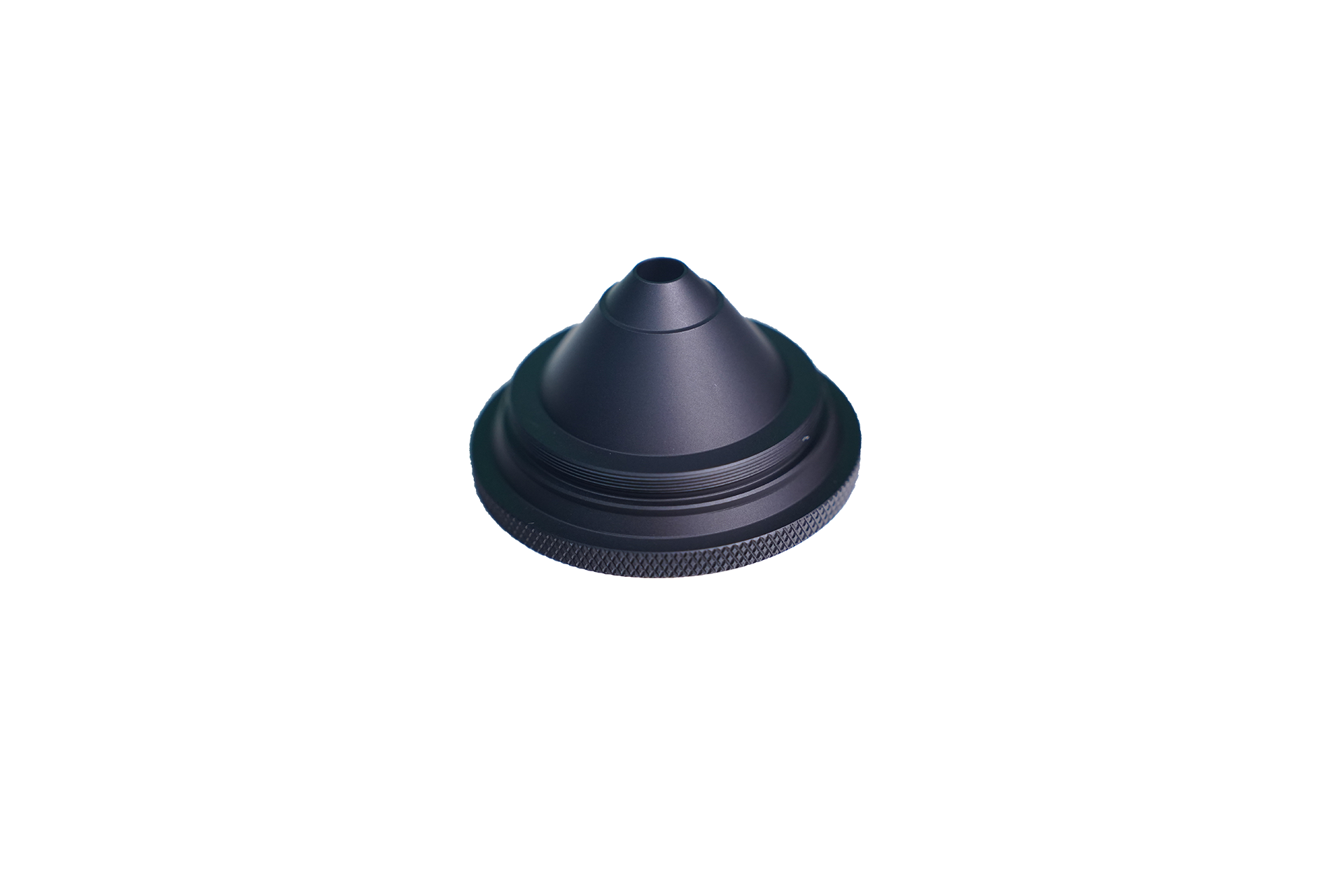

Measurement Range: Support auto-switching, -40°C~150°C, 0°C~650°C, 500°C~2000°C (Aperture is required)

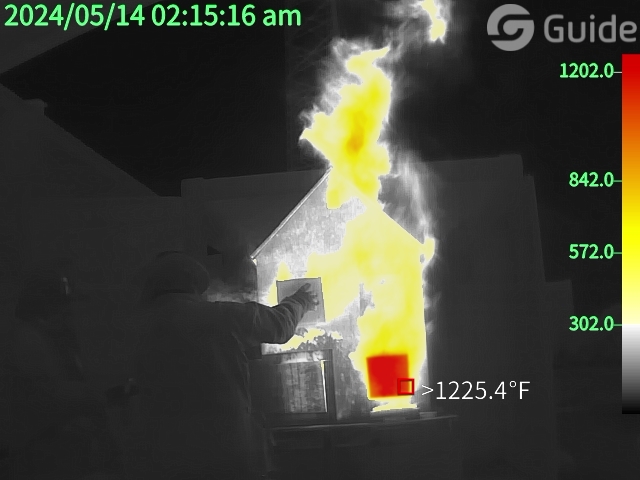

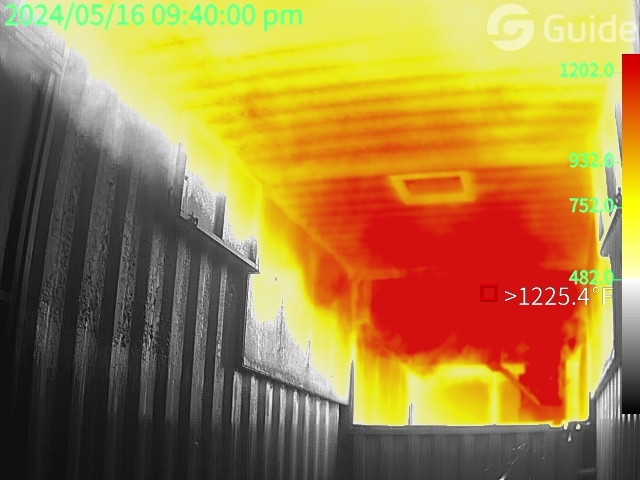

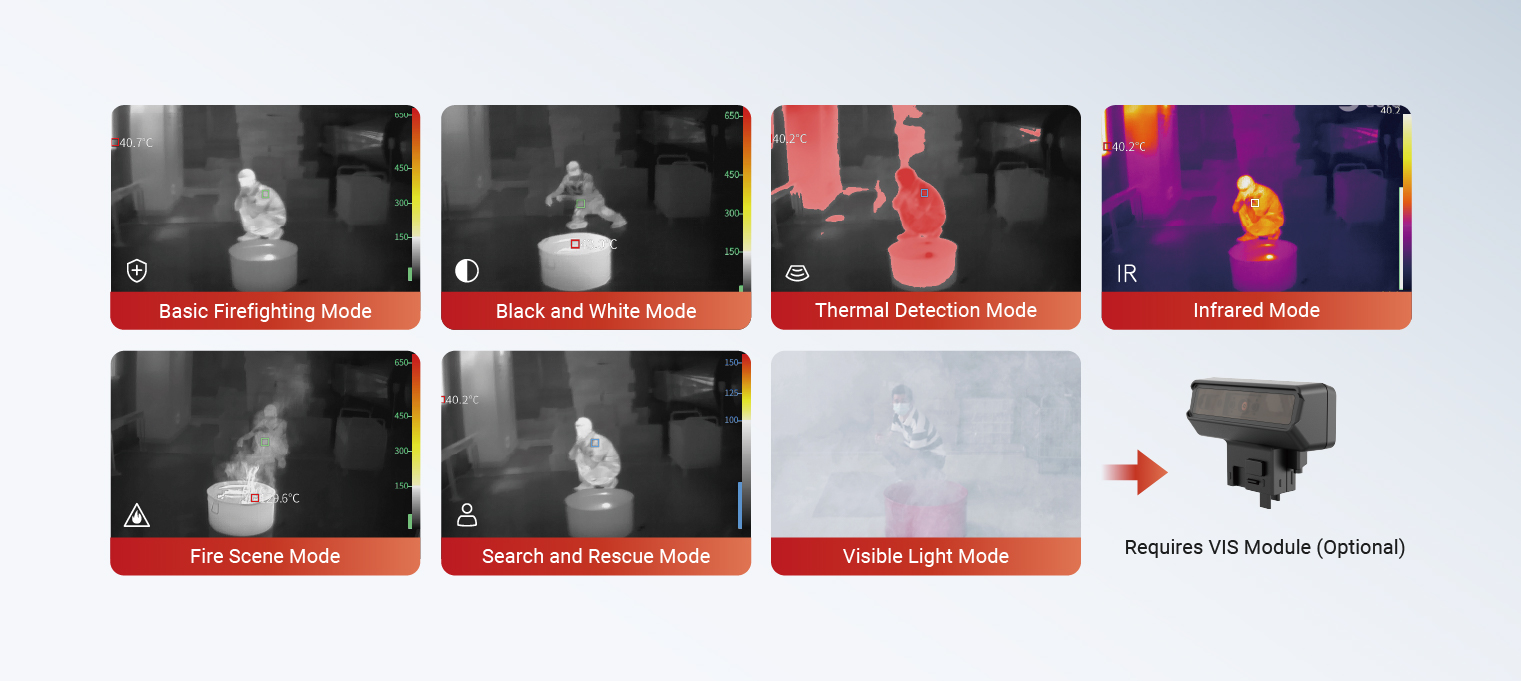

7 Image Modes, Multi-Scenario Firefighting

Engineered to tackle diverse fireground challenges, scene-specific imaging presets enhance situational awareness and support quick, informed decisions for more accurate fire localization and persons in danger.

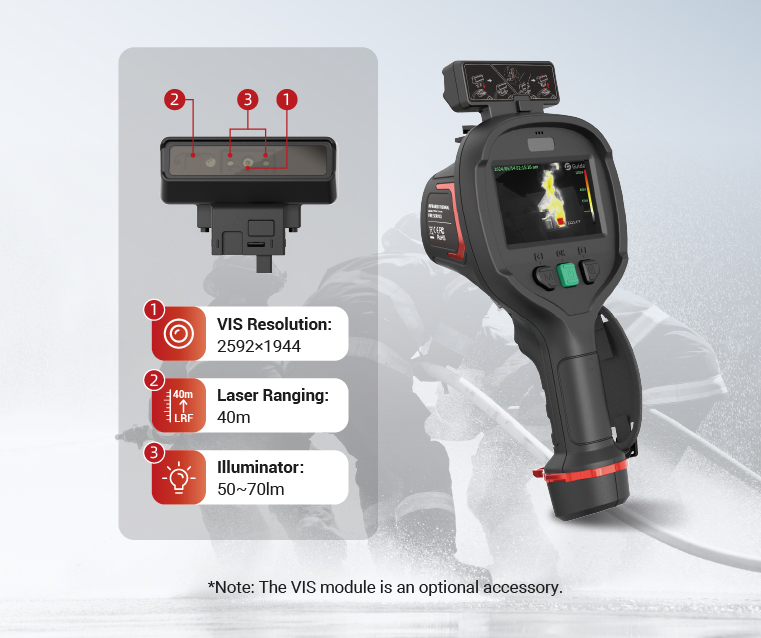

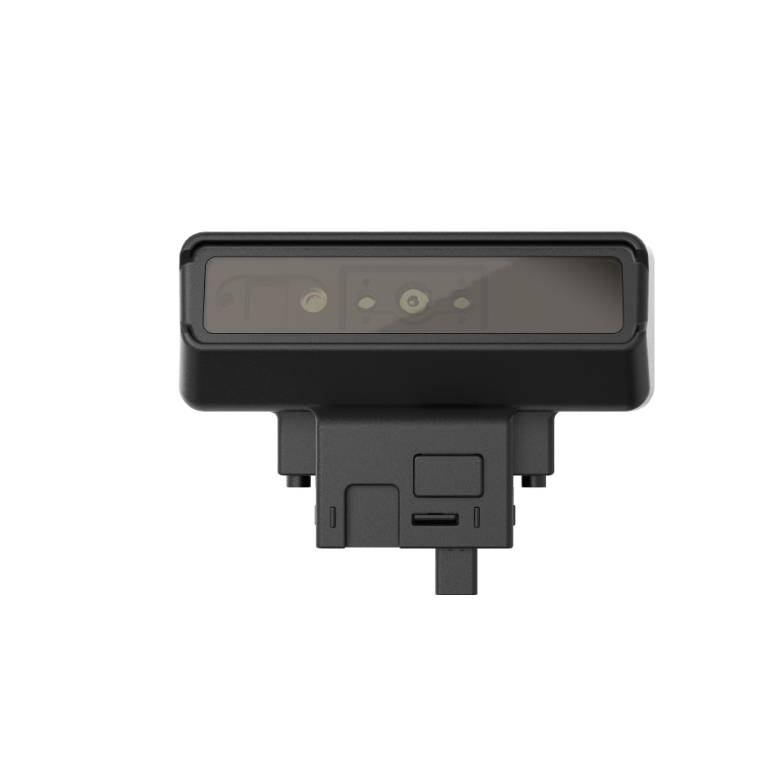

Multi-Functional Module Enhances Rescue Efficiency

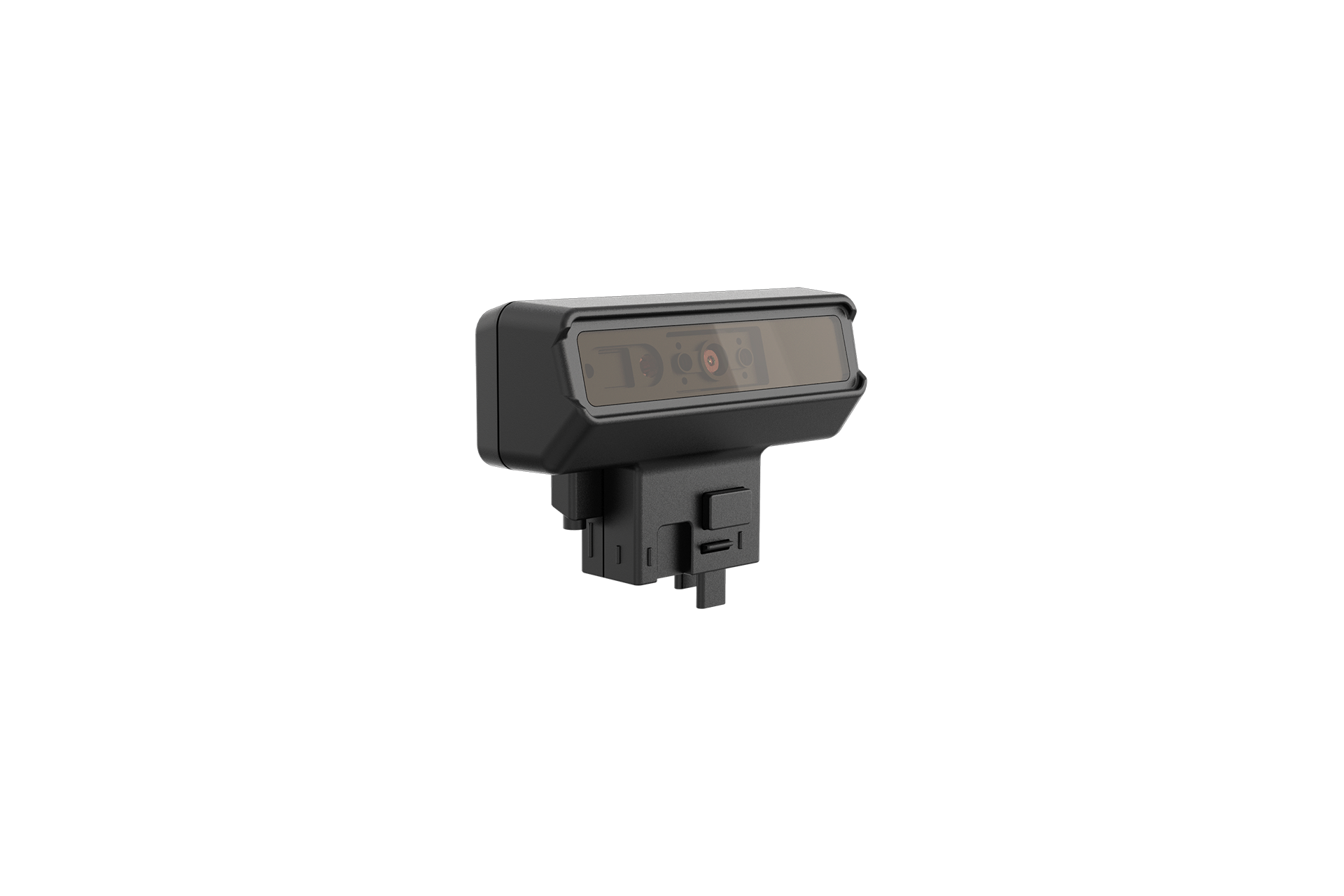

Equipped with a multi-functional VIS module, PR II Series not only supports visible-light observation and auxiliary lighting, but also precisely measures target distance through laser rangefinder, enhancing operational efficiency at night or low-light conditions.

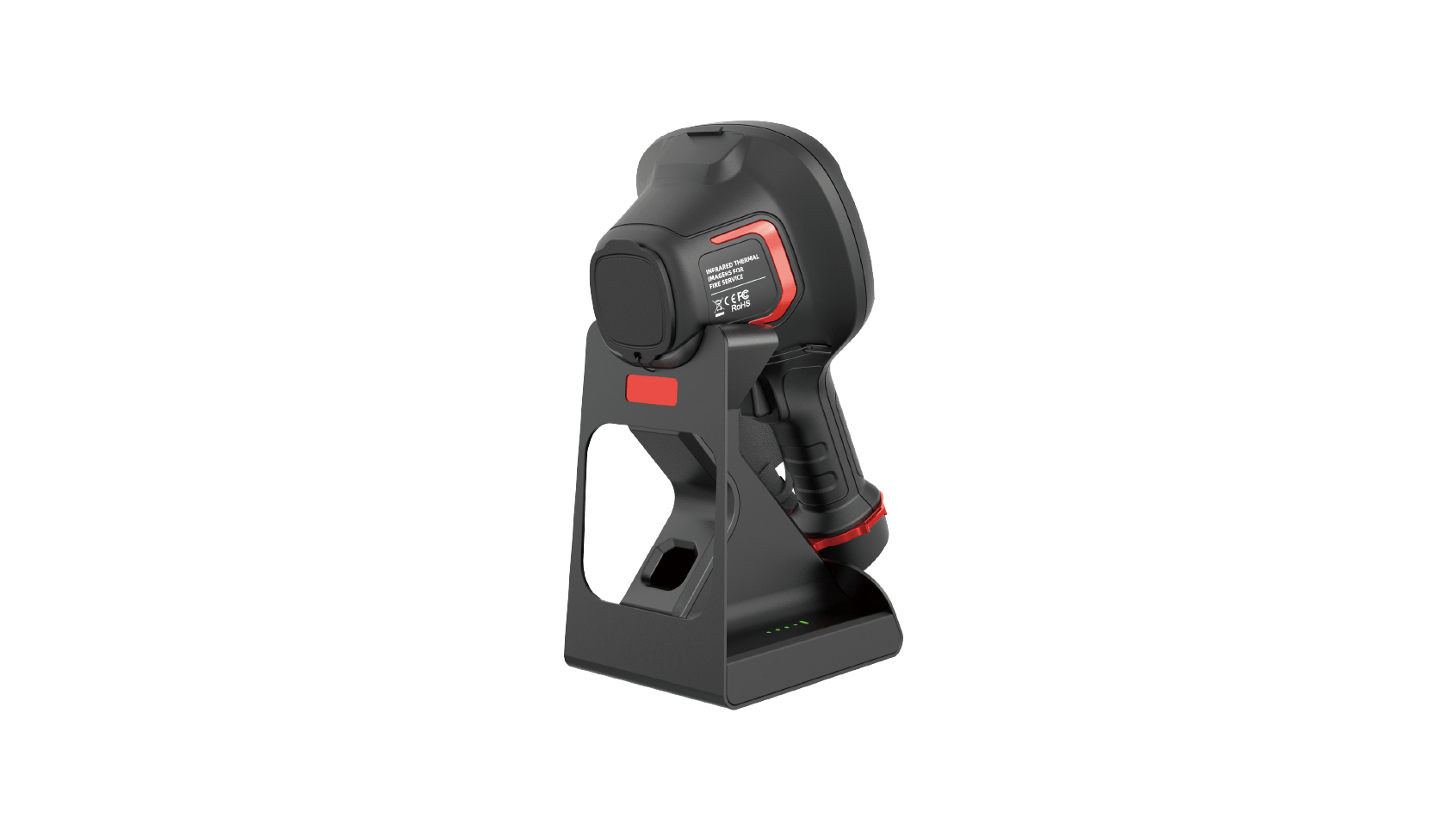

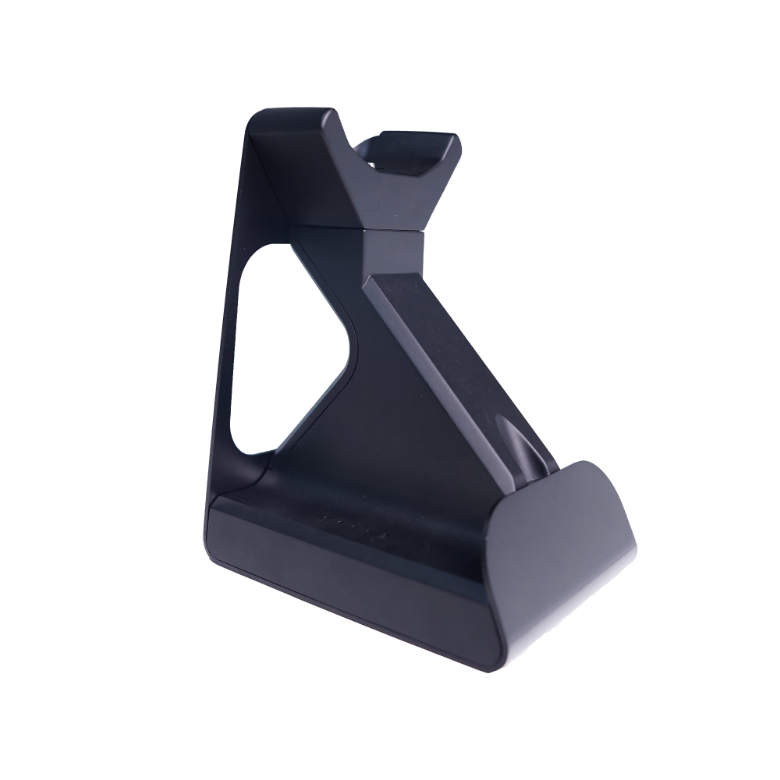

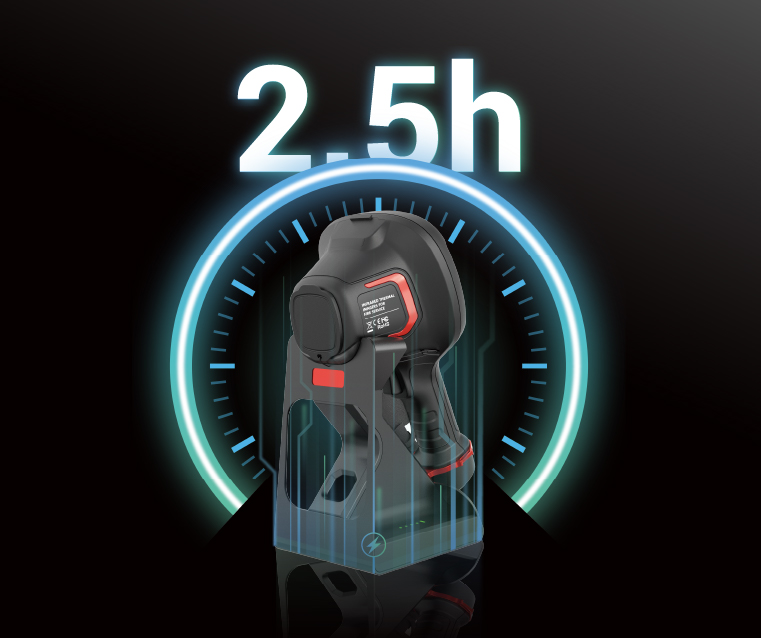

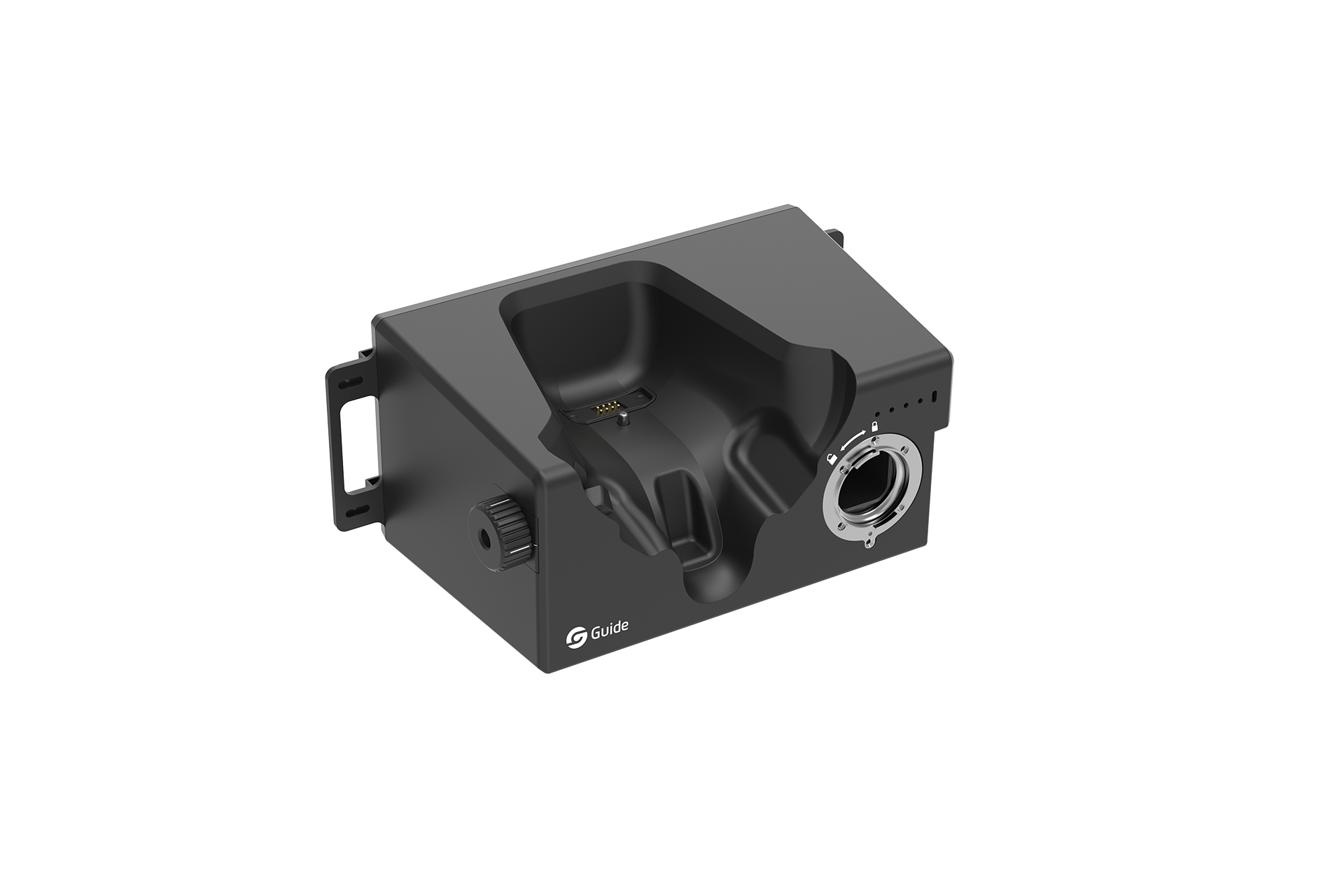

Versatile Desktop Charger, Smart Power Management

Multi-function desktop charger…

Extreme Thermal Resilience: Full Functionality at 260°C

PR II Series is designed to withstand extreme fireground conditions, such as high temperature, high humidity, dense smoke. It can operate continuously for up to 5 minutes at 260°C.
