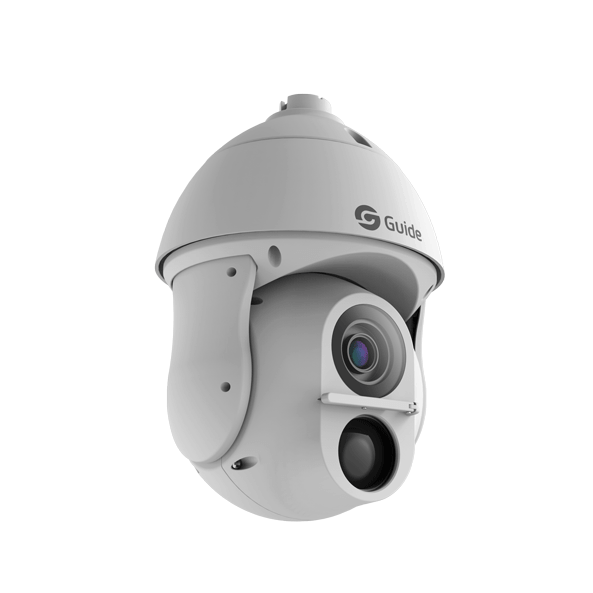

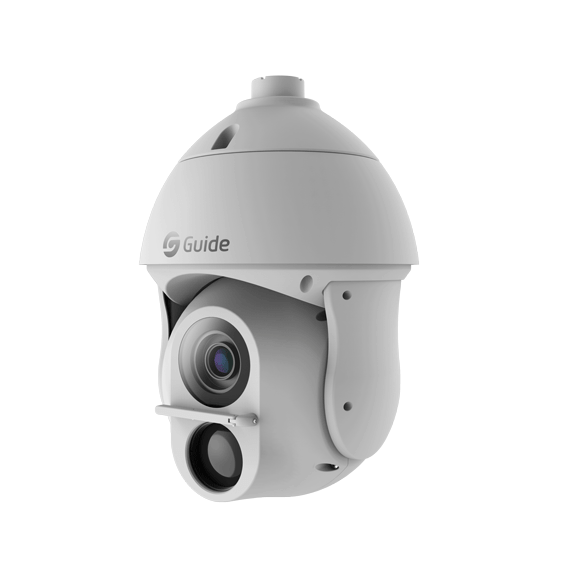

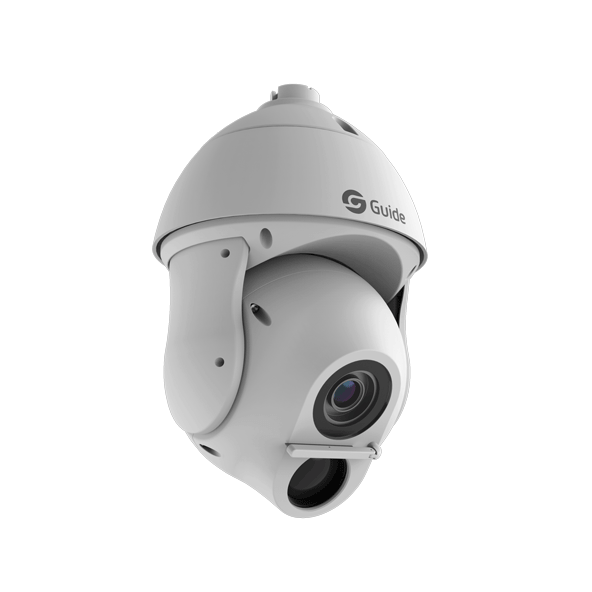

DS6050FT-P
Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
DS6050FT-P is a dual-spectrum networked thermal imager that integrates infrared thermal imaging, visible light, and a ball head. It boasts excellent image quality and precise temperature measurements. Equipped with intelligent detection algorithms, it ensures high-security levels for intelligent intrusion detection even in dark or harsh weather conditions, ensuring perimeter safety. It can be widely used in monitoring applications requiring medium-to-short range and medium-short distance, such as fire prevention in areas, cultural heritage protection, border and coastal defense, stations, airports, urban security, port terminals, etc. It is also suitable for industries that require temperature measurement, such as power, industrial temperature detection, etc.
640x512IR resolution
50mmFocal Length
12.4°x9.9°FOV
≤40mKNETD
ADD TO COMPARE
24-hour remote monitoring and high-precision temperature measurement
• VOx focal plane detector with high sensitivity and excellent image quality.
• 1/1.9" 2MP CMOS sensor with 35x optical zoom.

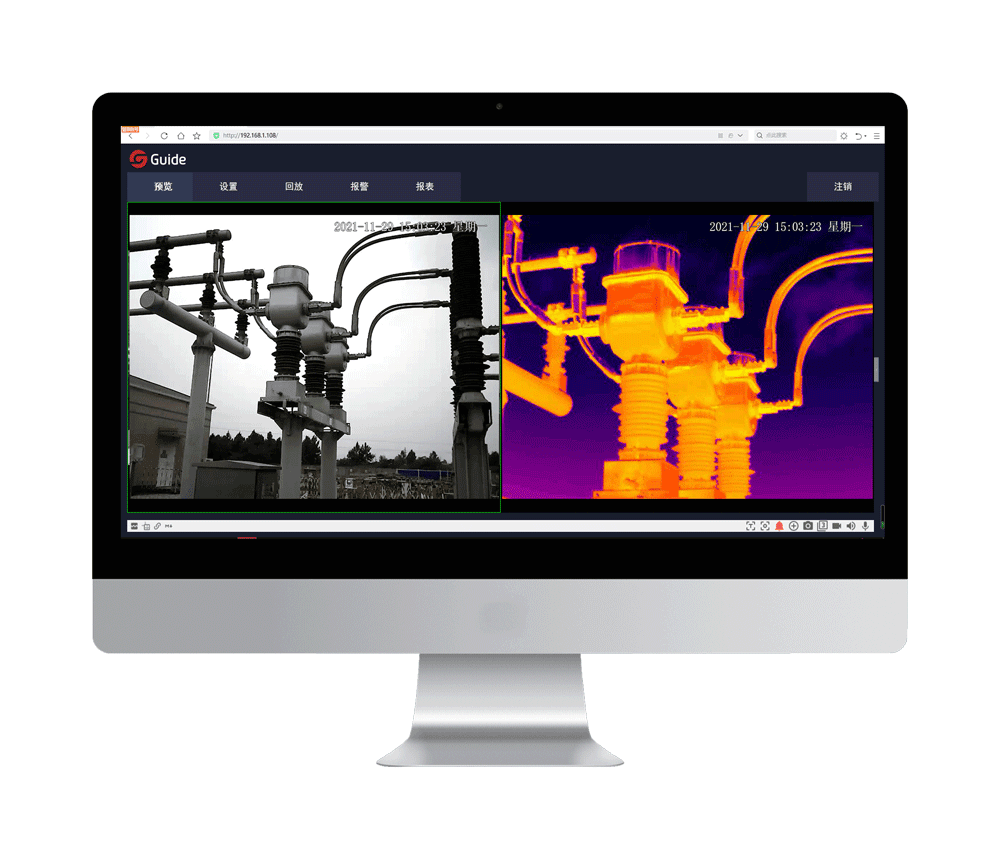

• Single IP web access control for visual online monitoring.

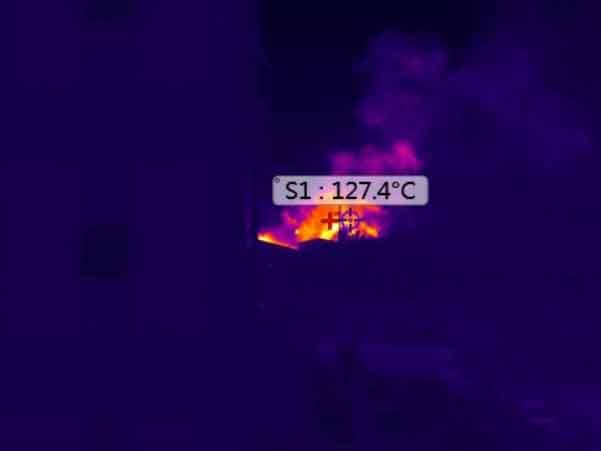

• Support high-precision, non-contact temperature measurement.

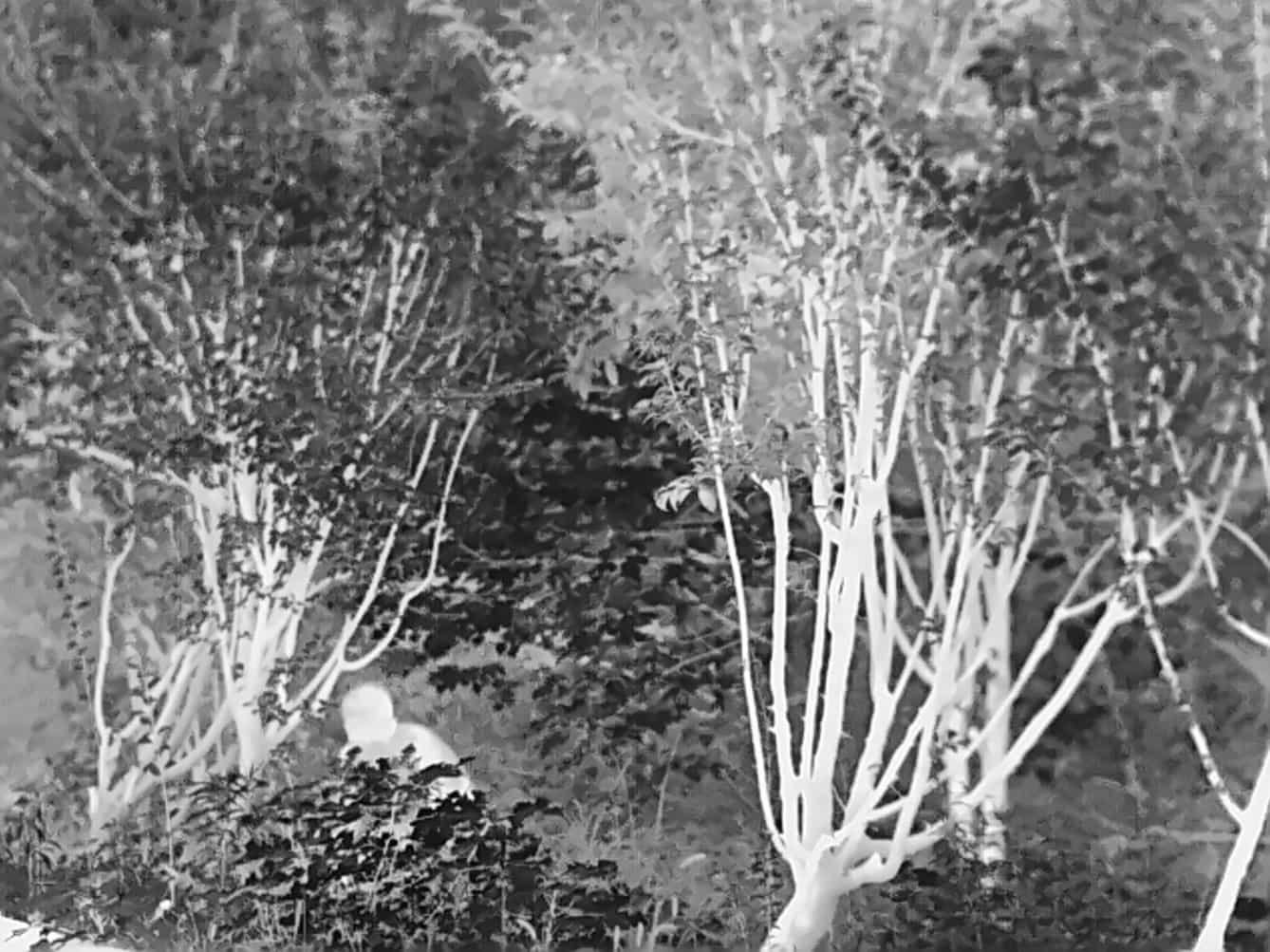

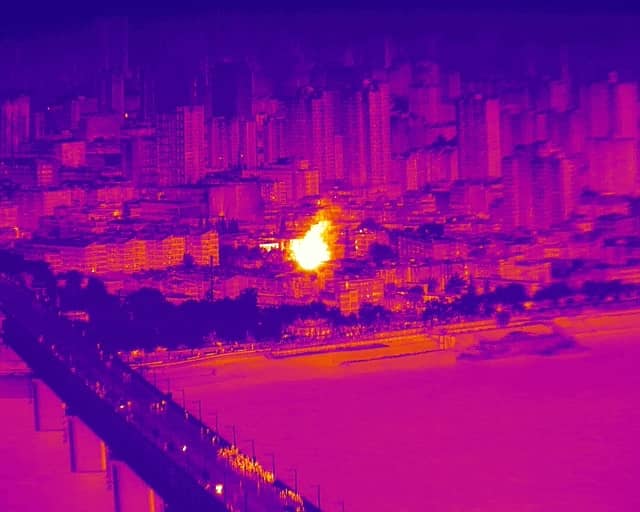

• Support intelligent functions such as fire detection alarms, cross-line intrusion, area intrusion, various trigger rule-linked actions, target filtering, etc.
• Supports IP whitelisting and blacklisting, MAC whitelisting and blacklisting, multi-level user management, personalized monitoring, confidentiality, and permission management.
• Low-stream transmission for bandwidth efficiency.
• Support standard network protocols like GBT28181 and ONVIF, allowing flexible integration with various NVRs for network formation.
• Support multi-frame fusion for wide dynamic range and advanced image denoising.
• Local storage with a TF card for seamless continuation of recording in case of network disconnection.
Applications
Media Gallery
Technical Parameters
Model
DS6050FT-P
ADD TO COMPARE
| Thermographic | ||||
|---|---|---|---|---|
| Detector type | VOx, 8μm to 14μm | |||
| IR resolution | 640×512, 17μm | |||
| NETD | 40mK@30°C | |||
| Lens | 50mm, 12.4°×9.9° | |||
| Focusing mode | Focus-free | |||
| Pseudo colors | 9 pseudo colors: White Hot, Black Hot, Rainbow and so on | |||
| Featured features | Visible light gain control, 2D/3D noise reduction, Backlight compensation, Wide dynamic, Strong-light photoinhibition, Image flip, Exposure compensation | |||
| Temperature measurement | ||||
|---|---|---|---|---|
| Measurement range | Low temperature mode: -20°C to 150°C, high temperature mode: -20°C to 550°C | |||
| Measurement accuracy | ±2°C or ±2% (whichever is greater) | |||
| Target setting | Up to 300 presets; 12 spots/lines/areas (circle, square or irregular polygon) for each preset; Measurement for up to 12 simultaneous spot+line+area for each preset | |||
| Measurement function | Cold/hot spot tracking, Full-screen point temperature measuring, Query and export of information | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
