QT210
IR Fever Warning System

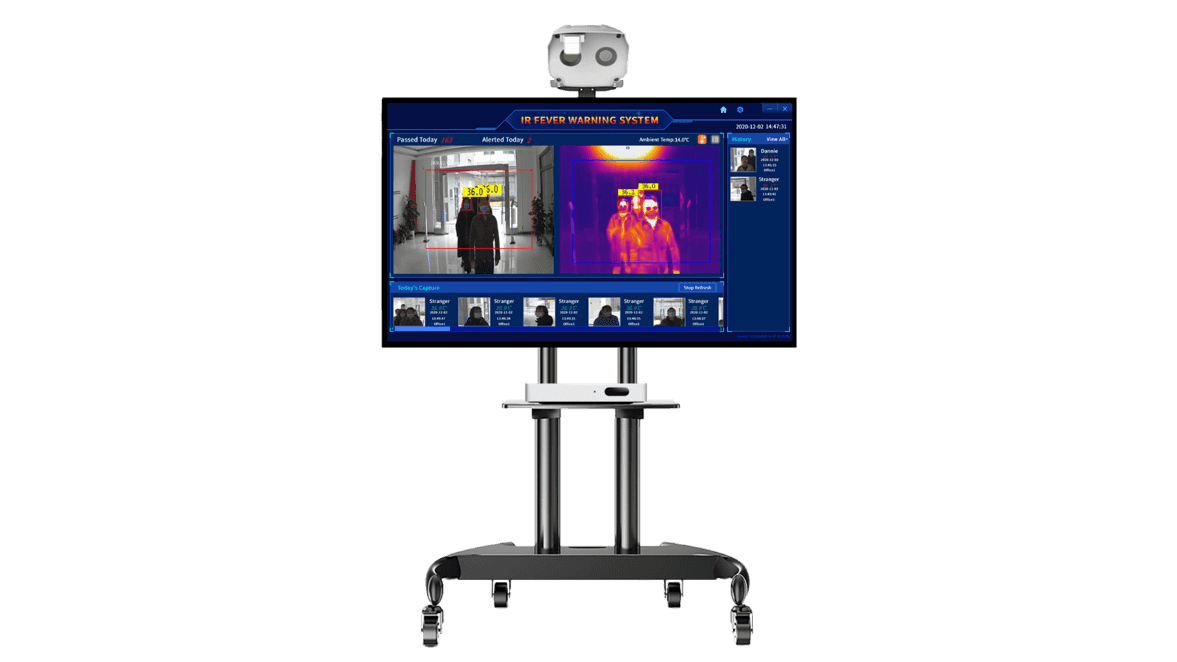

Guide QT Series IR Fever Warning System is the simple, affordable and versatile solution that streamlines temperature monitoring for daily epidemic prevention and control. It can be quickly deployed in 5 minutes, convenient and flexible. Guide QT Series adopt high performance Vox thermal detector that realize fast non-contact temperature detection. While detecting the over-temperature person, Guide QT can automatically snap photos, sound an alarm and realize face recognition.
256×192 IR resolution
28℃-45℃Temp Range
±0.3℃Accuracy
0.5m-5mMeasuring Distance
ADD TO COMPARE
_fuben-981.png)
_fuben-569.png)
_fuben-261.png)
_fuben-941.png)
Multiple

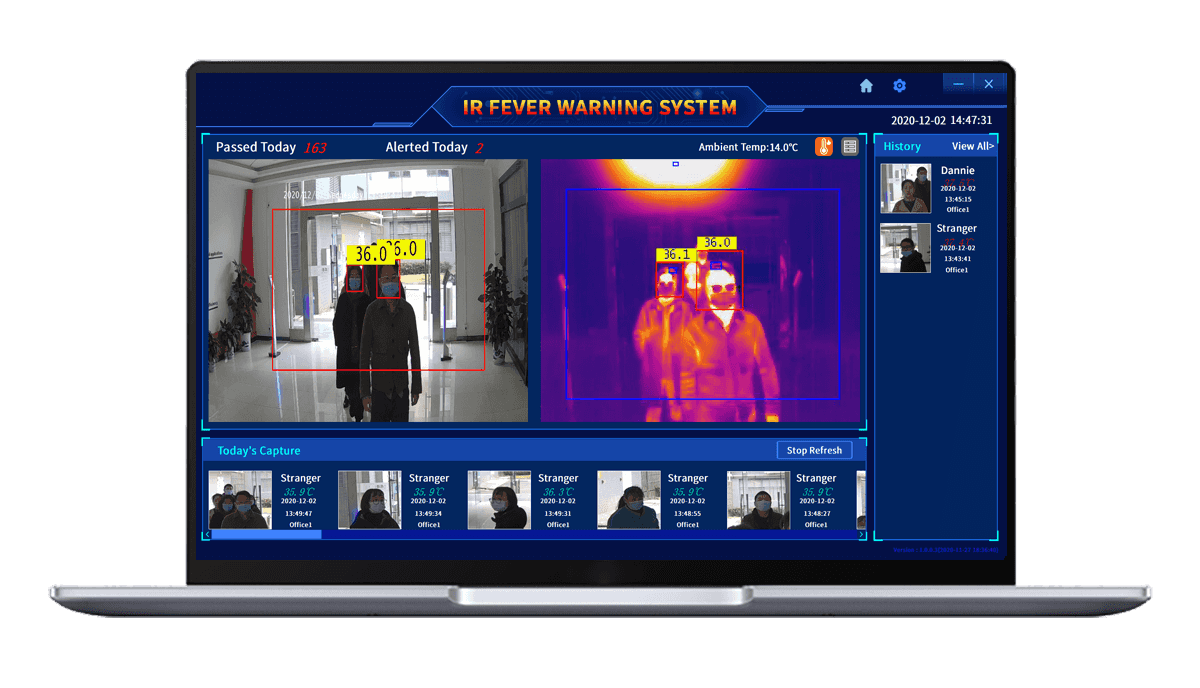

Three new low-cost solutions are available, which can be configured with any display, smart TV, and PC
Fast
Quickly deployment in 5 minutes
Intelligent
Face recognition for counting and statistic, countable and statistics, provide mask recognition switch, temperature measurement accuracy<0.3℃
Saving
No need for high-end computers, old computers can also be reused, integrated blackbody, versatile and affordable

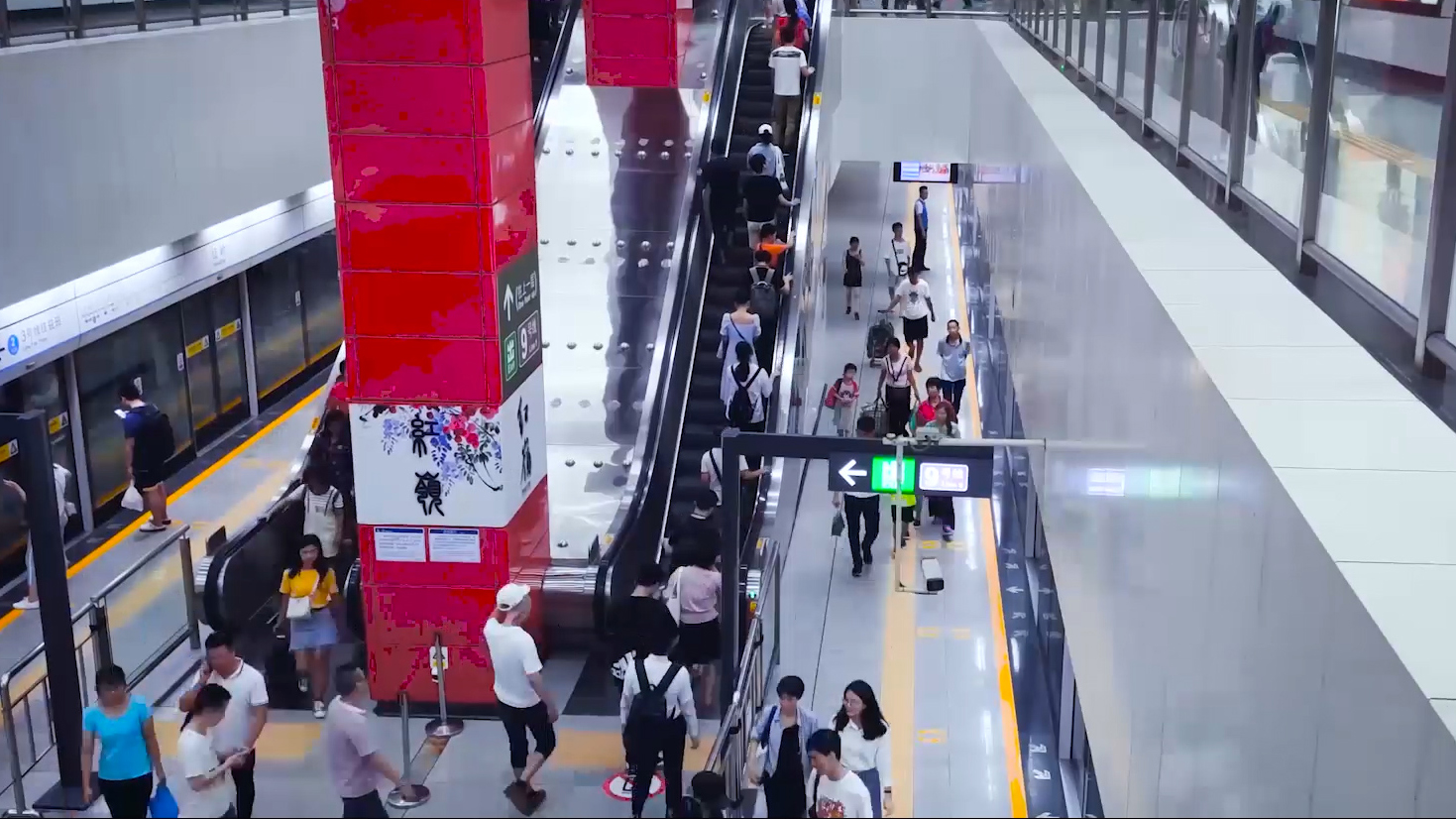

Applications
Media Gallery
Technical Parameters
Model
QT210
ADD TO COMPARE
| Thermographic parameters | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 256×192 | |||
| Pixel size | 12μm | |||
| Spectrum range | 8μm to 14μm | |||
| NETD | 45mK@30°C | |||
| Lense | 3.2mm, 52°×40° | |||
| Image flip | Available | |||
| Pseudo color | 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on | |||
| Temperature measurement parameters | ||||
|---|---|---|---|---|
| Measurement range | 28°C to 42°C | |||
| Measurement accuracy | ±0.3°C | |||
| Target setting | A rectangular frame can be set for face detection and temperature measuring of targeted human entering the frame | |||
| Full-screen point temperature measuring | Available | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
