IR236
IR Fever Warning System

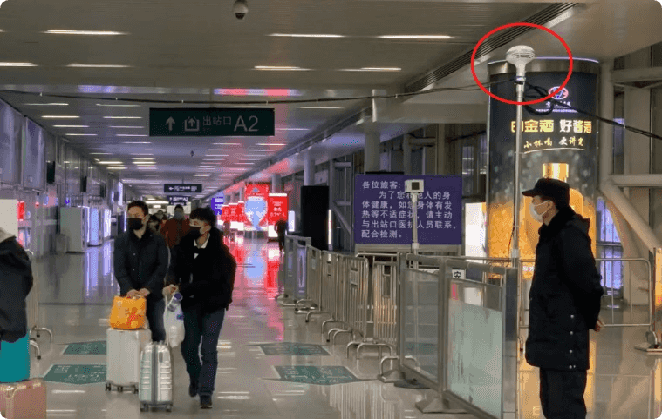

The IR236 equipped with various powerful functions. Multi-target tracking can ensure that no targets are missed. Custom warning zones and high-temperature shielding settings can avoid interference from other high-temperature objects. When detect the febrile people, it supports automatic warning, tracking and photo taking for storage. Support video recording. Convenient to query and classify management. GUIDE IR236 is the ideal equipment for epidemic prevention in public places such as airports, stations, factories, schools, commercial centers and more.
400x300IR resolution
9.7mm Focal Length
≤40mKNETD
≤±0.3℃Accuracy
ADD TO COMPARE
Star products
Adopts 400x300 infrared uncooled VOx detector

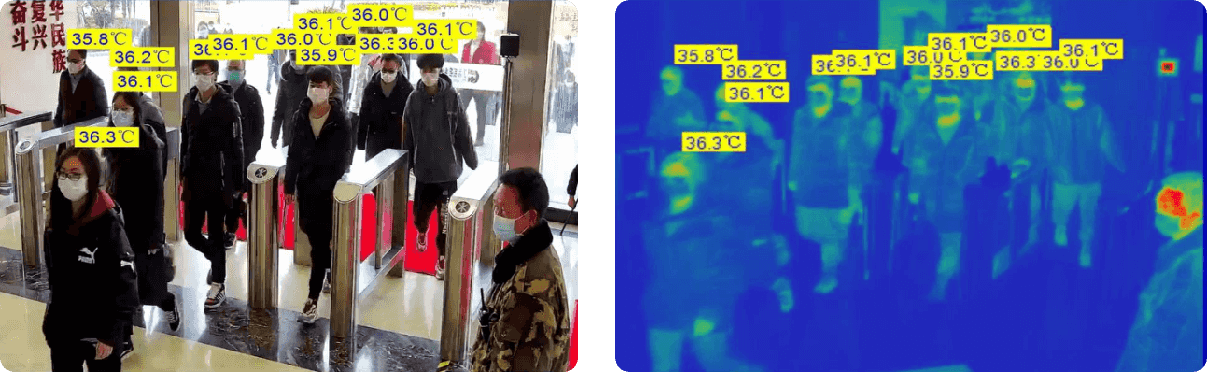

Automatically focus on a passenger's face and sound an warning when a person with a fever is identified
Accurate single-point and multi-point high temperature tracking and warning
AI deep learning algorithm based on neural network, more accurate temperature detection and lower false warning rate

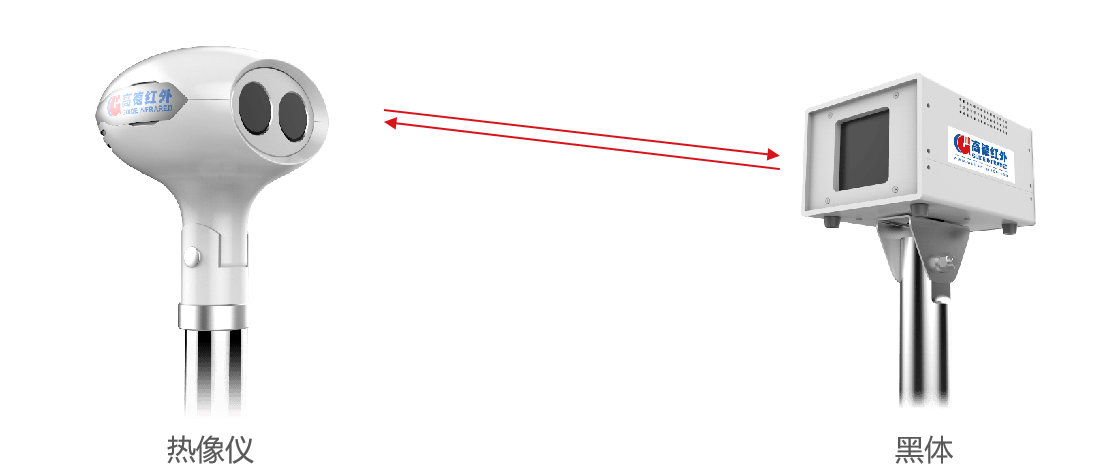

Equipped with black body, real-time temperature calibration, higher

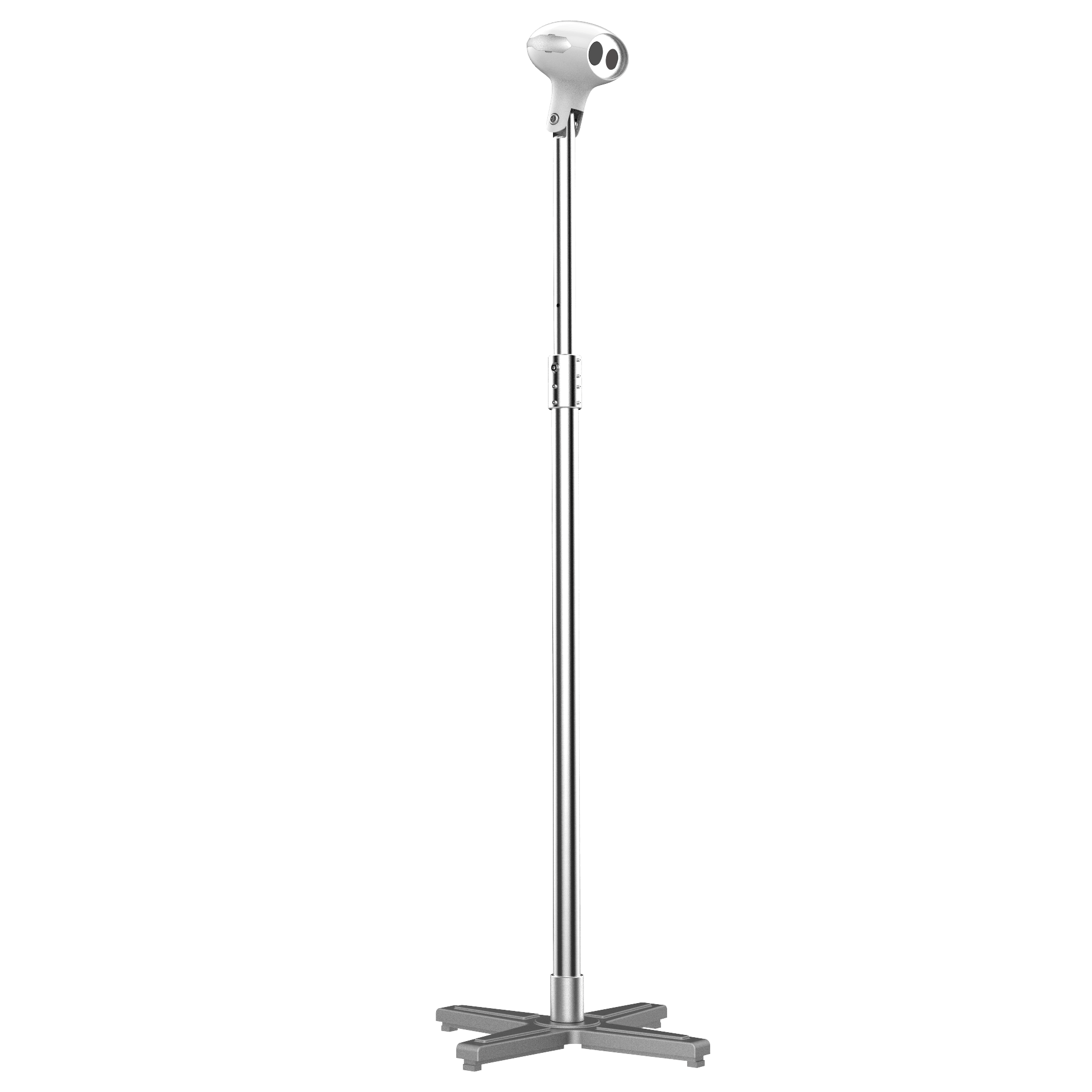

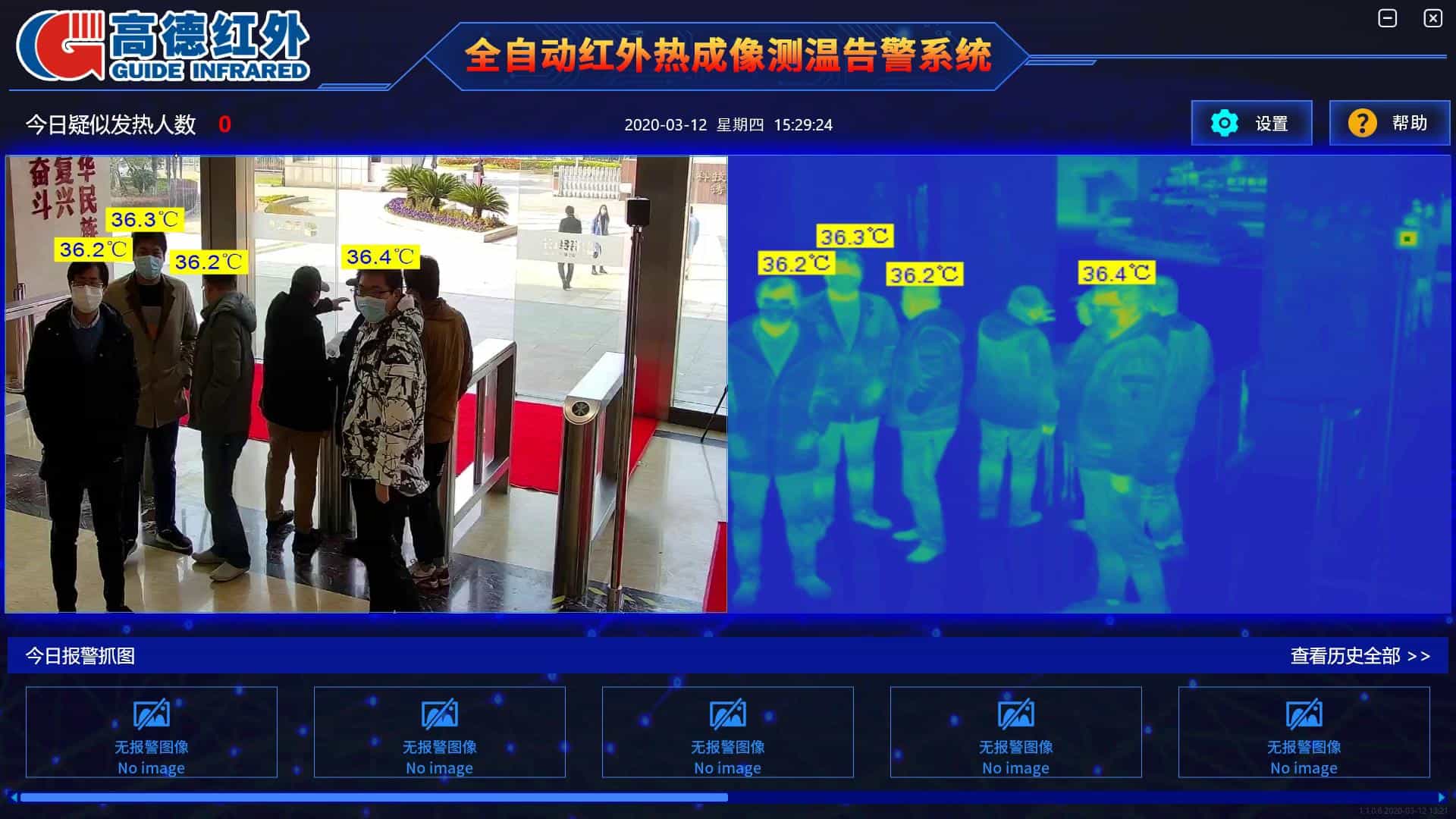

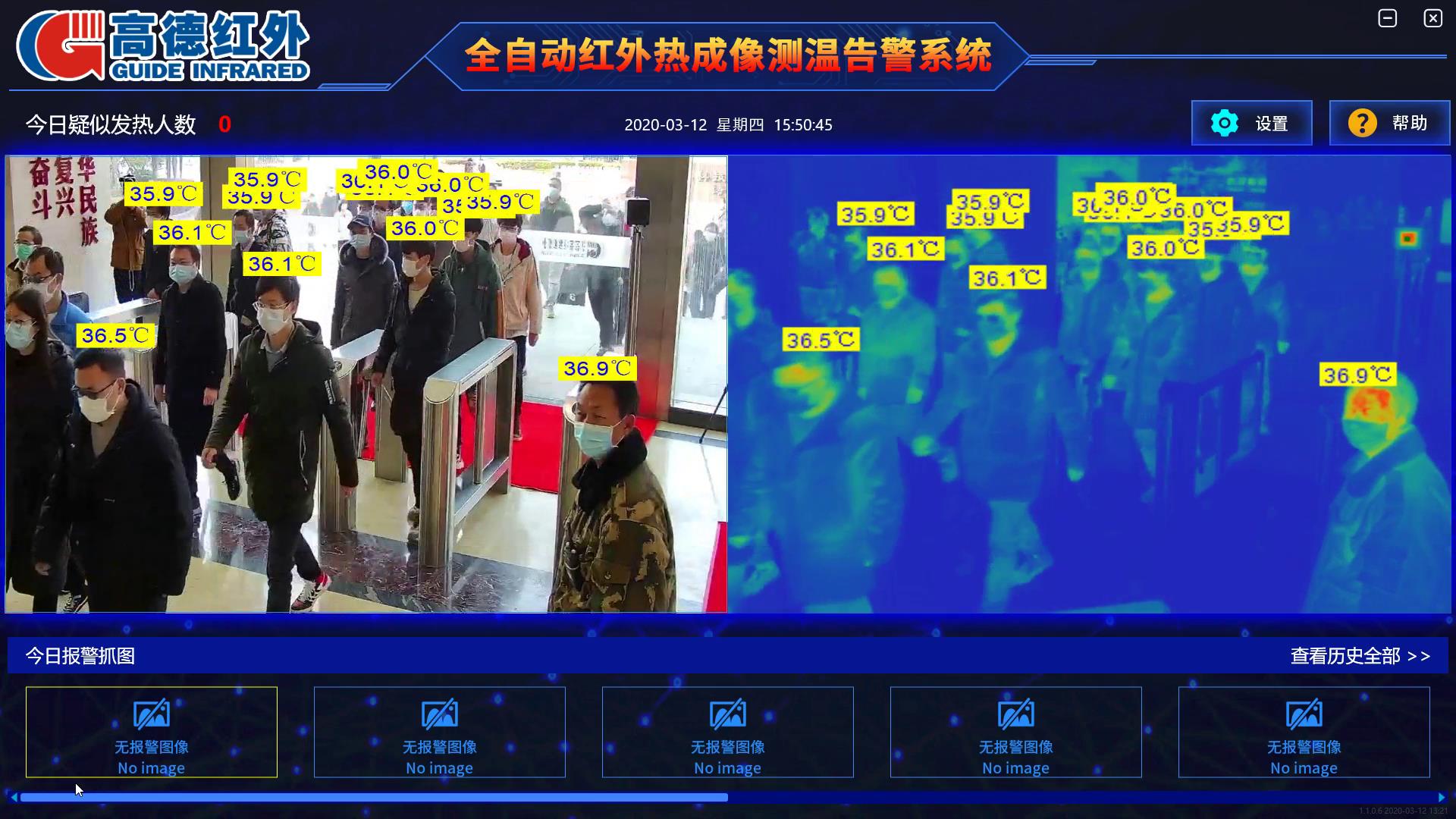

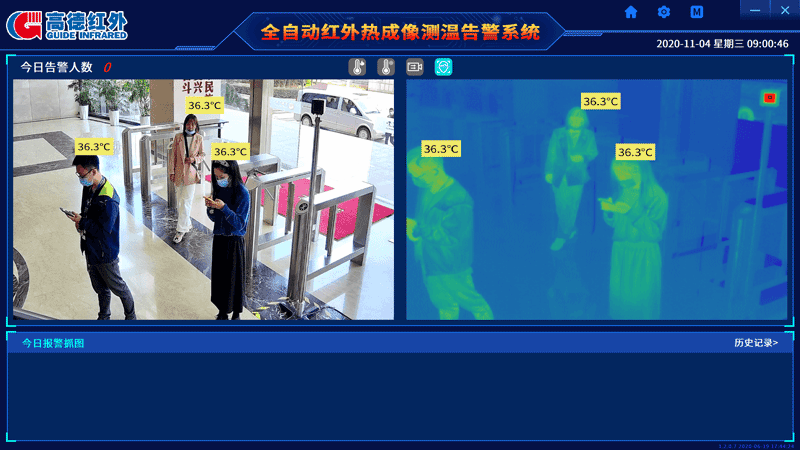

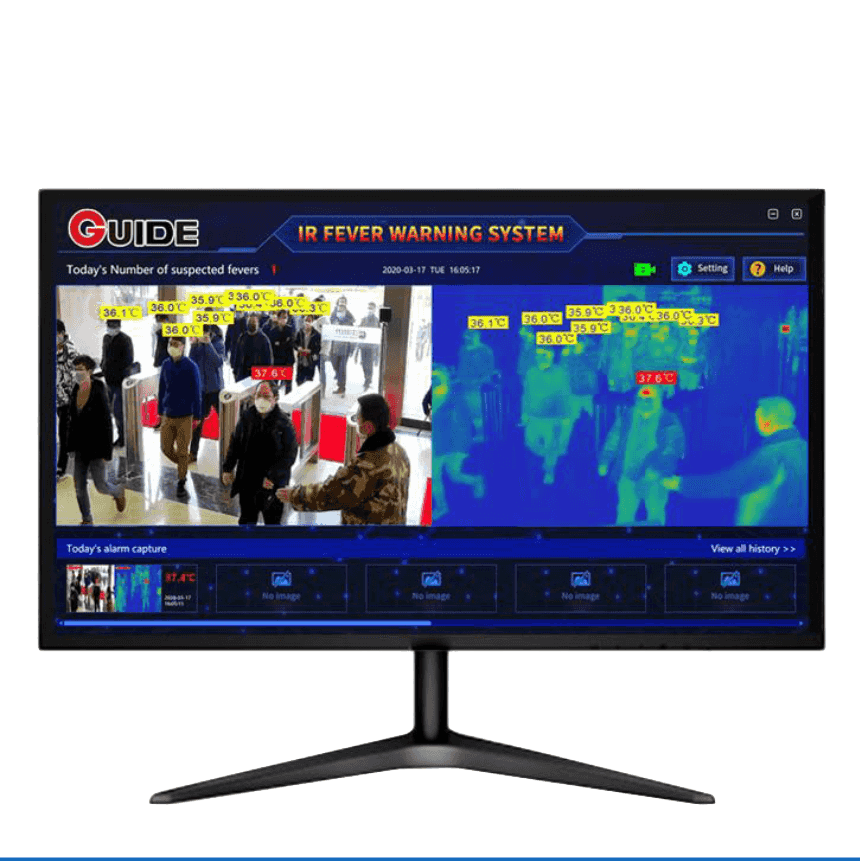

Stand-type, easy to deploy, standard PC with powerful analysis software
Applications
Media Gallery
Technical Parameters
Model
IR236
ADD TO COMPARE
| Thermographic parameters | ||||
|---|---|---|---|---|
| Detector type | VOx | |||
| Detector resolution | 400×300 | |||
| Pixel size | 17μm | |||
| Spectrum range | 8μm to 14μm | |||
| NETD | 40mK@30°C | |||
| Lense | 9.7mm, 38°×28° | |||
| Image flip | Available | |||
| Pseudo color | 9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on | |||
| Temperature measurement parameters | ||||
|---|---|---|---|---|
| Measurement range | -10°C to +50°C | |||
| Measurement accuracy | ±0.3°C | |||
| Cold/hot spot tracking | Available | |||
| Full-screen point temperature measuring | Available | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
