TN650

TN650

Handheld Thermal Binoculars

TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.



640×480IR resolution

50mm/F1.2Focal Length

≤30mKNETD

2.8X~22.4XMagnification

Guide TN650
Guide TN 650
Guide TN650
TN650 Handheld Thermal Binoculars
TN650 Handheld Thermal Binoculars

Ergonomic design Easy observation

Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.


Guide TN650

Quick location,All new experience

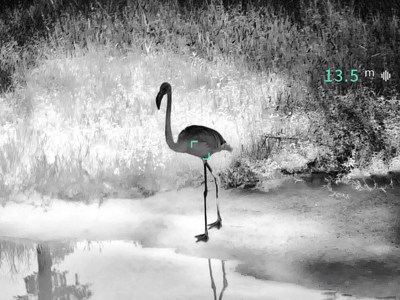

In the dark, laser ranging ensures accurate location with distance information.

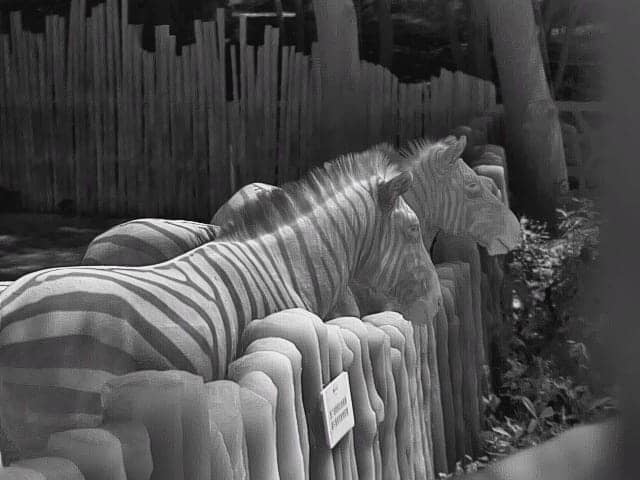

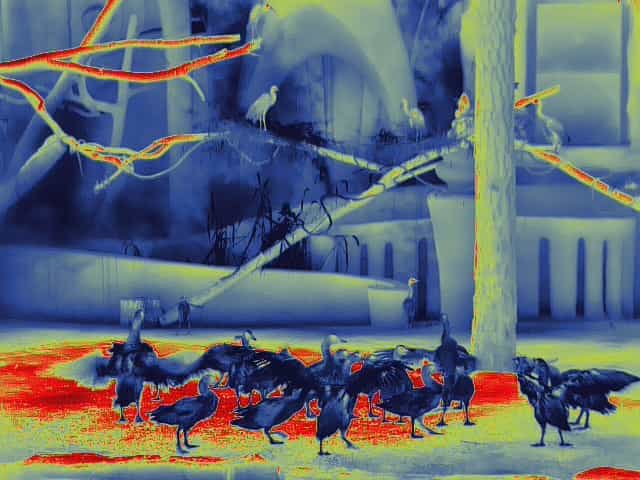

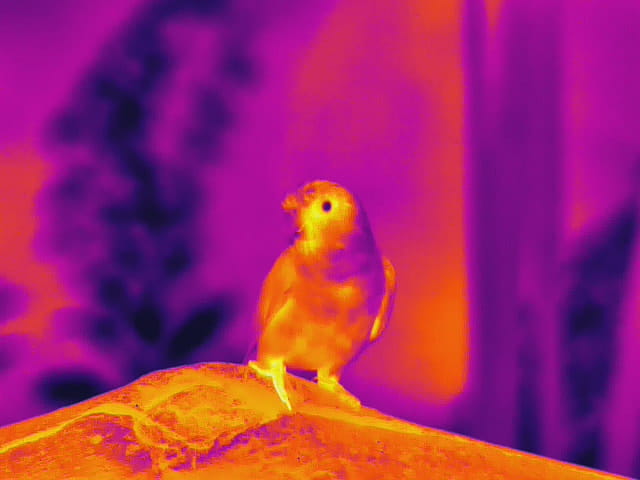

High Quality Imaging In Day and Night

Up to 640 x 480 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.

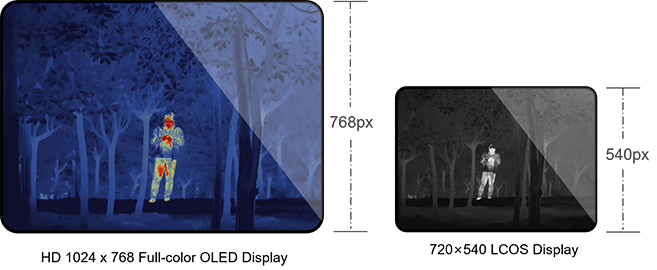

Full-color OLED display

1024 x 768 Full-color OLED, High contrast, image details boost, Improving viewing comfort.



Well-designed PIP mode, highlighting the target

PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor

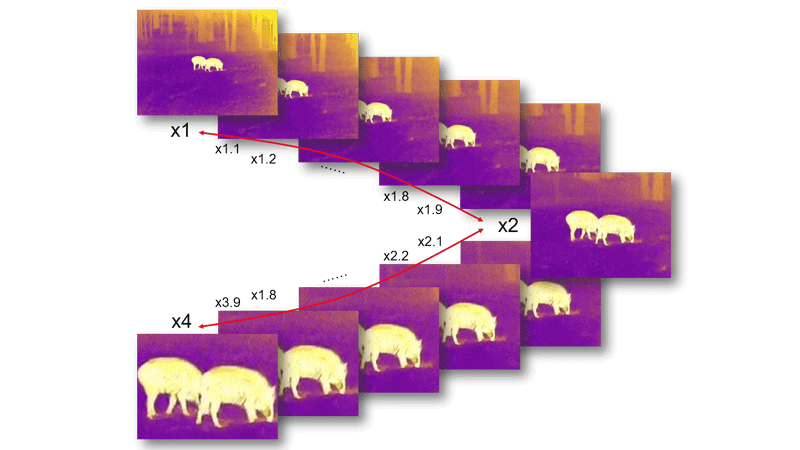

Smooth Zoom For Flexible Searching

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly

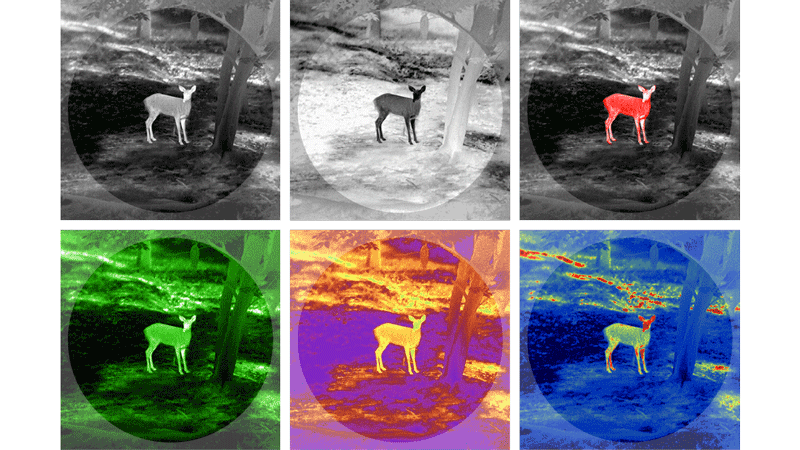

Multiple Color Palettes to Highlight the Target

• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.

• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

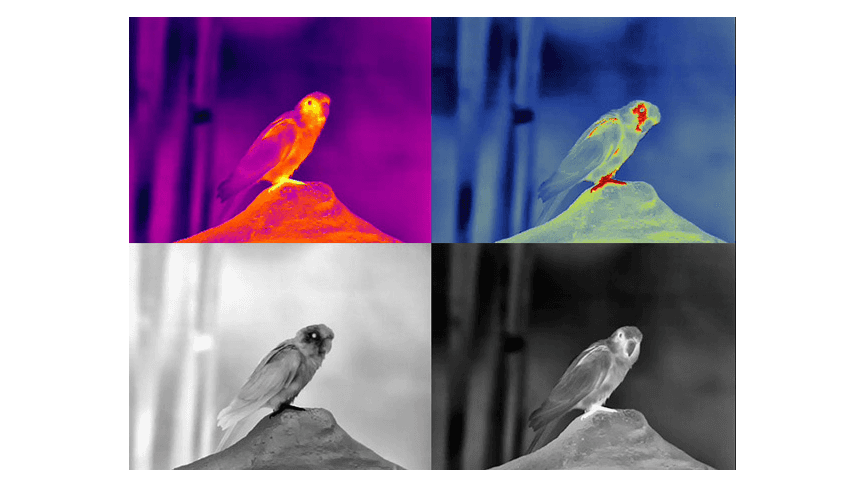

Multiple scene modes,Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively  reduce image impurities to highlight the target.



Photo and Video Recording

Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.


IP66, 1-meter Drop test

With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~55°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed

Guide TN650

Media Gallery





Technical Parameters

Model

TN650

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×480@12μm
NETD 30mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.2
Field of view 8.78°×6.59°
FOV m@100m 15×12
Magnification 2.8x~22.4x
Detection range 2600m/2800yd

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
