TN450
Handheld Thermal Binoculars
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
400×300IR resolution
50mm/F1.2Focal Length
≤30mKNETD
3.2X~12.8XMagnification
ADD TO COMPARE
-981.png)
-498.png)
-993.png)

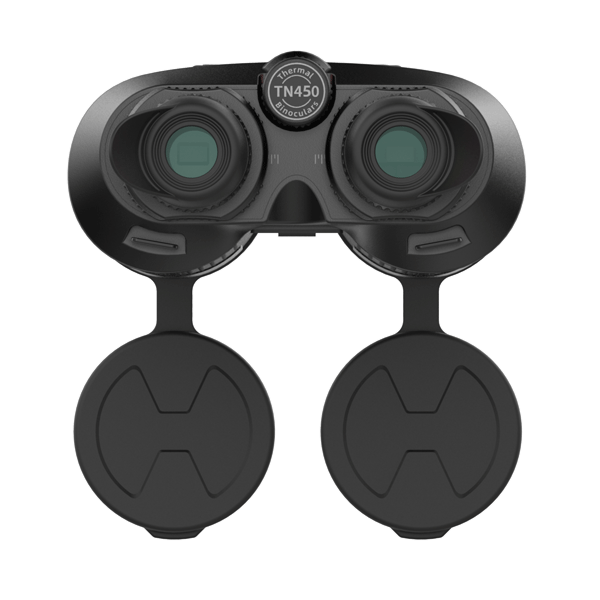

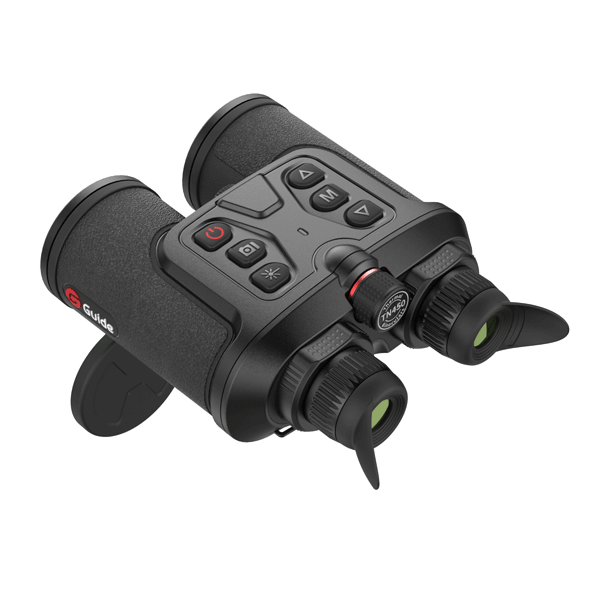

Ergonomic design Easy observation
Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.

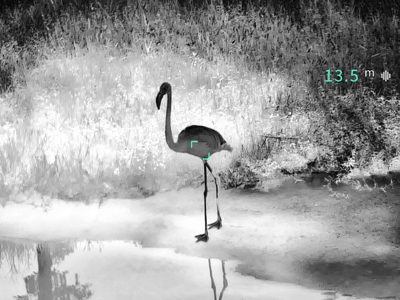

Quick location，All new experience
In the dark, laser ranging ensures accurate location with distance information

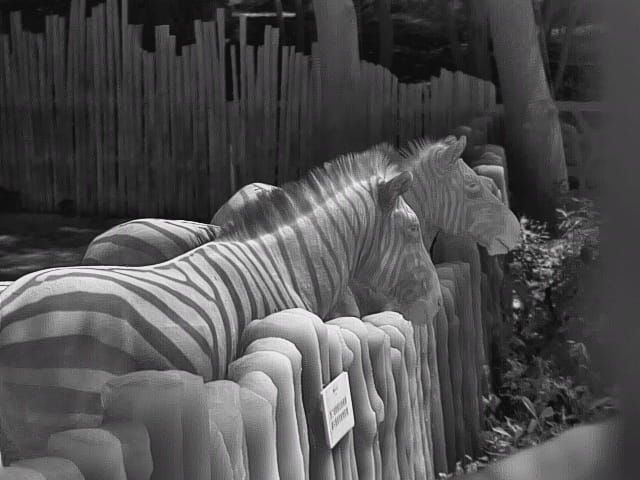

High Quality Imaging In Day and Night
400 × 300 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.
Full-color OLED display
1024 x 768 Full-color OLED, High contrast, image details boost, Improving viewing comfort.
Well-designed PIP mode, highlighting the target
PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor.
Smooth Zoom For Flexible Searching
Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly .

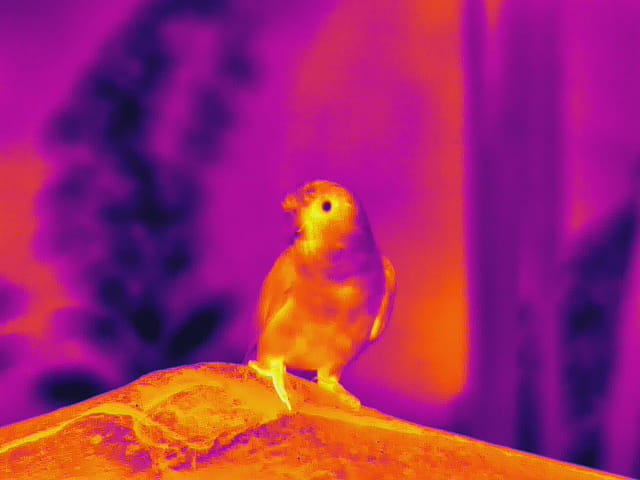

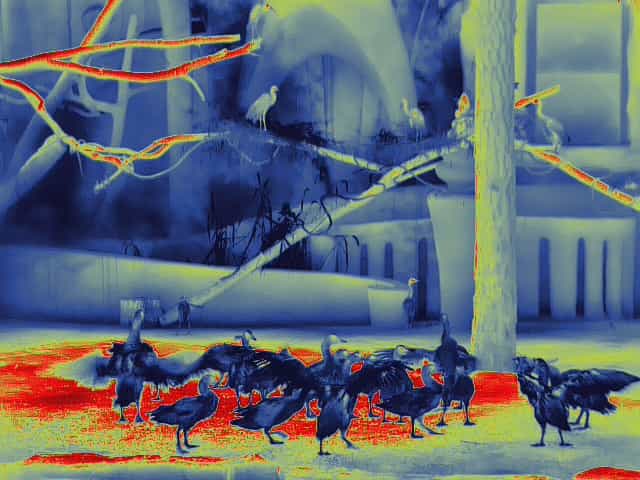

Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.
Multiple scene modes,Highlight Target Clearly
“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.
Photo and Video Recording
Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.
IP66, 1-meter Drop test
With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.
Applications
Media Gallery
Technical Parameters
Model
TN450
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@17μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.2 | |||
| Field of view | 7.78°×5.84° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 3.2x~12.8x | |||
| Detection range | 1800m/1950yd | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
