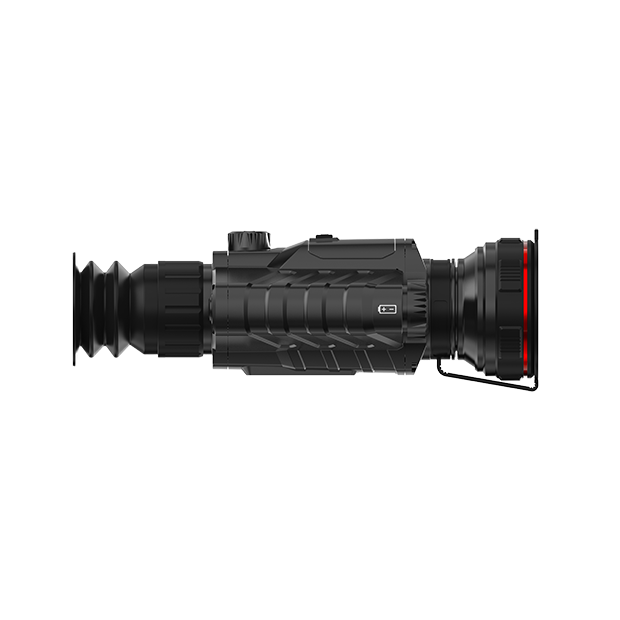

TR650

TR650

Thermal Imaging Scope

TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 640 × 512 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.

640×512IR resolution

50mm, F1.0Focal length

8.73°×6.60°FOV

1024×768AMOLED display

Guide TR650
Guide TR650 Thermal Scopes
Guide TR650 Thermal Scopes
Guide TR650 For Sale
Guide TR 650
Guide TR650 Thermal ScopesGuide TR650 Thermal Scopes3-584.jpg

High Definition Detector

TR Series uses high-quality 12µm thermal imaging detectors with 640×512 resolution and 20mK NETD to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.


Full-color HD AMOLED Display

The full-color 0.39-inch HD AMOLED display with 1024×768 pixels delivers sharp, richly contrasted, and vivid images that capture every moment in perfect detail.


Quick-release scope mount for tool-free mounting

Simply mount the device onto the quick-release scope mount, then tighten the locking lever, and the TR Series can be easily and securely mounted without any other tools.


Ballistic Calculation

Connect the device to TargetIR Ballistics APP (Android or iOS) to set bullet and weather parameters, then transmit the data to the device for ballistic calculation, and achieve high-precision shooting easily.


Capturing photos and videos with audio

The photo and video function allow users to capture and share wonderful moments anytime, and integrates a built-in microphone for recording sound.


One-touch Freeze

Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.


External Laser Range Finder

With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.


Seven Color Palettes

The 7 color palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, Blue Hot and Sepia help increase chances for recognition and identification.


IP67 Protection Rating

With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.


OTA Upgrade

Support device firmware updates by connecting TargetIR for high efficiency.


Media Gallery




Technical Parameters

Model

TR650

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 2.9x~23.2x
Detection range 2600m/2800yd

* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
