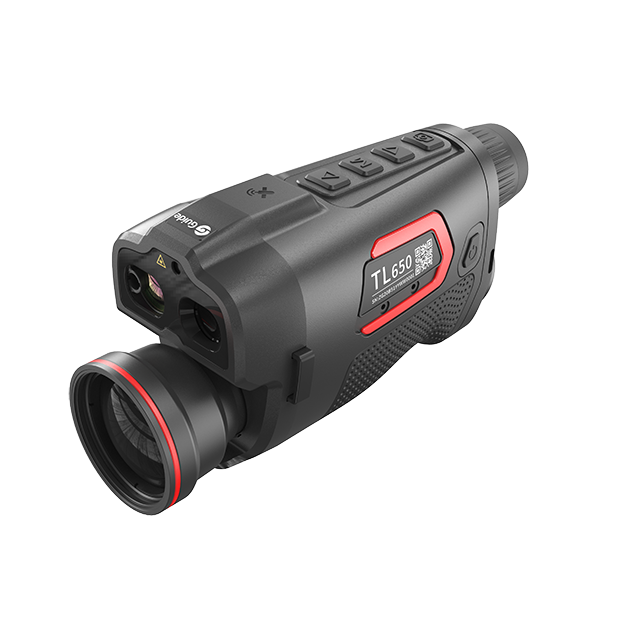

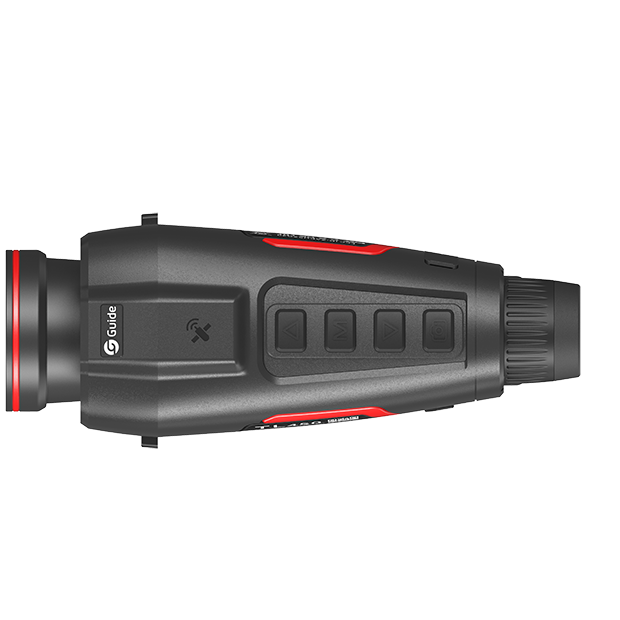

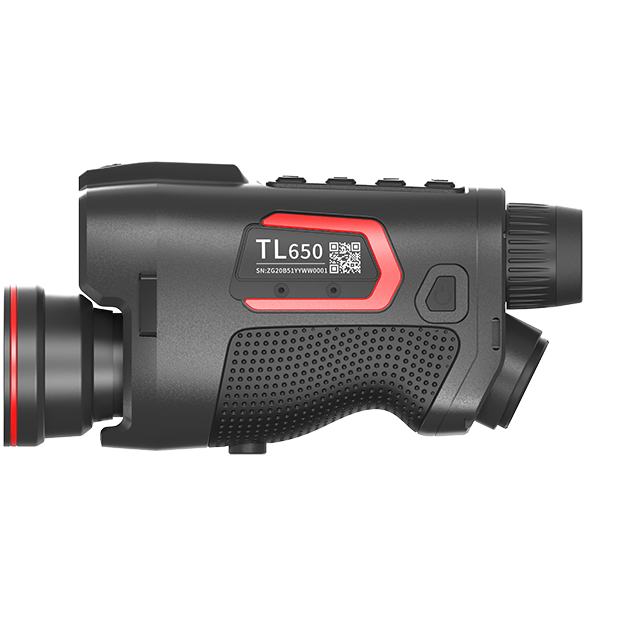

TL650
Multispectral Fusion Thermal Monocular
The TL Series is the first multispectral fusion thermal monocular of Guide Sensmart whose all-in-one design meets the needs of all-day and all-weather observation. Equipped with a 12μm high-end thermal sensor, 1920×1080 CMOS sensor and 1920×1080 AMOLED display, the TL Series offers significantly sharp and richly contrasted images with an integrated laser rangefinder with up to 600m accurate ranging. Integrated with a built-in GPS, laser rangefinder, and gyroscope, target latitude and longitude, target distance, and device angle information can be obtained for quick aiming.
Day & Night UseThermal+Digital
640×480@12μmIR Resolution
1920×1080 AMOLED Display
GPS Target Positioning
ADD TO COMPARE
All-in-one Design for All-day and All-weather Observation
With integrated thermal and night vision, considering both the daytime and the nighttime, for quick search and target identification.
Integrated HD Thermal Detector and Digital Sensor

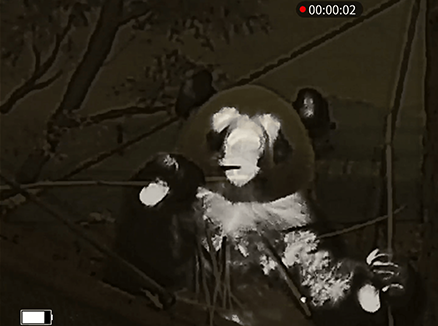

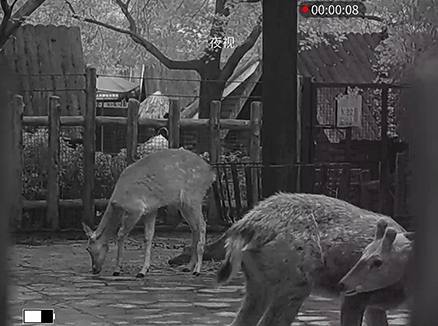

High-quality thermal imaging and night vision with clear distinctions allow for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape, day and night.
.jpg)
1920×1080 AMOLED Display
High resolution 0.39'' 1920×1080 AMOLED is capable of lower power consumption, wider viewing angle, and richer color, providing a better observation details.
Built-in Precision Laser Rangefinder
The integrated high-precision laser range module can achieve 600m accurate laser ranging, allowing for the precise distance information of targets without calibration.
Built-in GPS for Target Positioning
GPS systems display the target latitude and longitude for accurate positioning, essential for hunters in navigation, safety, mapping, game tracking, and providing valuable environmental information. Integrated with a built-in laser rangefinder and gyroscope, target distance and device angle information can be obtained for quick aiming.
Combined Multispectral Viewing Modes

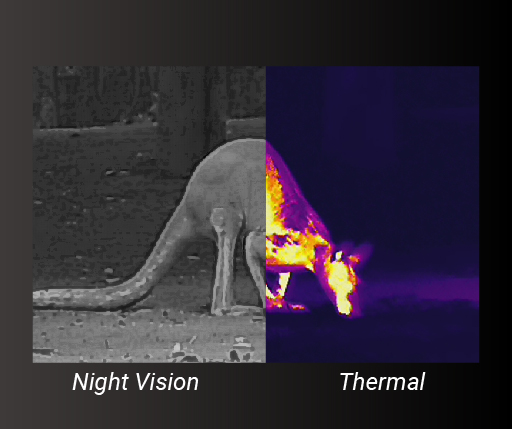

You can use the TL Series in several distinct image modes including a conventional thermal monocular with the choice of 5 color palettes, a highly detailed daylight & night vision optical camera, or the unique Fusion mode which adds the detail from the optical image to boost the performance of the thermal channel, delivering the ultimate in detection and detail.
Applications
Media Gallery
Technical Parameters
Model
TL650
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS | |||
| Resolution | Thermal: 640×480@12μm Digital: 1920×1080@4μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | Thermal: 50mm, F1.2; Digital: 17mm, F1.4 | |||
| Field of view | 8.7°×6.6° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.0x~16.0x | |||
| Detection range | 2600m/2800yd | |||
* Product performance is based on testing in a controlled laboratory environment. Your test results may vary due to several external and environmental factors. All specifications are subject to the actual product. The manufacturer reserves the right to modify technical specifications without notice or liability to you.
