GUIDE C400M IR Fever Warning System
GUIDE C400M IR Fever Warning System
Won IF Design Award
Application field: ThermographyInspection and quarantine
GUIDE C400M IR Fever Warning System can help to detect virus related fevers fast, smartly, and safely, which are widely used at airports, railway stations, metro stations, factories, schools and other gathering public places. GUIDE C400M integrates various technologies such as infrared thermography, HD visual camera, high-end image processing, intelligent warning, screen display, and wireless remote control to ensure the human temperature screening more simple, efficient and accurate.
  • Provide fast temperature screening for a group of people in real-time

  • Support automatic warning while detecting fever people

  • Support automatic temp calibration and warning pre-value setting

  • Rotatable design to achieve all around monitoring

  • Optional tripod, 24 - inch monitor, support projection function, wireless control

  • Handheld-type, easy to deploy and take

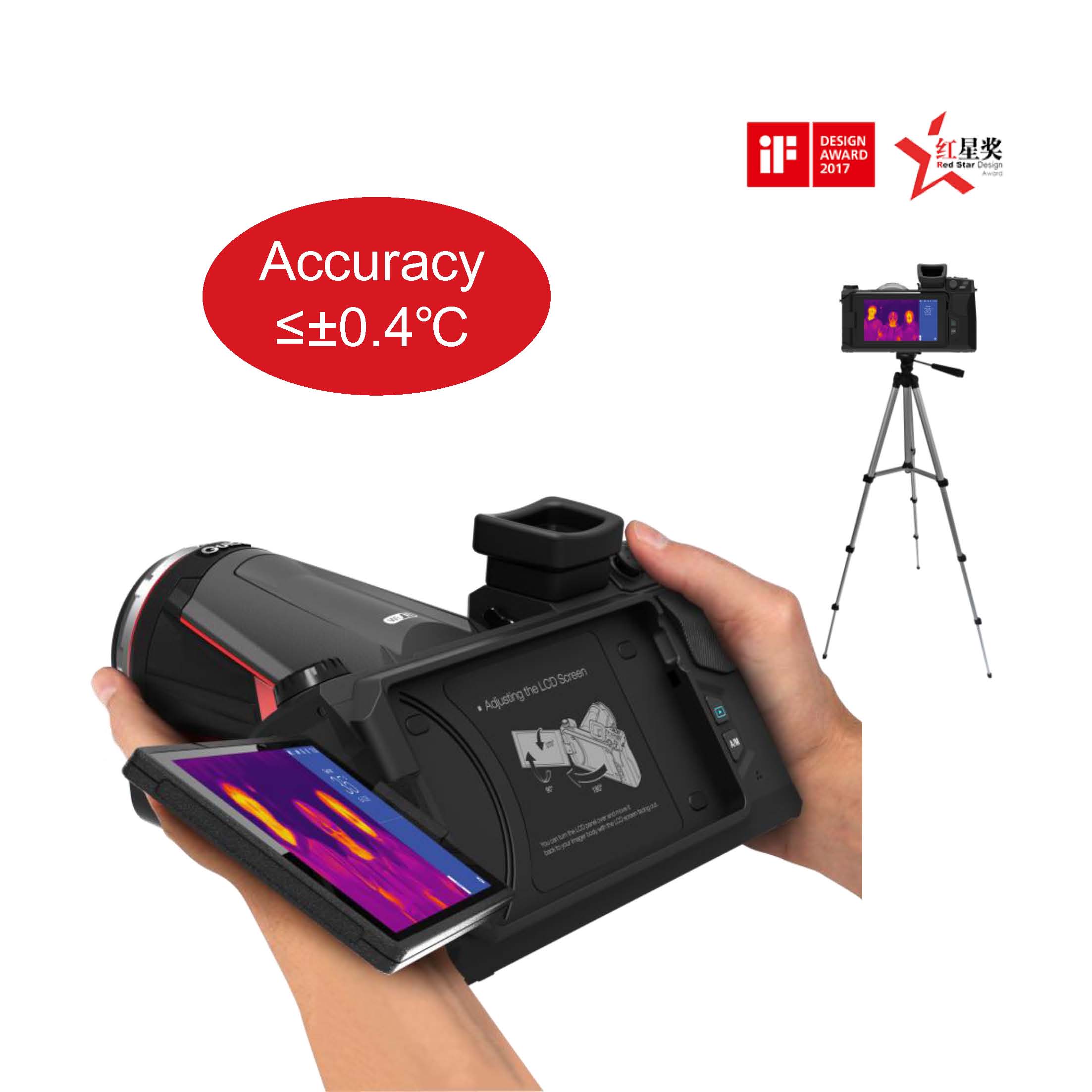

GUIDE C400M IR Fever Warning System.jpg

C400M

Item

Specification

IR   detector

IR   resolution

384×288

Detector   type

VOx/25μm/7.5~14μm

Frame   rate

25Hz/9Hz

NETD

40mk

Focal   length

25mm/F1.0

Field of view(FOV)

21.7°×16.4°

Spatial resolution(IFOV)

0.99mrad

Min   focus distance

0.4m

Focus

Electric,   Automatic

Image   Presentation

LCD   Display

5",1280×720   High Light Touch Screen

Viewfinder

1280×960   LCOS Screen

Brightness   contrast

Automatic,   Manual, Fixed

Image   mode

IR   image, Visual image, PIP, MIF

Color   palette

8

Digital   zoom

1.1~4x

Temperauture   Measurement

Measurement   Range

20℃~60℃

Accurancy

≤±0.4℃ (target temperature 32℃~38℃)

Spot/Line/Area

5   spots, 5 lines, 5 Areas

Analysis   Info Storage

Saved   with image (spot,line,areas)

Automatic   Tracking

Either   max. or min.

Isotherm

Upward,   downward

Warning

Support   image and voice warning

Storage

Image   Format

Full Radiometric (JPG)

Image   Internal Storage

Built-in   16G, SD card 16G (maximum support 32G)

Report   Creation

PDF   format, support print by connecting Wifi

Video   Format

H.264(with   temperature information)

Video   Storage

Manual

Other

Hardware

Visual   camera of 5 million pixels, Illuminator, laser, Wi-Fi, Microphone(Volume   adjustable), Speaker(Volume adjustable), Digital compass, GPS, Light sensor

Interface

Micro   USB 2.0,SD card,Gigabit Ethernet,Tripod,Mini HDMI

Battery

Rechargeable   Li-ion Battery(Certified to UN38.3), battery time>4 hours, support   Sleeping mode

Working   Temperature

15°C~35°C

Storage   Temperature

﹣40°C~70°C

Encapsulation

IP54

Weight

1350g

Size

206mm×145mm×135mm

Standard   Accessories

Li-ion   battery,Power supply adapter, Adapter plug (5 pcs), Shoulder strap,USB cable,   HDMI cable, Network cable, Quick Start
    Guide, User Manual, Data Download Card, SD card(16G), Hard transport case

Optional   Accessories

Tripod,   wireless mouse & keyboard & Micro USB OTG cable, 24 inch monitor   (HDMI interface) & changeover plug., Li-ion battery, Pouch, Battery   charger, Bluetooth earphone, Extended lens, Lens bag

*Note: The temperature measurement accuracy is a typical value under the specified mode and application conditions.

The final interpretation right belongs to our company.
