GUIDE M400A IR Fever Warning Systems
GUIDE M400A IR Fever Warning Systems
Application field: ThermographyInspection and quarantineMedical Diagnosis

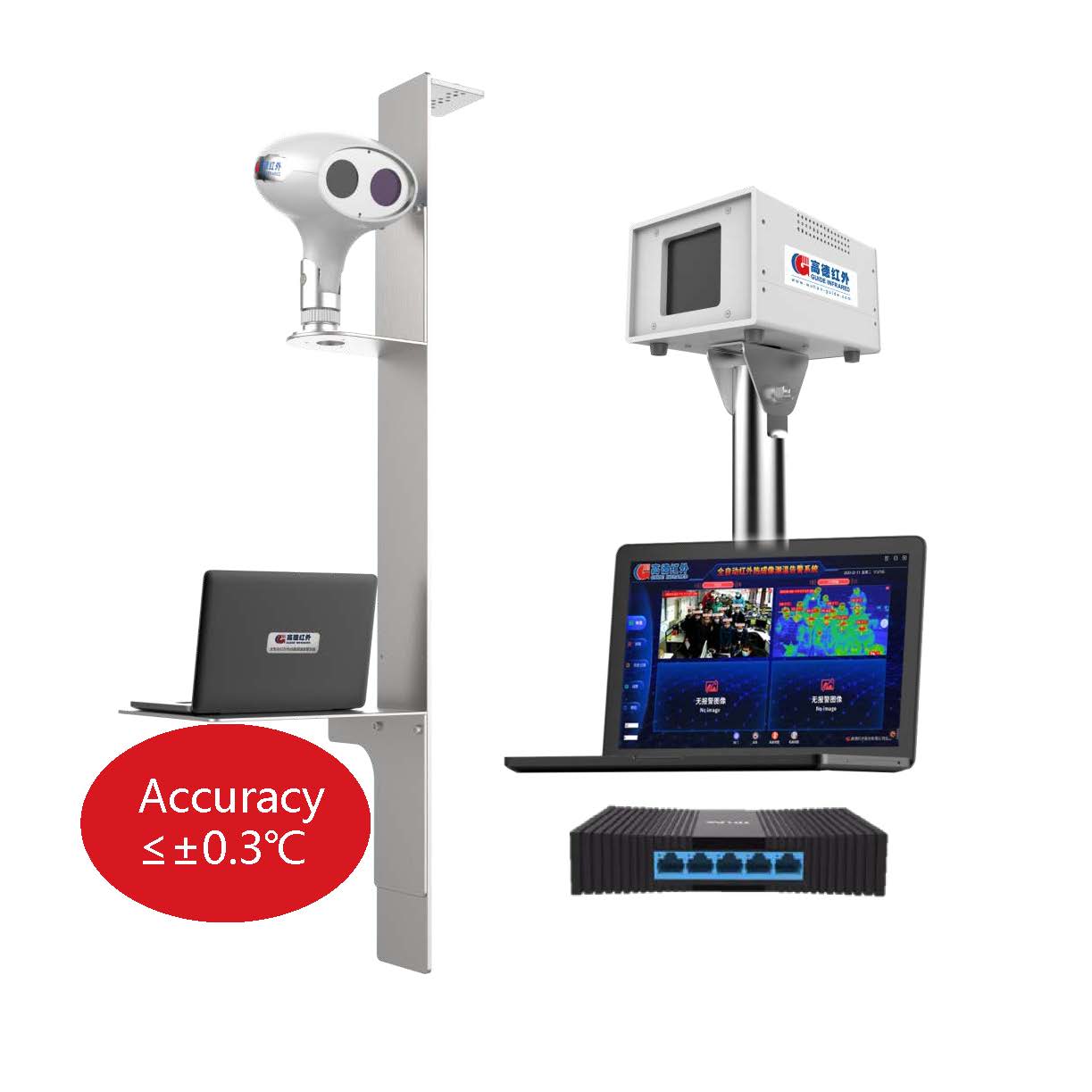

GUIDE M400A IR Fever Warning Systems can be applied for large-scale body temperature monitoring in crowded public places, such as rapid detection of human fever caused by Novel Coronavirus, SARS, Zika, Ebola. GUIDE M400A adopts a hanging-type design, which is flexible and convenient to operate, stable and reliable. Multiple warning settings can realize multi-point warnings and tracking to ensure no missing warning.


M400A
CategoryItemSpecification
IR detectorIR resolution400*300
Pixel size17μm
Focal Length9.7mm
FOV38°*28°
Frame Rate25Hz
Visible CameraResolution2 million pixels
Frame Rate25Hz
Temperature MeasurementRange-10~50
Accuracy ± 0.3 (ambient temperature 16 ~ 32 )
CalibrationBuilt-in and external black body, auto calibration
Software functionsParameter settingsAlarm threshold setting
Face recognitionIntelligent face recognition
Temperature measurementFace recognition area shows the highest temperature, infrared /   visible light image temperature cursor overlay
Alarmautomatic photo storage while alarm, support image / sound alarm
Historical recordSupport historical alarm image information query
Temperature correctionAutomatic correction of body surface temperature
Mechanical interfaceinterface of camera head and host Two-way network interfaces RJ45, one-way power interface
PowerVoltageAC220V50Hz
Power300W
Environmental adaptabilityWork Temperature-10 ~ 50   (suggested ambient temperature 16 ~ 32 )
Storage Temperature-20 ~ 60
Work Humidity<90% (non-condensing)
Shock30g 11msIEC60068-2-27
Vibration10HZ~150Hz~10Hz 0.15mmIEC60068-2-6
Black bodyBlackbody target surface uniformity0.1
Temperature stability accuracy ± 0.2 (single point)
PackageCamera head size50kg (subject   to actual delivery)
