Handheld Thermal Imaging Monocular
Handheld Thermal Imaging Monocular
Handheld Thermal Imaging Monocular
Application field: Personal Vision SystemOutdoor recreation
TrackIR series is Guide’s new launched handheld thermal imaging monocular designed for professional hunters which include 3 optional lenses (25mm/35mm/50mm). With 400x300 IR sensor and 1280x960 HD display, it provides adaptable and excellent thermal imaging in any conditions. Support smooth zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions. At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance. It also supports connecting accessories to realize more functions.

TrackIR Handheld Thermal Imaging Monocular (1).JPG

TrackIR Handheld Thermal Imaging Monocular (2).JPG

TrackIR Handheld Thermal Imaging Monocular (3).JPG

TrackIR Handheld Thermal Imaging Monocular (4).JPG

TrackIR Handheld Thermal Imaging Monocular (5).JPG

TrackIR Handheld Thermal Imaging Monocular (6).JPG

TrackIR Handheld Thermal Imaging Monocular (7).JPG

TrackIR Handheld Thermal Imaging Monocular (8).JPG

TrackIR Handheld Thermal Imaging Monocular (9).JPG

TrackIR Handheld Thermal Imaging Monocular (10).JPG

TrackIR Handheld Thermal Imaging Monocular (11).JPG

<p    TrackIR Handheld Thermal Imaging Monocular (12).JPG

TrackIR Handheld Thermal Imaging Monocular (13).JPG

TrackIR Handheld Thermal Imaging Monocular (14).JPG

TrackIR Handheld Thermal Imaging Monocular (15).JPG

TrackIR Handheld Thermal Imaging Monocular (16).JPG



TrackIR 25mmTrackIR 30mmTrackIR 50mm
Detector
Detector Type 400×300   @17μm
Spectral Range8μm~14μm
NETD≤50mk @F1.0
Lens
Focal Length25mm/F1.135mm/F1.250mm/F1.2
FocusingManual Focus
Field of view15.4°×11.6°11.1°×8.3°7.8°×5.8°
Imaging
Frame Rate50Hz
Digital Zoom1X~4X
Color PalettesWhite Hot, Black Hot, Red Hot 1, Red  Hot 2, Red Hot 3
Functions
Main FunctionsSmooth zoom,    brightness and contrast of image are adjustable(10 levels),  image enhancement, super power-save mode,   photo and recording, WIFI, hotspot tracking, stadiametric rangefinder, auto   power-off, auto sleep, time setting, watermark setting, restore default   value, external rangefinder
Scenes ModesForest, Desert, City, Snow and Default (indoor)
Compensation ModesAuto/Shutter/Scene
Cross cursorRed,/yellow/green, the coordinates of the cross   cursor is adjustable
Picture-in-picturePicture-in-picture zoom according to cross   cursor or center
Memory Card16 Gb
Power Supply
Battery TypeInternal Li-ion battery (2x18650,  6000mAh)
Battery Life≥5h
AdapterStandard USB Power Adapter 5VDCMax. 10W
Interface
USBTYPE C (USB 2.0 standard ) , for Power In,/   File Transfer
WIFISupport WiFi , real-time video transfer
External ConnectionExternal Connection by a Picatinny rail
Display
Display   Resolution1280×960 , 0.4 inchColorful LCOS Display
(Feel like watching 22.1 inch   screen at 1 meter)
EyepieceMonocularExit pupil10mm,   Adjustable diopter-4~2
Eyepiece magnification13.8
Magnification1.652.33.3
Video OutputHDMI
Environmental Characteristics
Operating Temperature-10℃50℃
Storage Temperature-30℃60℃
Shock30G, 11ms Half-sine IEC60068-2-27
Vibration10Hz~150Hz~10Hz 0.15mm IEC60068-2-6
Degree of ProtectionIP66,1m drop testing
CertificateUN38.3 (Battery certificate)RoHSCEFCCPCT
Weight & Dimensions
Weight470g485g535g
Dimensions192mm×65mm×71mm214mm×65mm×71mm
Package Contents
StandardThermal imager / power adapter / USB cable /   Micro HDMI cable / lens cover / wrist strap / lining package / quick manual
Optional External Picatinny rail / external screen and   etc…
Detection Range
Human1.8m×0.5m700m1000m1400m
Vehicle2.3m×2.3m1700m2400m3000m
Recognition Range
Human1.8m×0.5m350m500m700m
Vehicle2.3m×2.3m700m1000m1400m

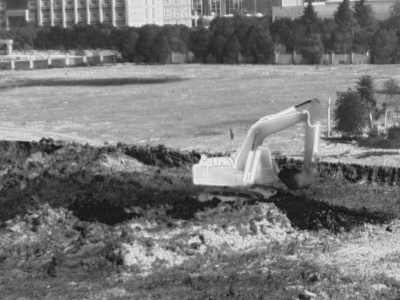

TrackIR实拍
TrackIR实拍
